2007 Suzuki LTF250 CAM Shaft/valve Diagram

← All diagrams

Find the part on the CAM Shaft/valve diagram for your 2007 Suzuki LTF250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

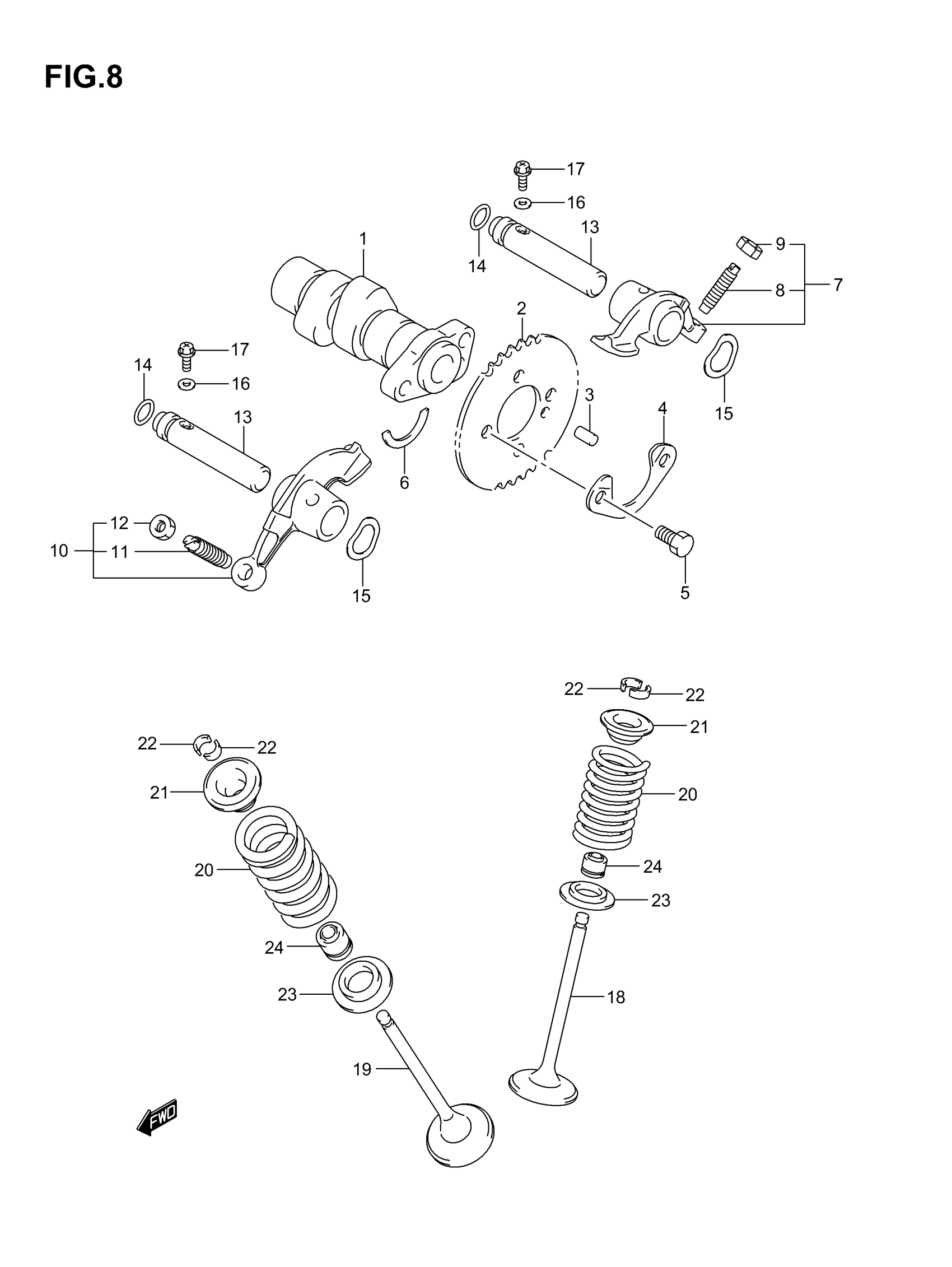

2007 Suzuki LTF250 CAM Shaft/valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM SHAFT

12711-18A00

1
Out of stock

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

1
Out of stock

3

PIN

09261-05005

1
Out of stock

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

1
Out of stock

5

BOLT (6X10.5)

09111-06032

2
Out of stock

6

C-RING

09390-22002

1
Out of stock

7

ARM ASSY, VALVE ROCKER | Includes Item(s) 8 - 9

12850-25C00

1
Out of stock

8

.SCREW, TAPPET ADJUSTING

12842-32411

1
Out of stock

9

.NUT, ADJUSTING SCREW

12843-32400

1
Out of stock

10

ARM ASSY, VALVE ROCKER | Includes Item(s) 11 - 12

12850-25C00

1
Out of stock

11

.SCREW, TAPPET ADJUSTING

12842-32411

1
Out of stock

12

.NUT, ADJUSTING SCREW

12843-32400

1
Out of stock

13

SHAFT, VALVE ROCKER ARM

12861-05201

2
Out of stock

14

.O RING (D:1.9,ID:8.6)

09280-09005

2
Out of stock

15

WASHER

09164-12021

2
Out of stock

16

GASKET

09168-06023

2
Out of stock

17

SCREW This part replaces 02162-06253.

02162-0625A

2
Out of stock

18

VALVE, INTAKE

12911-05G00

1
Out of stock

19

VALVE, EXHAUST

12912-18A00

1
Out of stock

20

SPRING, VALVE

12921-21G00

2
Out of stock

21

RETAINER, SPRING This part replaces 12931-19B00.

12931-19B01

2
Out of stock

22

COTTER, VALVE

12932-24400

4
Out of stock

23

SEAT, SPRING

12933-19B00

2
Out of stock

24

OIL SEAL (5.5X11X8.2)

09289-05015

2
Out of stock
