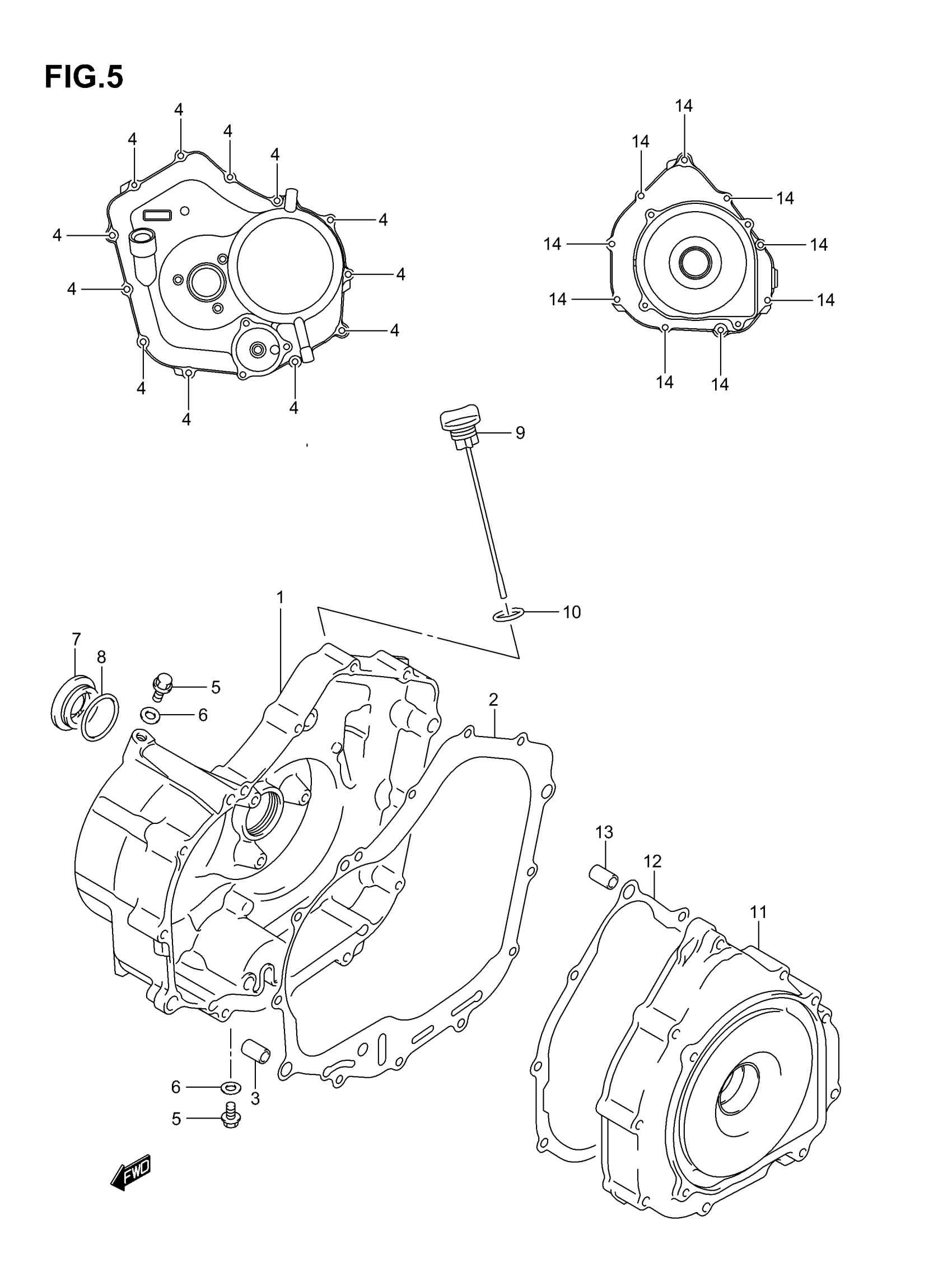

Suzuki LTF250 (2007) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-05G01

Unavailable

2

GASKET, CLUTCH COVER

11482-05G01

$13.05

3

PIN

04211-11189

$1.80

4

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

5

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

6

GASKET

09168-06018

$1.70

7

CAP, CLUTCH ADJUST

09259-36021

$12.45

8

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

9

GAUGE, OIL LEVEL

11971-05G00

$8.99

10

O RING

09280-17003

$1.64

11

COVER, MAGNETO

11351-05G00

Unavailable

12

GASKET, MAGNETO COVER

11483-05G00

$8.21

13

PIN (10.4X13X18)

04211-11189

$1.80

14

BOLT This part replaces 01547-06403.

01547-0640B

$2.74
