1987 Suzuki LTF230 Oil Pump-Fuel Pump Diagram

← All diagrams

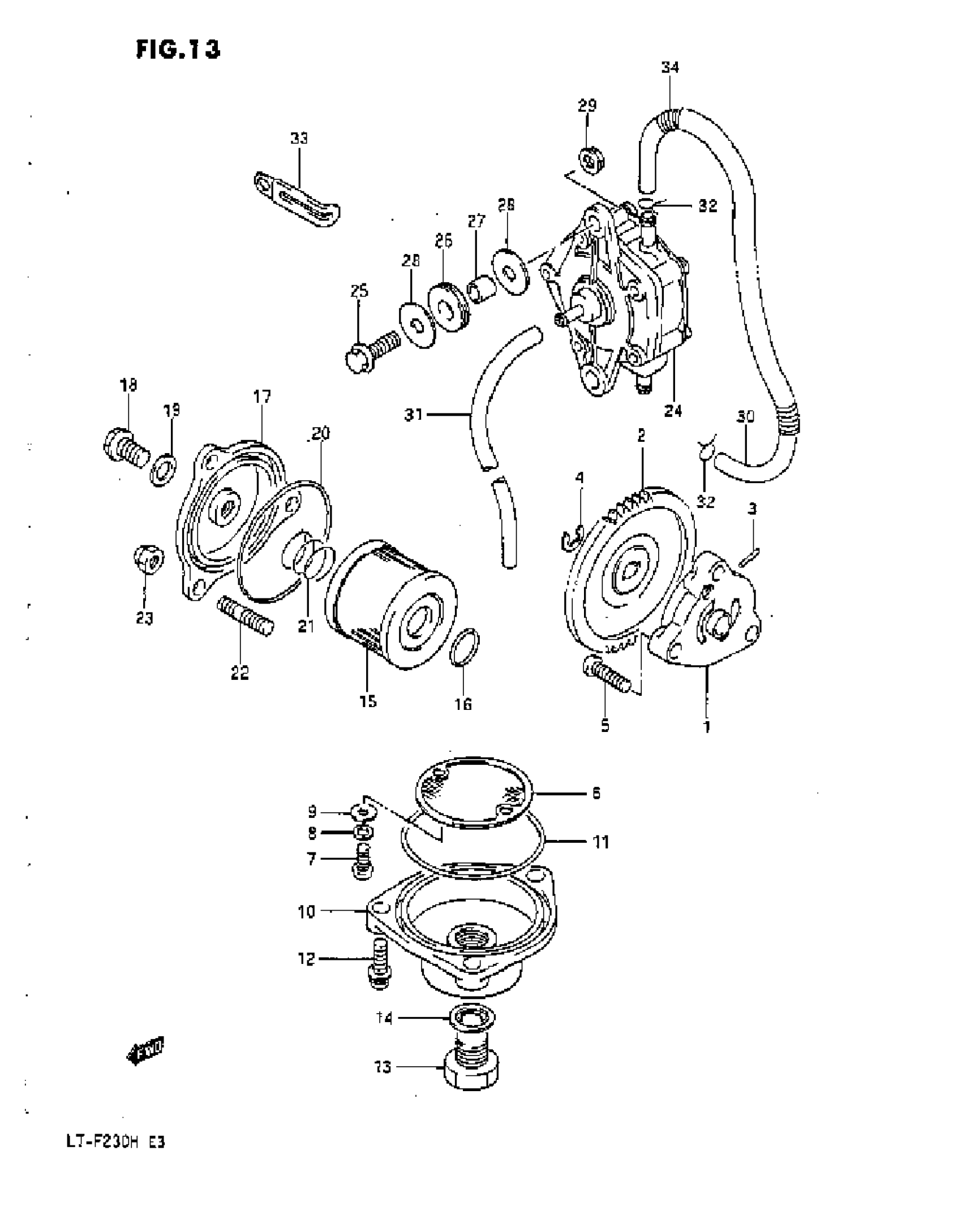

Find the part on the Oil Pump-Fuel Pump diagram for your 1987 Suzuki LTF230, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki LTF230 Oil Pump-Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$176.20

In stock

3

PIN

09261-02008

1

$1.77

In stock

4

1

$1.52

In stock

5

3

$2.22

In stock

6

STRAINER, ENGINE OIL

16520-05202

1

$5.95

In stock

7

2

$1.55

In stock

8

LOCK WASHER This part replaces 08321-21056.

08321-0105A

2
Out of stock

9

2

$1.97

In stock

10

CAP, OIL STRAINER

16523-18A00

1
Out of stock

11

1

$3.08

In stock

12

BOLT

01547-06207

3
Out of stock

13

1

$2.92

In stock

14

GASKET

09168-12002

1
Out of stock

16

O-RING (0:1.9, ID:13)

09280-13004

1
Out of stock

17

1

$26.24

In stock

18

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

1
Out of stock

19

GASKET

09168-08015

1

$2.92

In stock

20

O-RING (D:2.4, ID:52.6)

09280-54001

1
Out of stock

21

SPRING

09440-18002

1
Out of stock

22

3

$2.05

In stock

23

3

$1.97

In stock

24

1

$88.22

In stock

25

BOLT This part replaces 01517-06258.

01550-06257

2
Out of stock

26

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

27

SPACER (6.1X9X7.5)

09180-06038

2

$2.16

In stock

28

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

4
Out of stock

29

2

$2.18

In stock

30

1

$8.88

In stock

31

1

$7.25

In stock

32

CLIP

09401-10401

2

$1.55

In stock

33

1

$1.89

In stock

34

1

$13.76

In stock
