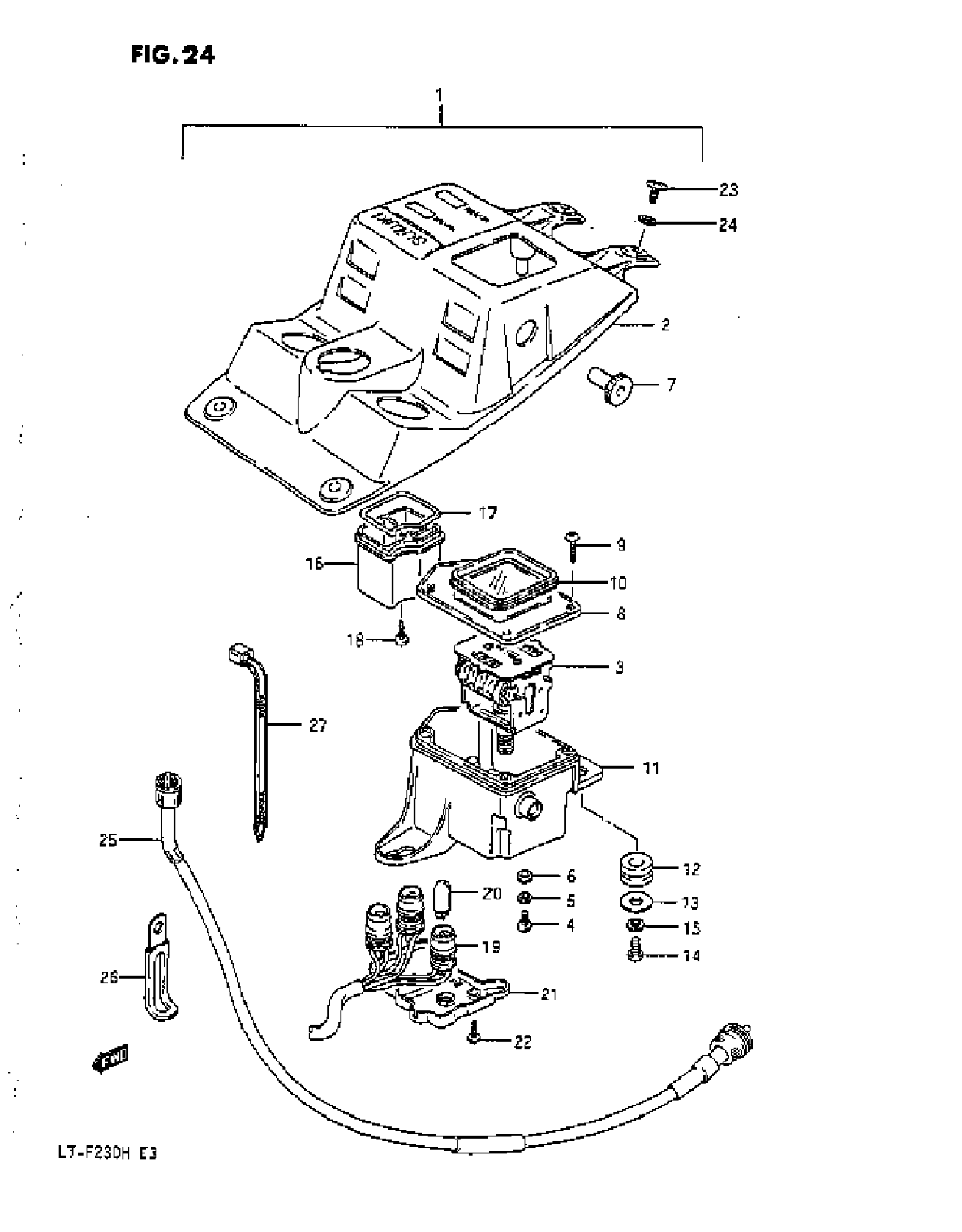

Suzuki LTF230 (1987) ODOMETER Diagram

#

Description
Price

1

ODOMETER ASS'Y (MILE)

34720-18A10

Unavailable

2

HOOD, ODOMETER

34722-18A00

Unavailable

3

ODOMETER

34721-18A10

Unavailable

4

SCREW

02112-04087

$1.49

5

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

6

WASHER This part replaces 08322-21047.

08322-01047

$1.86

7

KNOB, TRIP

34124-18A00

Unavailable

8

LENS, ODOMETER

34724-18A00

Unavailable

9

SCREW (3X16) This part replaces 34744-18A00.

09132-03008

$1.53

10

CUSHION

34726-18A00

Unavailable

11

CASE, ODOMETER

34723-18A00

Unavailable

12

CUSHION

34189-45410

Unavailable

13

WASHER (4.5X16X1.2) This part replaces 34129-18A00.

09160-04026

$2.05

14

SCREW This part replaces 02112-04108.

02112-04107

$1.55

15

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

16

CASE, PILOT LAMP

34127-18A00

Unavailable

17

GASKET

34128-18A00

Unavailable

18

SCREW (3X16) This part replaces 34744-18A00.

09132-03008

$1.53

19

SOCKET

34170-18A00

Unavailable

20

BULB (12V, 3.4W)

09471-12028

$1.99

21

COVER SOCKET

34743-18A00

Unavailable

22

SCREW

02142-03126

Unavailable

23

SCREW This part replaces 02112-04167.

02112-0416A

$1.49

24

WASHER This part replaces 08322-21047.

08322-01047

$1.86

25

CABLE ASS'Y, ODOMETER

34910-18B00

Unavailable

26

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

27

CLAMP (L:165)

09407-18402

$2.19
