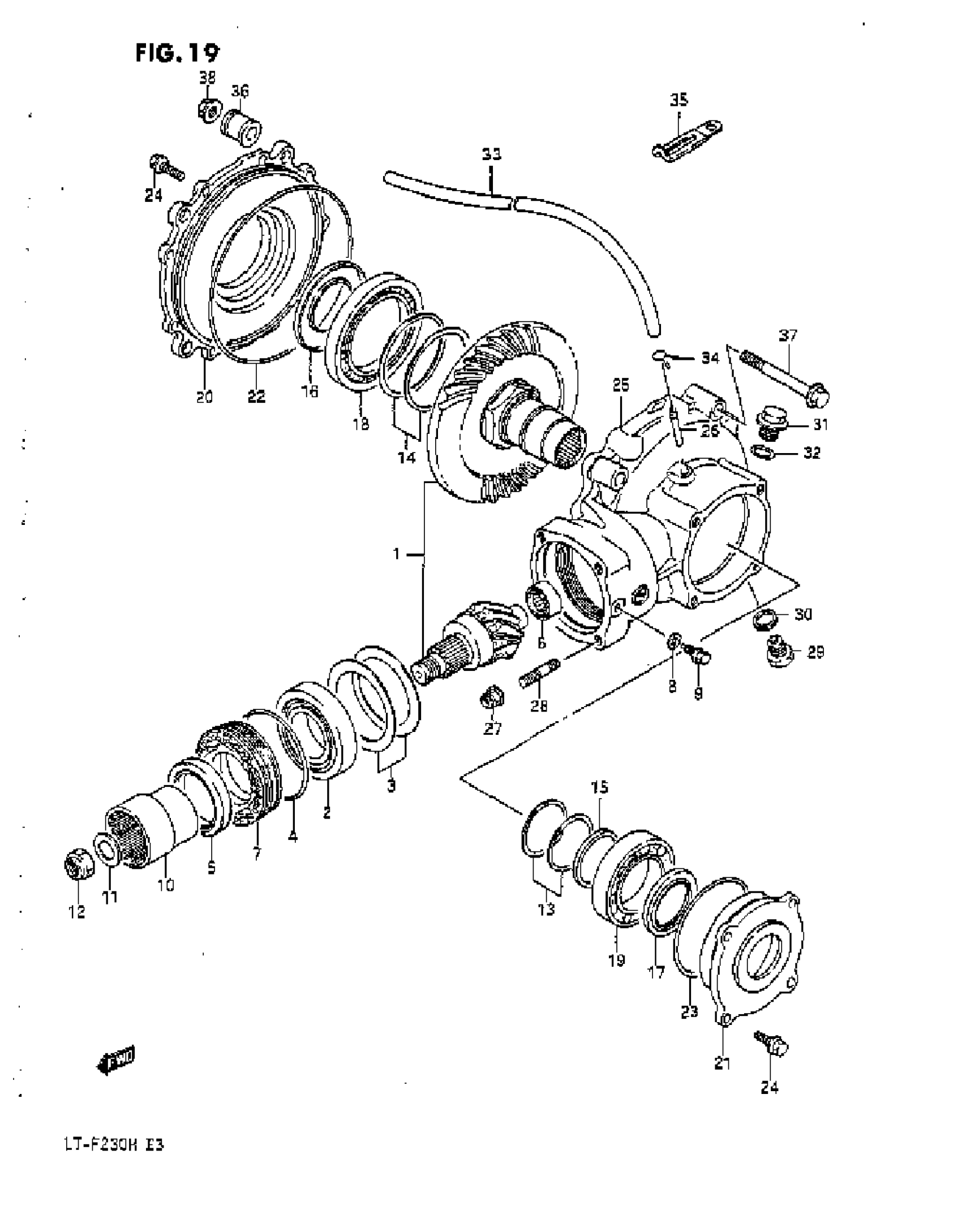

Suzuki LTF230 (1987) FINAL DRIVE Diagram

#

Description
Price

1

GEAR SET, FINAL BEVEL | NT:36/10 This part replaces 27300-18830.

27300-18840

Unavailable

2

BEARING, FINAL DRIVE GR This part replaces 09262-40005.

27446-44D00

Unavailable

3

SHIM (T:0.3) | 0-2, UN

27445-18B00-030

Unavailable

3

SHIM (T:0.35) | 0-2, UN

27445-18B00-035

Unavailable

3

SHIM (T:0.4) | 0-2, UN

27445-18B00-040

Unavailable

3

SHIM (T:0.5) | 0-2, UN

27445-18B00-050

Unavailable

3

SHIM (T:0.6) | 0-2, UN

27445-18B00-060

Unavailable

4

O-RING (D:2.4, ID:79.8)

09280-80001

$3.89

5

OIL SEAL (47.5X68X7)

09283-49001

Unavailable

6

BEARING (20X34X18)

09263-20062

$46.98

7

STOPPER

27312-18B00

Unavailable

8

GASKET

09168-06023

$2.35

9

PIN

27313-18A00

$4.00

10

COUPLING,FINAL This part replaces 27172-18B00.

27172-18B01

Unavailable

11

WASHER (16X29X4)

09160-16029

$6.35

12

NUT

09159-16003

$4.00

13

SHIM (T:0.3) | 0-2, UN

27326-18A00-030

Unavailable

13

SHIM (T:0.35) | 0-2, UN

27326-18A00-035

Unavailable

13

SHIM (T:0.4) | 0-2, UN

27326-18A00-040

Unavailable

13

SHIM (T:0.5) | 0-2, UN

27326-18A00-050

Unavailable

13

SHIM (T:0.6) | 0-2, UN

27326-18A00-060

Unavailable

14

SHIM (T:0.35) | 0-2, UN

27327-34200

Unavailable

14

SHIM (T:0.4) | 0-2, UN

27327-34210

Unavailable

14

SHIM (T:0.5) | 0-2, UN

27327-34220

Unavailable

14

SHIM (T:0.6) | 0-2, UN

27327-34230

Unavailable

15

WASHER (45X54X3)

09160-45004

Unavailable

16

OIL SEAL (48X88X7)

09283-48011

$22.92

17

OIL SEAL, FINAL DRIVEN RH This part replaces 09283-42013.

09283-42011

$12.61

18

BEARING (70X110X13)

09262-70001

$140.93

19

BEARING

08113-62090

$59.62

20

CASE, FINAL DRIVEN BEARING, R

27461-18B00

Unavailable

21

CASE, FINAL DRIVEN BEARING, L

27462-18B00

Unavailable

22

O-RING (D:3.6, ID:176.8) REMARKS

09280-00020

$24.42

23

O RING, BEARING CASE,LH This part replaces 09280-92001.

09280-90001

$32.90

24

BOLT This part replaces 01517-08258.

01550-08257

$2.81

25

CASE, FINAL GEAR

27450-18B00

Unavailable

26

UNION, BREATHER

09364-08003

$3.15

27

NUT

08319-31087

$2.32

28

STUD BOLT This part replaces 01421-08206.

01421-0820A

$1.91

29

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

$6.17

30

GASKET

09168-14004

$1.83

31

PLUG

09247-18001

$8.83

32

O-RING (D:2.4, ID:17.8)

09280-18004

$5.18

33

HOSE(7X10.2X200 This part replaces 09343-07152.

09352-70104-00B

$15.32

34

CLIP

09401-10402

$2.42

35

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

36

SPACER

27481-18B00

Unavailable

37

BOLT

01517-12905

Unavailable

38

NUT This part replaces 08319-31125.

08319-3112B

$5.00
