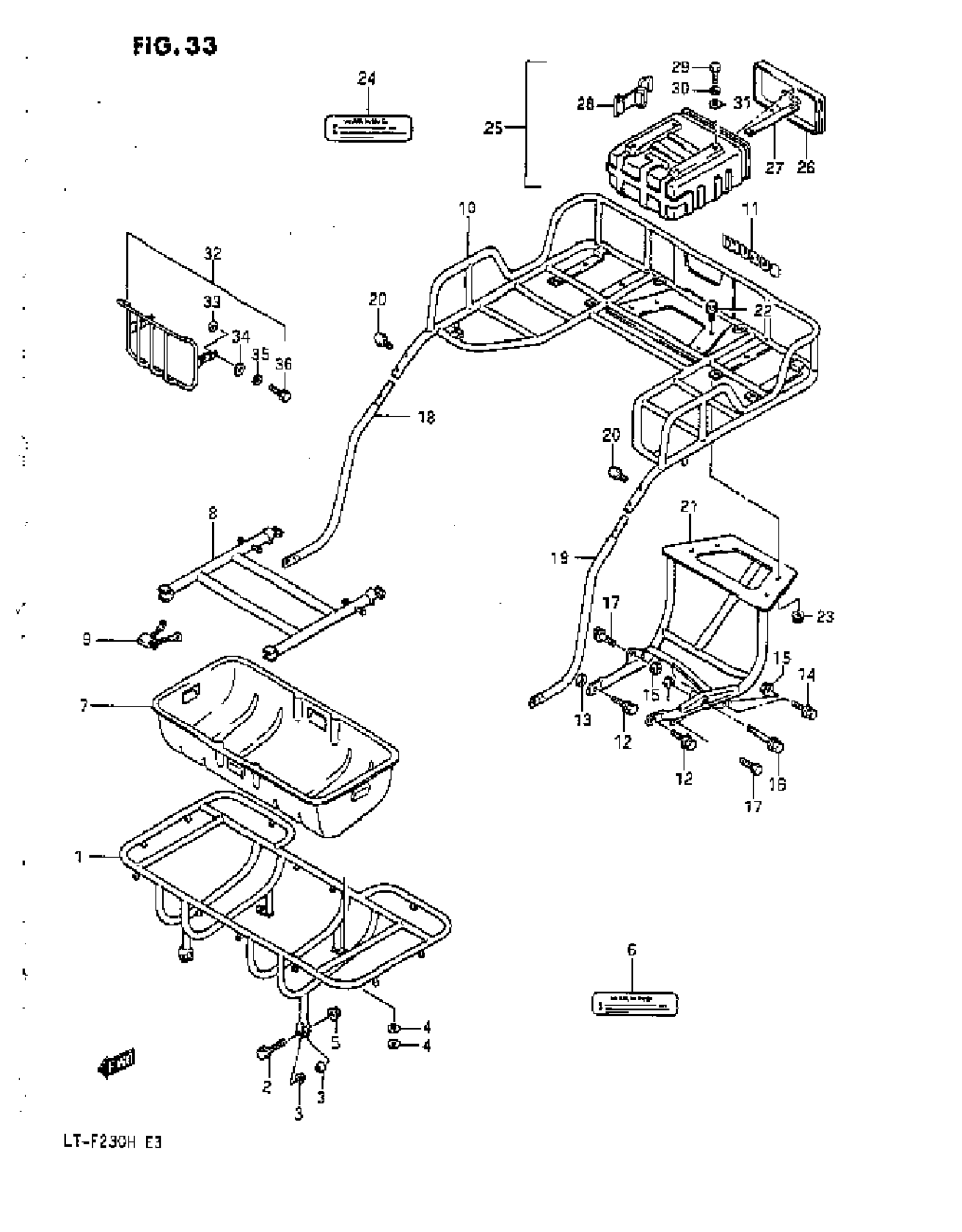

Suzuki LTF230 (1987) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT

46410-18B00

Unavailable

2

BOLT This part replaces 01517-08405.

01550-08407

$3.42

3

SPACER

46441-24451

Unavailable

4

WASHER (10.5X22X3.2) This part replaces 09160-10075.

09160-10125

Unavailable

5

NUT This part replaces 08316-16085.

08316-1008B

$2.66

6

LABEL, FRONT CARRIER

68381-18A20

Unavailable

7

PAN, FRONT CARRIER | OPT

92122-18A00

Unavailable

8

CARRIER, FRONT SUB

46340-24450

Unavailable

9

BAND

09462-00083

Unavailable

10

CARRIER, REAR | MODEL G This part replaces 46310-18A50.

46310-18A51

Unavailable

10

CARRIER, REAR | MODEL H

46310-18A51

Unavailable

11

EMBLEM (WHITE)

68111-46700-064

$15.42

12

BOLT This part replaces 01517-10305.

01550-1030A

$3.55

13

SPACER

09180-10100

Unavailable

14

BOLT, REAR RH

09103-08065

Unavailable

15

NUT

08319-31087

$2.32

16

BOLT, REAR CARRIER REAR LH

09103-08181

Unavailable

17

BOLT (8X20) This part replaces 09103-08055.

09103-08505

$3.58

18

LEG, REAR CARRIER RH

46360-18B00

Unavailable

19

LEG, REAR CARRIER LH

46370-18B00

Unavailable

20

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

21

SUB CARRIER, REAR

46380-18A51

Unavailable

22

BOLT (8X20) This part replaces 09103-08102.

09103-08505

$3.58

23

NUT This part replaces 08319-31085.

08319-3108A

$2.32

24

LABEL, REAR CARRIER

68391-18900

Unavailable

25

BOX SET

47400-24820

Unavailable

26

CAP, BOX

47432-24500

Unavailable

27

PLATE, BOX

47441-29500

Unavailable

28

BAND, BOX

44560-41300

Unavailable

29

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

30

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

31

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

32

GUARD SET, HEAD LAMP | OPT

48500-18830

Unavailable

33

SPACER | OPT

48519-18A00

Unavailable

34

WASHER | OPT This part replaces 09160-06063.

09160-06054

$1.62

35

LOCK WASHER | OPT This part replaces 08321-21067.

08321-01067

$2.13

36

BOLT, REAR | OPT This part replaces 01107-06307.

01500-06307

$2.48
