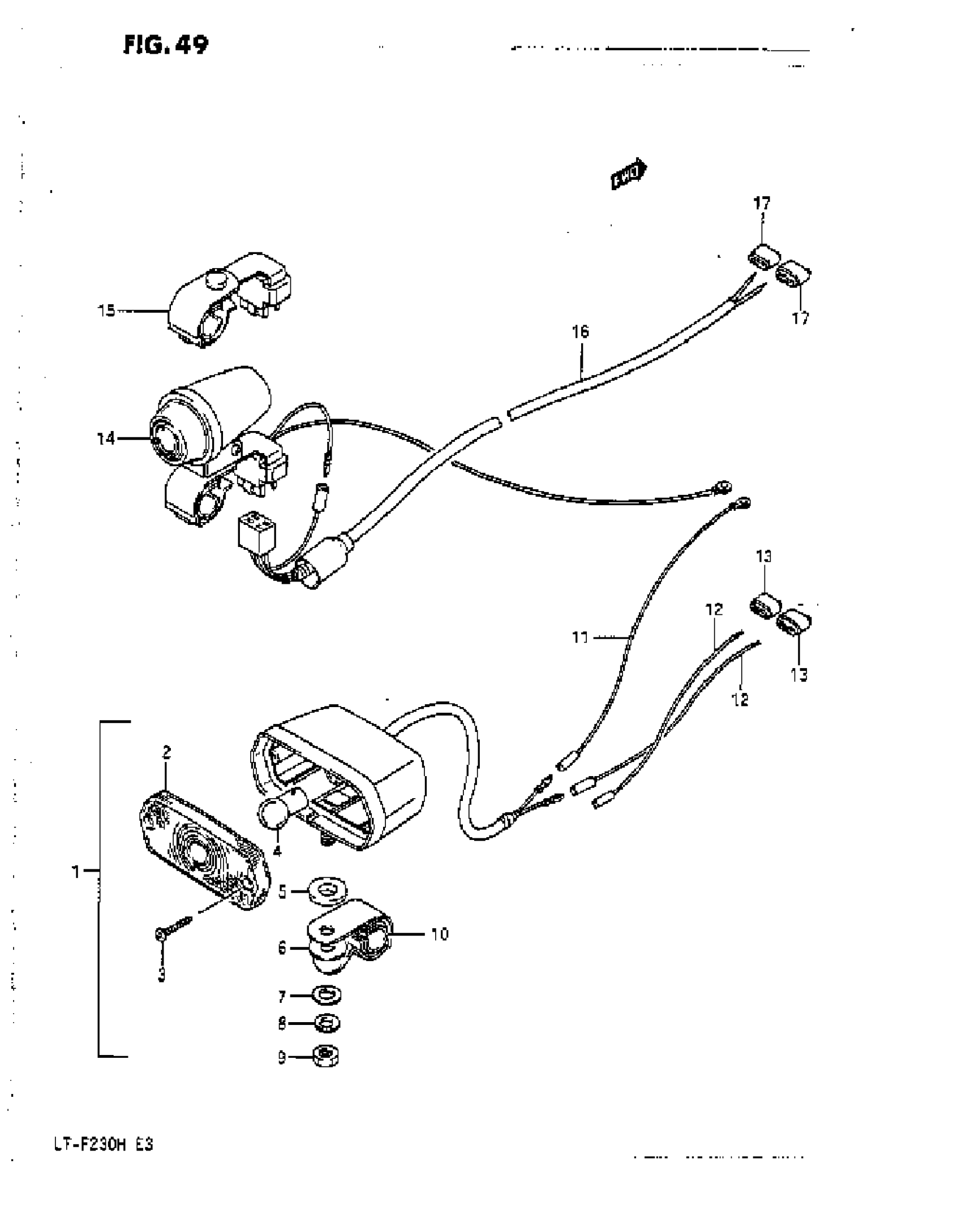

Suzuki LTF230 (1987) BACKUP LAMP (OPTIONAL) Diagram

#

Description
Price

1

LAMP ASS'Y, BACKUP

36250-19B00

Unavailable

2

LENS

36252-19B00

Unavailable

3

SCREW

36263-19B00

Unavailable

4

BULB,12V10W This part replaces 09471-12003.

09471-12142

Unavailable

5

CUSHION, NO.1

35694-19B00

Unavailable

6

CUSHION, NO.2

35695-19B00

Unavailable

7

WASHER This part replaces 08322-11088.

08322-01087

$2.13

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

9

NUT This part replaces 08310-12088.

08310-00087

$2.13

10

SPACER

36293-19B00

Unavailable

11

LEAD WIRE

36856-18B10

Unavailable

12

LEAD WIRE

36851-18B00

Unavailable

13

CONNECTOR

36859-36590

$7.32

14

BUZZER & RELAY ASS'Y, BACKUP

38750-18A00

Unavailable

15

RELAY ASS'Y, BACKUP

38752-19B00

Unavailable

16

LEAD WIRE

36854-18A00

Unavailable

17

CONNECTOR

36859-36590

$7.32
