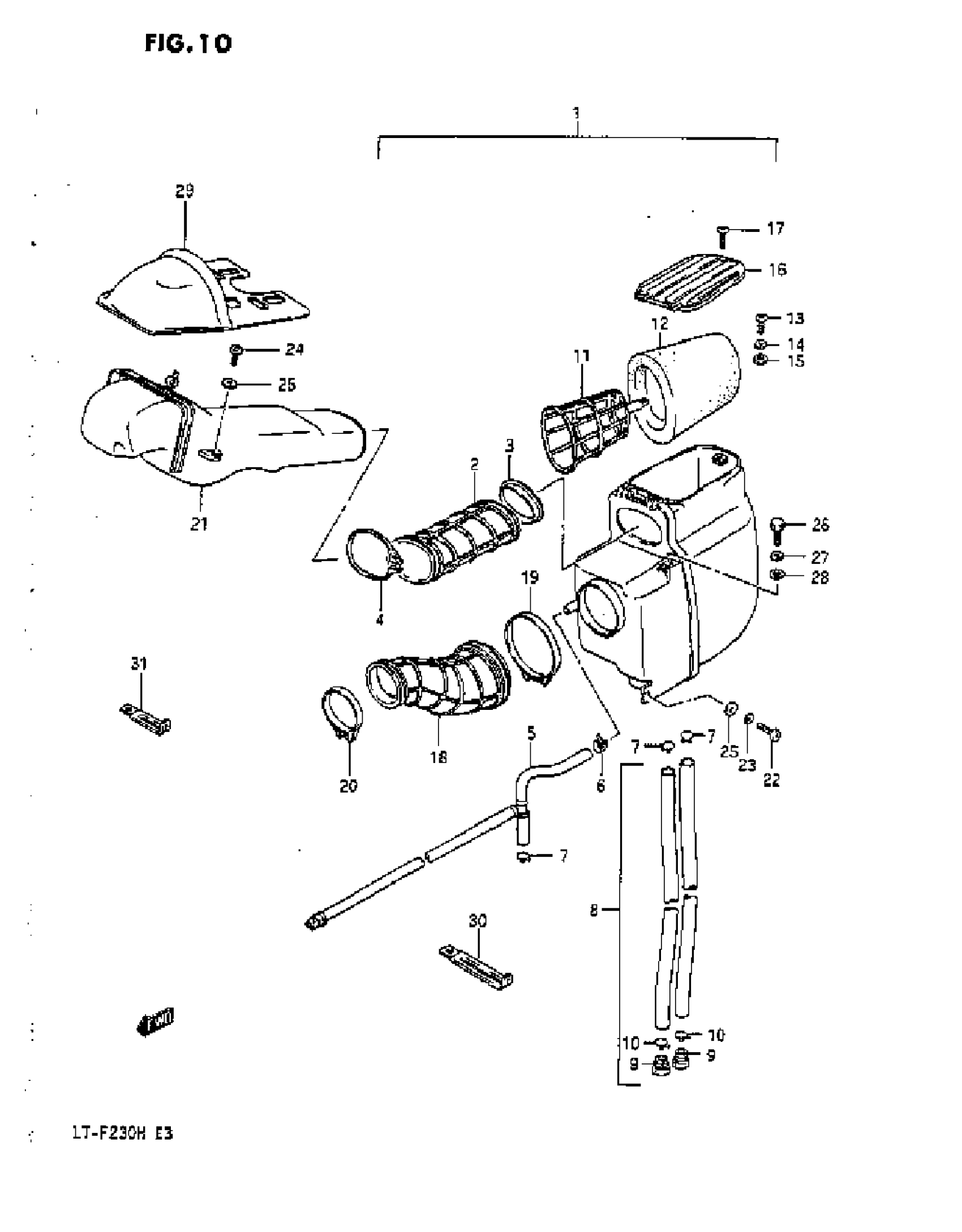

Suzuki LTF230 (1987) AIR CLEANER Diagram

#

Description
Price

1

CASE ASS'Y, CLEANER

13702-18B00

Unavailable

2

TUBE, INLET

13894-18A00

Unavailable

3

RING

13898-18A00

Unavailable

4

CLAMP

13826-18A00

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 13850-18910.

13850-18911

Unavailable

6

CLAMP This part replaces 13825-43400.

09401-13417

$2.26

7

CLIP

09401-14301

$2.35

8

TUBE, DRAIN

13870-18B00

Unavailable

9

PLUG

13877-00190

$5.32

10

CLIP

09401-14301

$2.35

11

HOLDER, FILTER

13791-18A01

Unavailable

12

FILTER

13781-18A00

$26.91

13

SCREW This part replaces 02112-06168.

02112-06167

$1.49

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

15

WASHER This part replaces 08322-21067.

08322-01067

$2.13

16

CAP

13750-18B00

Unavailable

17

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

18

TUBE, OUTLET

13881-18A00

Unavailable

19

CLAMP

09402-76208

$6.62

20

CLAMP This part replaces 09402-52207.

09402-52208

$5.36

21

CASE, INLET

13890-18A00

Unavailable

22

SCREW This part replaces 02112-06208.

02112-06207

$1.78

23

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

24

SCREW This part replaces 02112-06168.

02112-06167

$1.49

25

WASHER This part replaces 09160-06007.

09160-06084

$1.78

26

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

27

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

28

WASHER This part replaces 08322-21067.

08322-01067

$2.13

29

CAP, AIR CLEANER

13860-18A00

Unavailable

30

CLAMP, AIR VENT HOSE This part replaces 09404-06419.

09404-06435

$3.68

31

CLAMP This part replaces 09404-06402.

09404-06039

$1.74
