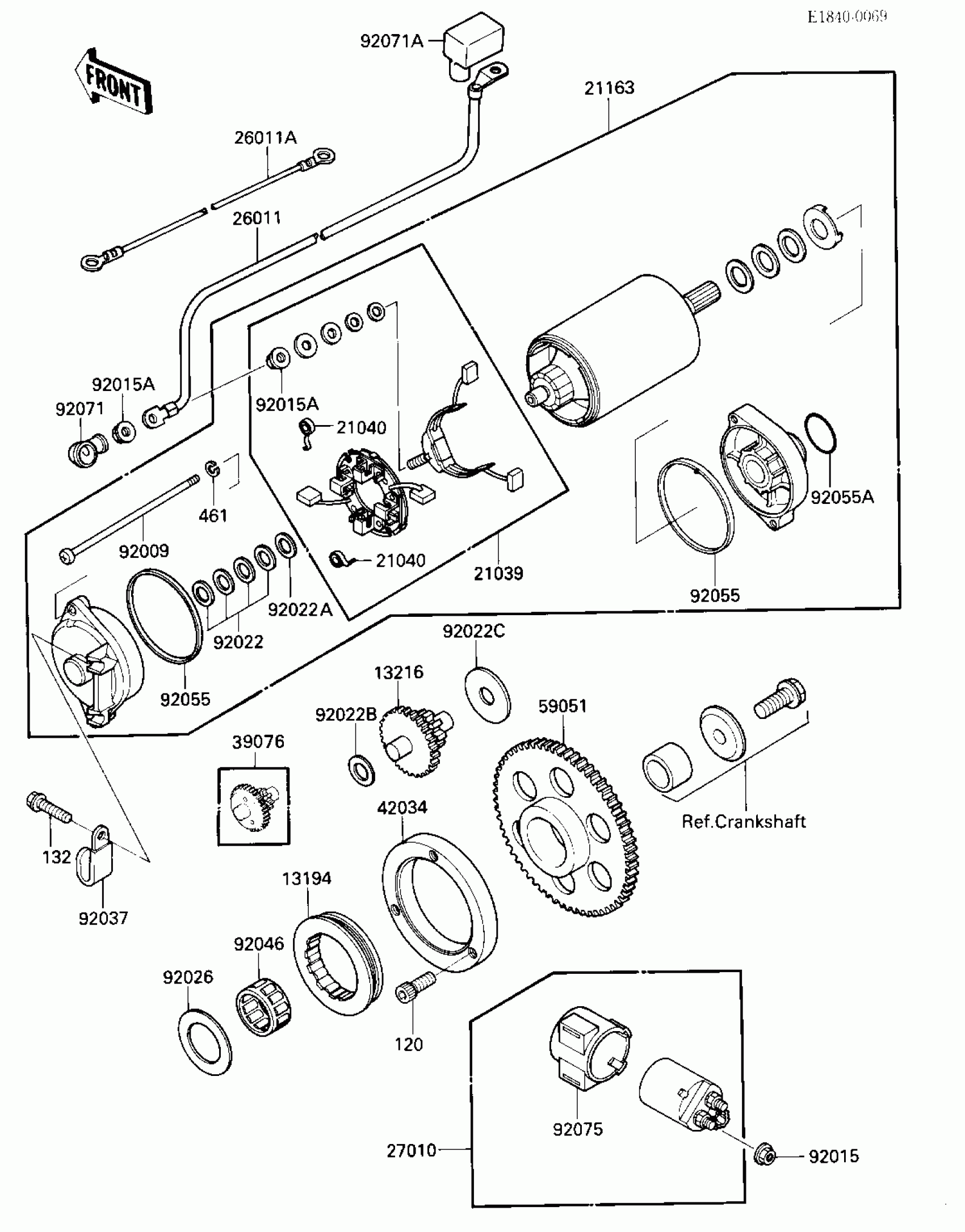

Kawasaki LTD STARTER MOTOR/STARTER CLUTCH Diagram
#
Description
Price
13194
CLUTCH-ONEWAY
13194-1062
Unavailable
13216
39076-1051 (Canada)
13216-1082
$160.16
21039
BRUSH,CARBON
21039-1053
$94.23
21040
SPRING-BRUSH
21040-1003
$9.41
21163
STARTER-ELECTRIC
21163-1068
$679.26
26011
WIRE-LEAD,STARTER MOTOR
26011-1276
$75.76
26011A
WIRE-LEAD,BATTERY GROUND
26011-1320
$14.64
27010
SWITCH,MAGNETIC
27010-1235
$154.96
39076
LIMITER,STARTER IDLE GEAR
39076-1051
$160.16
42034
COUPLING
42034-1081
$121.16
59051
GEAR-SPUR,STARTER,63T
59051-1130
$176.82
92009
SCREW
92009-1369
$9.51
92015
NUT,FLANGED,6MM
92015-1078
Unavailable
92015A
NUT,STARTER MOTOR
92015-1476
$4.31
92022
WASHER,9.1X18X0.2
21025-011
$6.22
92022A
WASHER,9.1X18X0.8
92022-1132
$6.22
92022B
WASHER
92022-1611
$4.11
92022C
WASHER,12.3X38X2.0
92022-1664
$7.34
92026
SPACER,29.1X47.5X1.2
92026-087
$9.91
92037
CLAMP,L=45
92037-1539
$5.00
92046
BEARING-NEEDLE
92046-1137
$32.05
92055
RING-O,64MM
92055-1086
$10.00
92055A
RING-O
92055-1276
$9.91
92071
GROMMET,STARTER TERMINAL
21017-017
$9.43
92071A
GROMMET,TERMINAL
92071-1130
$11.29
92075
DAMPER,MAGNETIC SWITCH
21064-002
Unavailable
120
BOLT-SOCKET,8X20
120S0820
$4.15
132
BOLT-FLANGED-SMALL,6X25
132J0625
$2.62
461
WASHER SPRING 5MM
461F0500
$0.69
