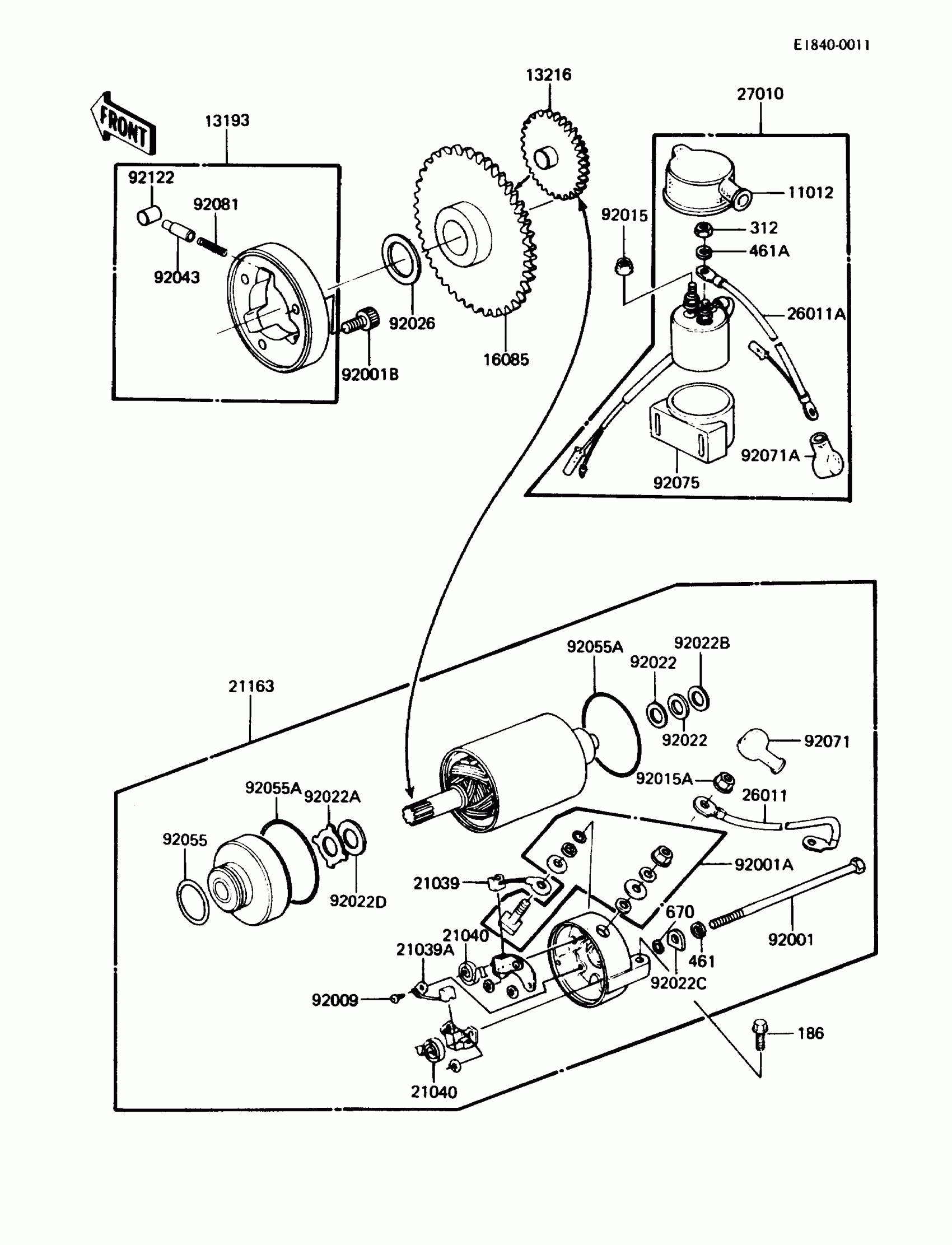

Kawasaki LTD Starter Motor Diagram

#

Description
Price

11012

CAP,MAGNETIC SWITCH

21141-004

Unavailable

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$116.39

13216

GEAR-COMP,STARTER IDLE

13216-1009

Unavailable

16085

GEAR,ONEWAY CLUTCH

16085-1032

Unavailable

21039

BRUSH,CARBON(+)

21039-1001

$34.49

21039A

BRUSH,CARBON(-)

21039-1002

Unavailable

21040

SPRING-BRUSH

21040-1001

Unavailable

21163

STARTER-ELECTRIC

21163-1131

$465.01

26011

WIRE-LEAD,STARTER MOTOR

26011-1049

$35.75

26011A

WIRE-LEAD,MAGNETIC SWITCH

26011-1128

$65.61

27010

SWITCH,MAGNETIC

27010-1050

Unavailable

92001

BOLT,PAN HEAD,5X108.5

92001-1156

$6.68

92001A

BOLT,TERMINAL

92001-1204

$20.44

92001B

BOLT,SOCKET,8X10

92001-1424

$5.00

92009

SCREW,TAPPING,3.5X8

92009-1058

$2.25

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.2

21025-011

$6.22

92022A

WASHER,THRUST SUPPORT

92022-1130

Unavailable

92022B

WASHER,9.1X18X0.8

92022-1132

$6.22

92022C

WASHER,LOCK,T=3.2

92022-1133

$2.52

92022D

WASHER,22X12.2X0.5

92022-1714

Unavailable

92026

SPACER,22X35.5X1.0

92026-092

$12.48

92043

PIN

92043-132

$6.22

92055

RING-O

92055-1303

$11.79

92055A

RING-O

92055-1418

$11.79

92071

GROMMET,STARTER TERMINAL

21017-017

$9.43

92071A

GROMMET,MAGNETIC SWITCH

21017-023

$18.14

92075

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

92081

SPRING,COIL

92081-159

$3.89

92122

ROLLER

92122-006

$6.22

186

BOLT-UPSET-WP,6X20

186B0620

$2.17

312

NUT 6MM

312B0600

$0.72

461

WASHER SPRING 5MM

461F0500

$0.69

461A

WASHER SPRING 6MM

461F0600

$0.69

670

O RING,5MM

670B1505

$3.26
