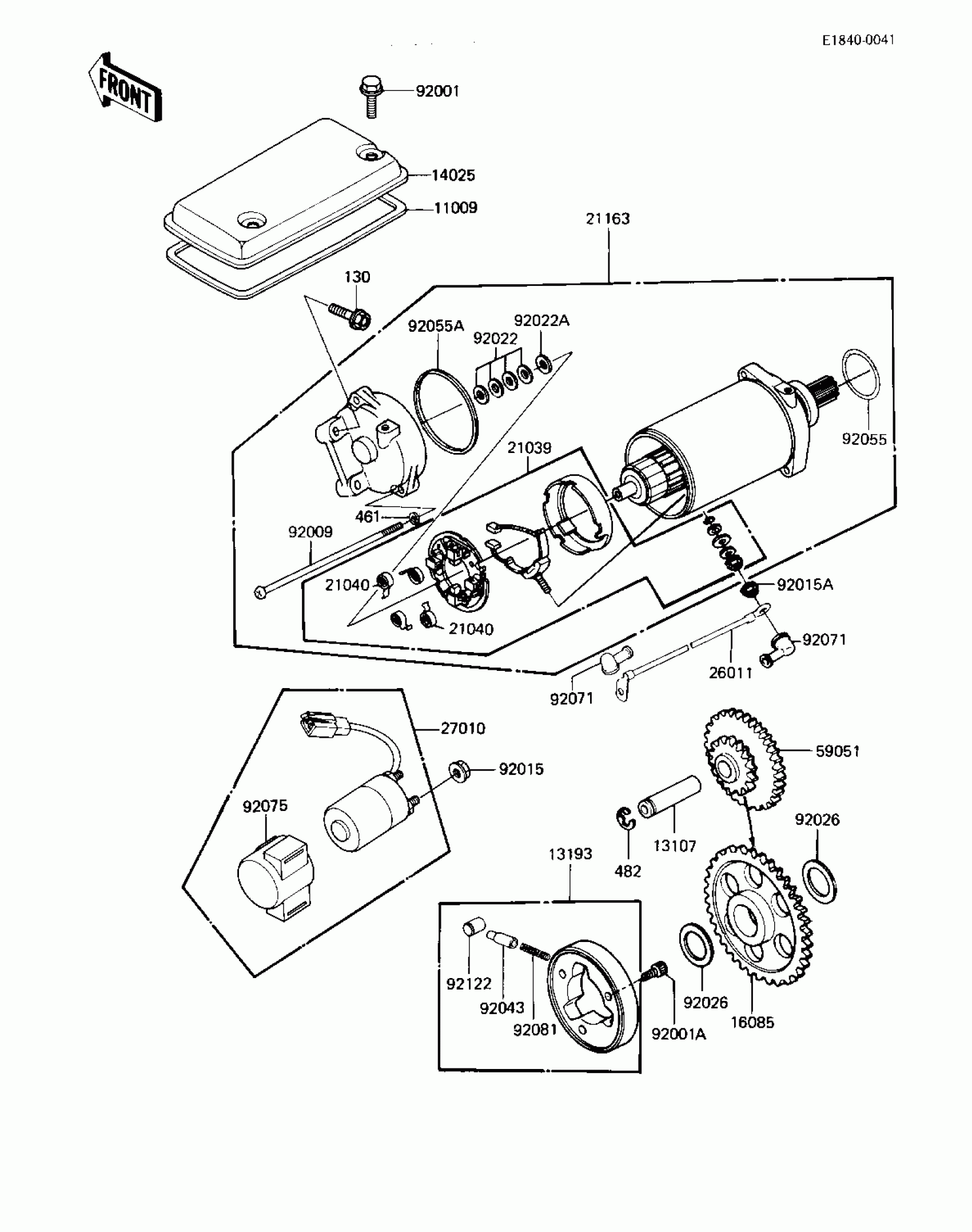

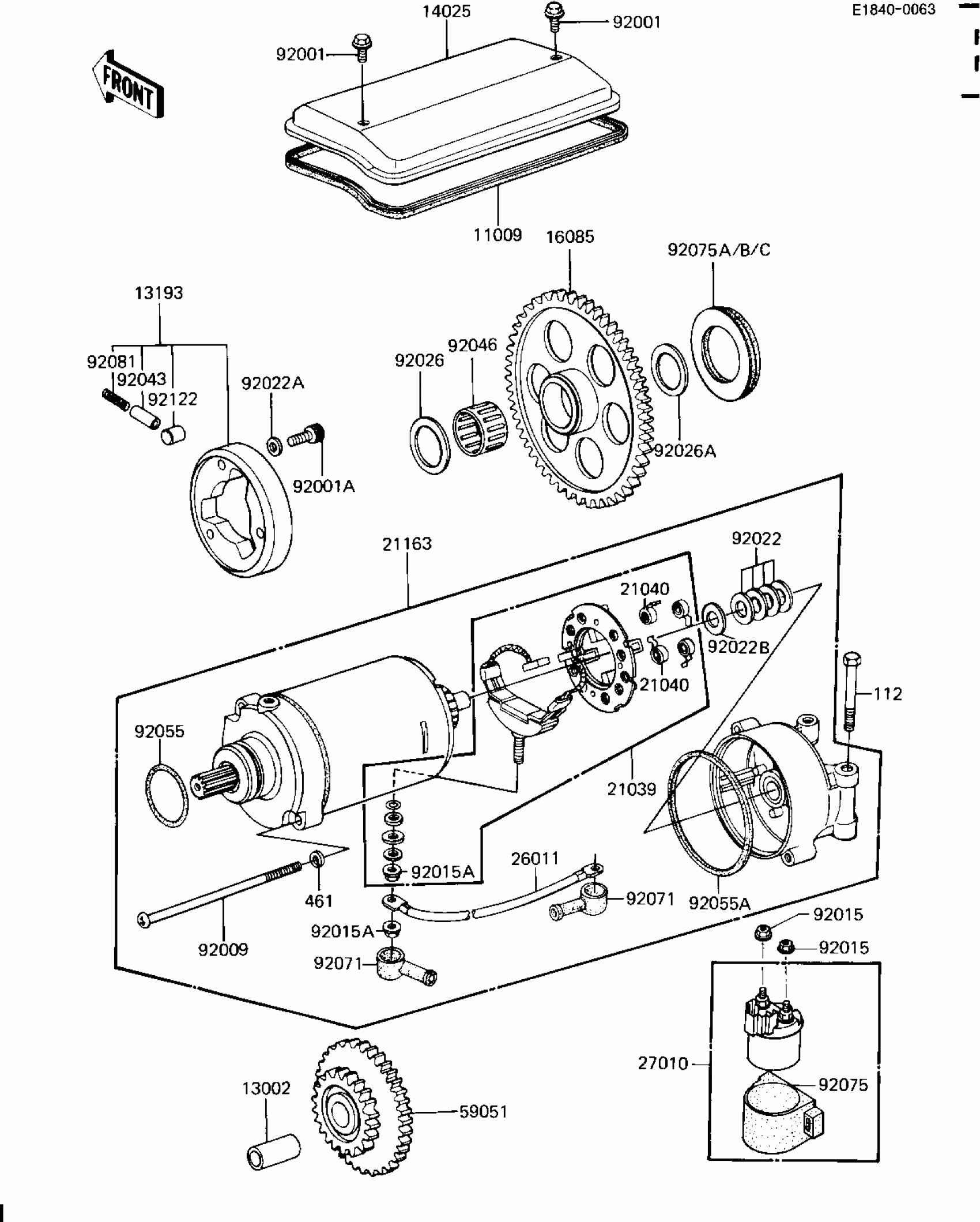

Kawasaki LTD Shaft STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

11009

GASKET,STARTER COVER

11009-1069

Unavailable

13107

SHAFT,STARTER IDLE

13107-1006

Unavailable

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$116.39

14025

COVER,STARTER MOTOR

14025-1050

Unavailable

16085

GEAR,ONEWAY CLUTCH

16085-1030

$129.22

21039

BRUSH,CARBON

21039-1053

$94.23

21040

SPRING-BRUSH

21040-1003

$9.41

21163

STARTER-ELECTRIC

21163-1031

$509.52

26011

WIRE-LEAD,STARTER MOTOR

26011-1135

$74.28

27010

SWITCH,MAGNETIC

27010-1071

Unavailable

59051

GEAR-SPUR,STARTER IDLE

59051-1011

Unavailable

92001

BOLT,6X10

92001-1151

$5.01

92001A

BOLT,SOCKET,8X10

92001-1424

$5.00

92009

SCREW,PAN HEAD,5X110

21015-005

$9.81

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,9.1X18X0.2

21025-011

$6.22

92022A

WASHER,9.1X18X0.8

92022-1132

$6.22

92026

SPACER,25X36X3.2

92026-1025

$6.16

92043

PIN

92043-132

$6.22

92055

RING-O,STARTER MOTOR,25MM

21027-004

$9.91

92055A

RING-O,64MM

92055-1086

$10.00

92071

GROMMET,STARTER TERMINAL

21017-017

$9.43

92075

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

92081

SPRING,COIL

92081-159

$3.89

92122

ROLLER

92122-006

$6.22

130

BOLT,FLANGED,6X25

130G0625

$1.17

461

WASHER SPRING 5MM

461F0500

$0.69

482

CIRCLIP 12MM

482K0200

$1.25
