Description

Price

13042

WEIGHT,HANDLE

13042-1006

Unavailable

13091

HOLDER,CLUTCH LEVER

13091-1272

$48.48

27010

SWITCH,CLUTCH,BLACK

27010-1094

$28.59

46003

HANDLE

46003-1166

Unavailable

46012

HOLDER-HANDLE

46012-1112

$19.94

46019A

GRIP-ASSY,THROTTLE

46019-1059

$34.08

46075

GRIP,LH

46075-1028

$17.48

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1105

$50.83

46091A

HOUSING-ASSY-CONTROL,

46091-1349

Unavailable

46091B

HOUSING-ASSY-CONTROL,

46091-1349

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1103

$24.80

56001

MIRROR-ASSY

56001-1340

Unavailable

92001

BOLT,CLUTCH LEVER,BLACK

92001-1548

$8.47

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$15.16

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$9.91

92033

RING-SNAP,OD=22.2

92033-1102

Unavailable

92066

PLUG,HANDLE

92066-1124

$6.10

92066A

PLUG

92066-1216

$4.65

92072

BAND,L=149

92072-031

$5.00

92072A

BAND,L=218

92072-032

$5.00

92092

BUSHING-RUBBER,SHOCKABSORBER

92092-1016

$29.14

110

BOLT,6X22,BLACK

110C0622

$4.37

120

BOLT-SOCKET,8X25

120P0825

$1.92

120A

BOLT-SOCKET,8X30

120S0830

$4.37

220

SCREW-PAN-CROS

220B0535

$3.70

220B

SCREW-PAN-CROS,5X40

220C0540

$1.92

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

$0.72

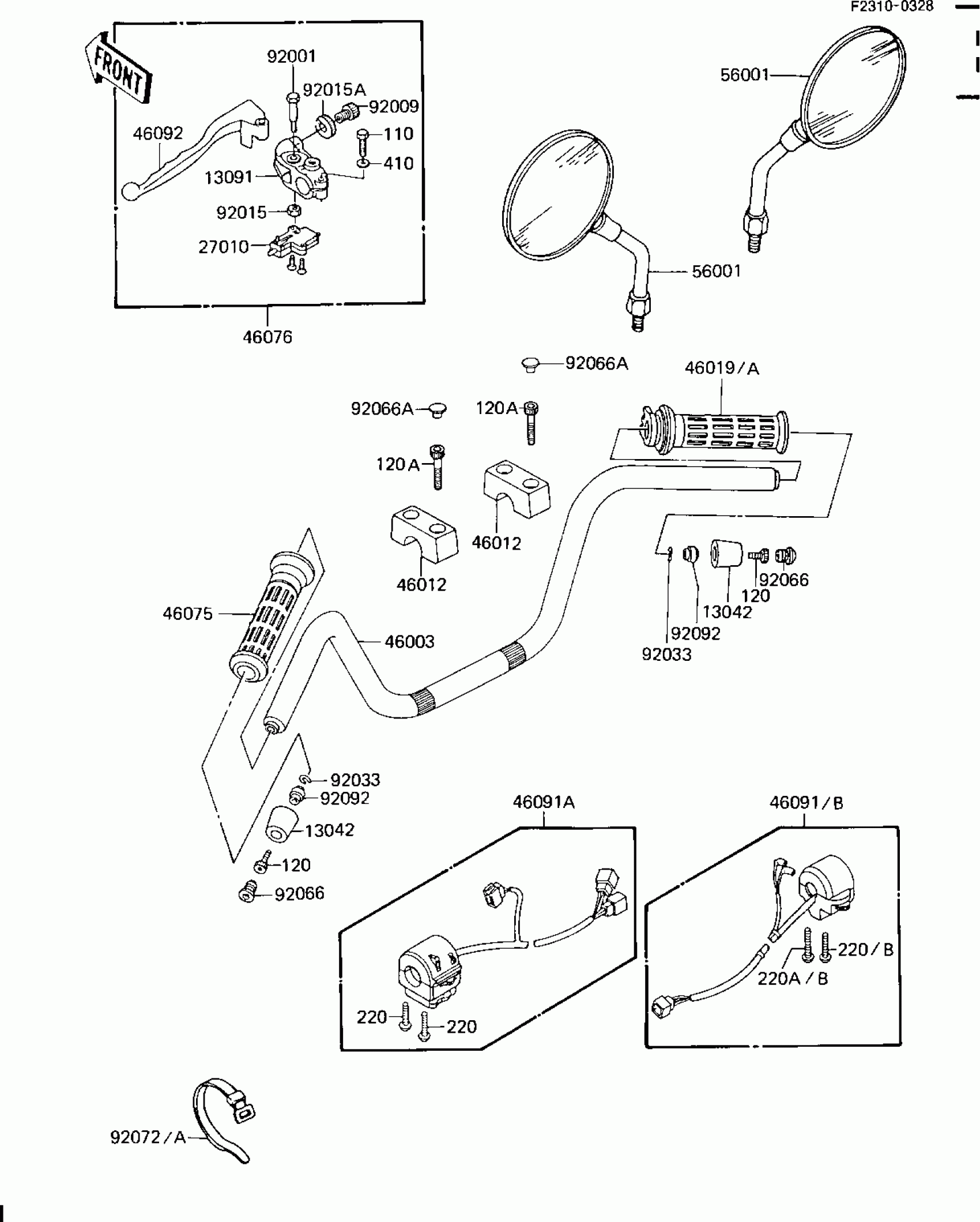

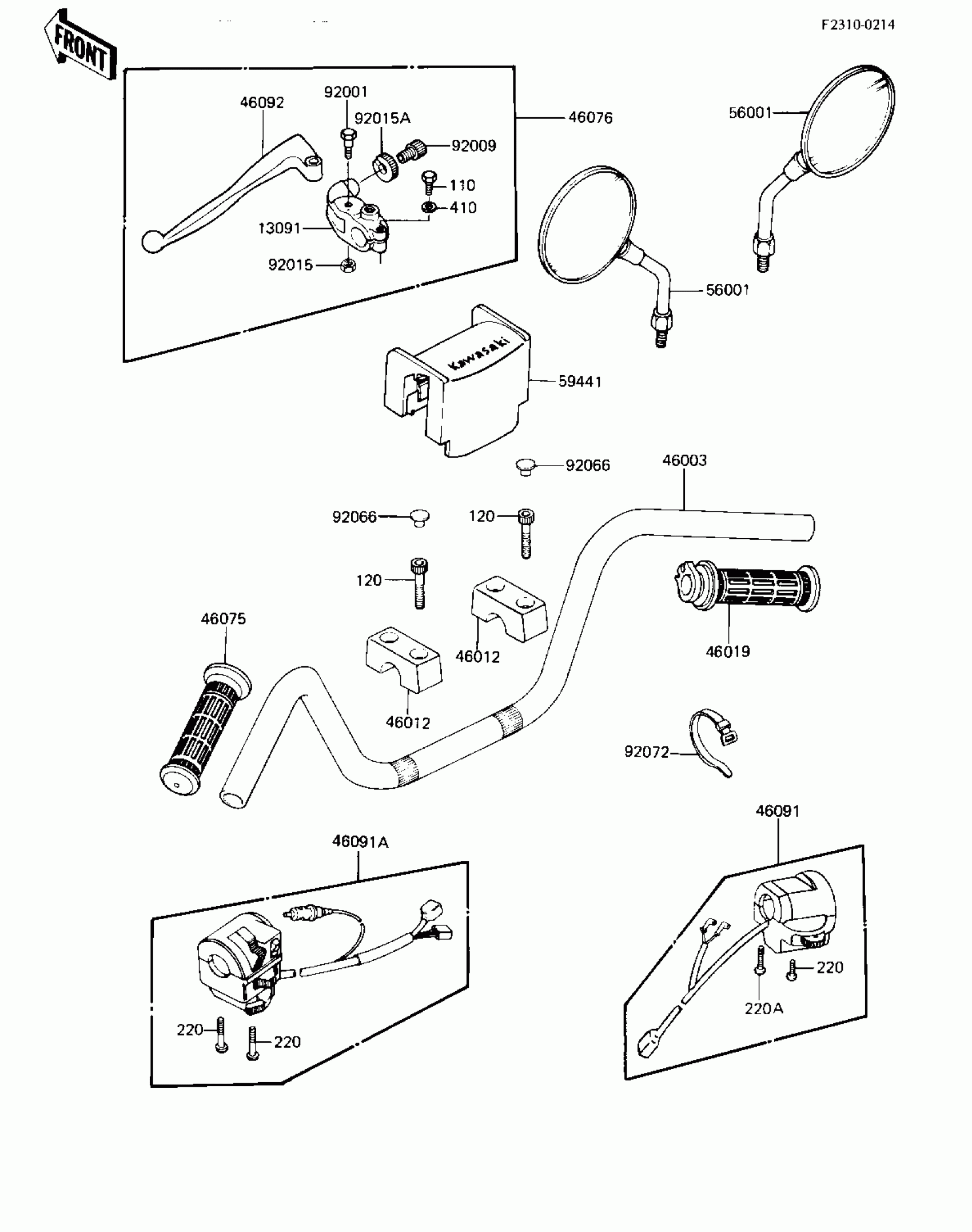

Kawasaki LTD Shaft HANDLEBAR Diagram

WEIGHT,HANDLE

HOLDER,CLUTCH LEVER

SWITCH,CLUTCH,BLACK

HANDLE

HOLDER-HANDLE

GRIP-ASSY,THROTTLE

GRIP,LH

LEVER-ASSY-GRIP,CLUTCH

HOUSING-ASSY-CONTROL,

HOUSING-ASSY-CONTROL,

LEVER-GRIP,CLUTCH

MIRROR-ASSY

BOLT,CLUTCH LEVER,BLACK

SCREW,CABLE ADJUST,8MM,BLACK

NUT,LOCK,6MM,BLACK

NUT,CABLE ADJUST LOCK,8MM,BLK

RING-SNAP,OD=22.2

PLUG,HANDLE

PLUG

BAND,L=149

BAND,L=218

BUSHING-RUBBER,SHOCKABSORBER

BOLT,6X22,BLACK

BOLT-SOCKET,8X25

BOLT-SOCKET,8X30

SCREW-PAN-CROS

SCREW-PAN-CROS,5X40

WASHER-PLAIN-SMALL,6MM,BLACK
