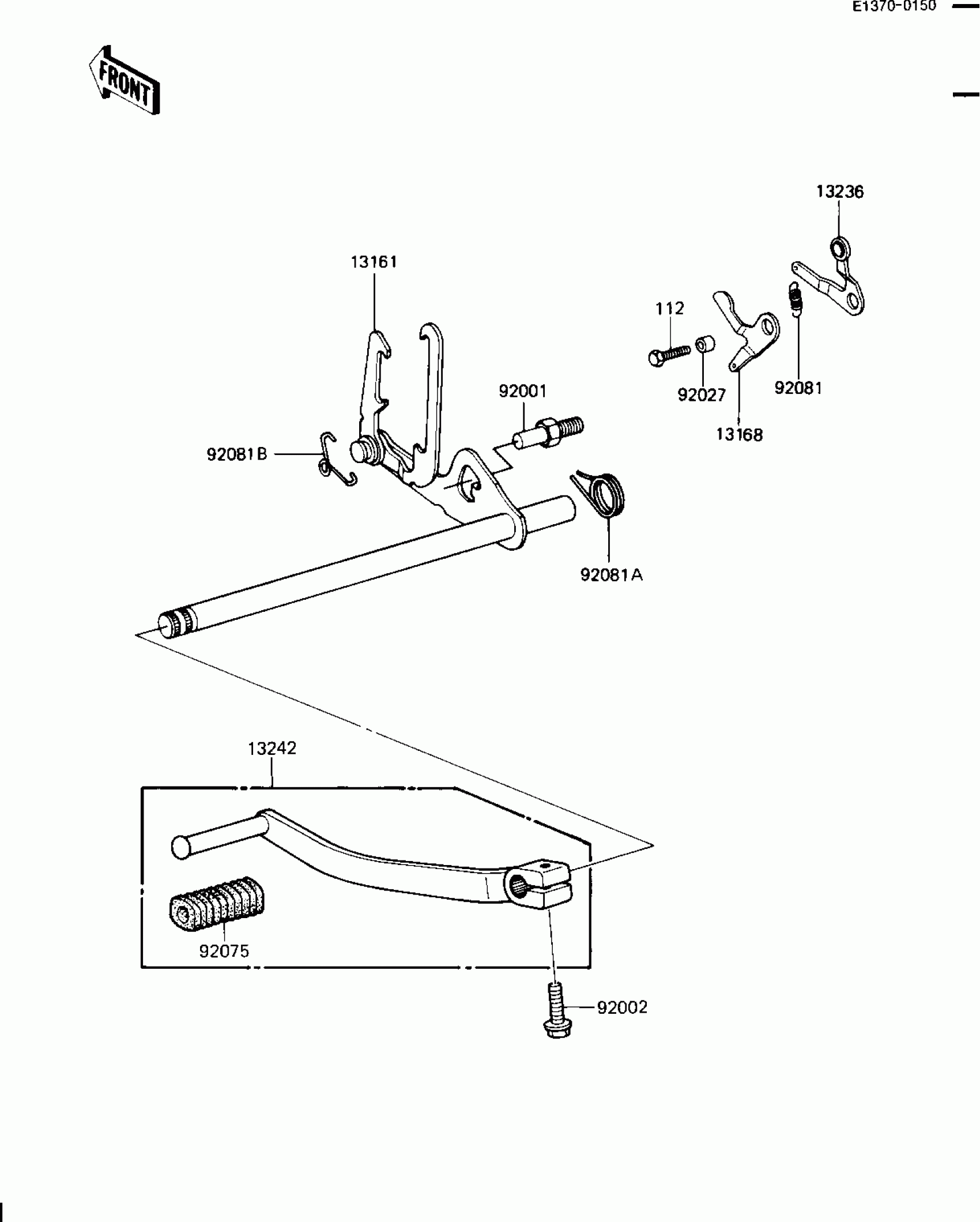

Kawasaki LTD Shaft GEAR CHANGE MECHANISM Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-1023

$94.41

13168

LEVER,GEAR POSITIONIN

13168-1083

Unavailable

13236

LEVER-COMP,NEUTRAL PO

13236-1031

Unavailable

13242

LEVER-ASSY-CHANGE

13242-1182

Unavailable

92001

BOLT,RETURN SPRING

92001-1401

$4.69

92002

BOLT,6X20

92002-1237

$4.31

92027

COLLAR,GEAR POSITIONI

92027-1331

Unavailable

92075

DAMPER,CHANGE PEDAL

13157-004

Unavailable

92081

SPRING,CHANGE LEVER

92081-1109

$4.96

92081A

SPRING,CHANGE PEDAL RETURN

92081-1589

$8.55

92081B

SPRING

92083-018

$9.80

112

BOLT-UPSET,6X16

112G0616

$1.10
