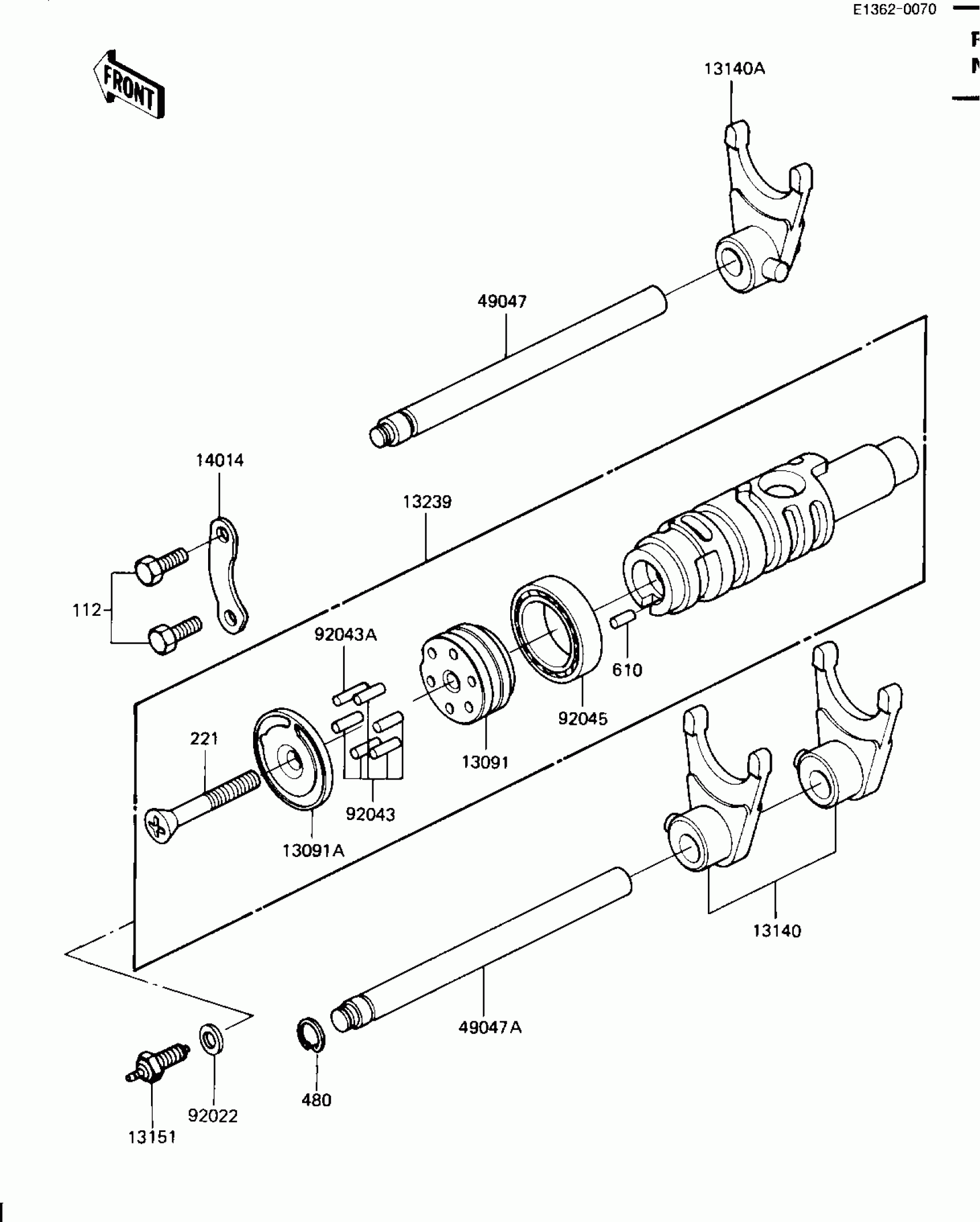

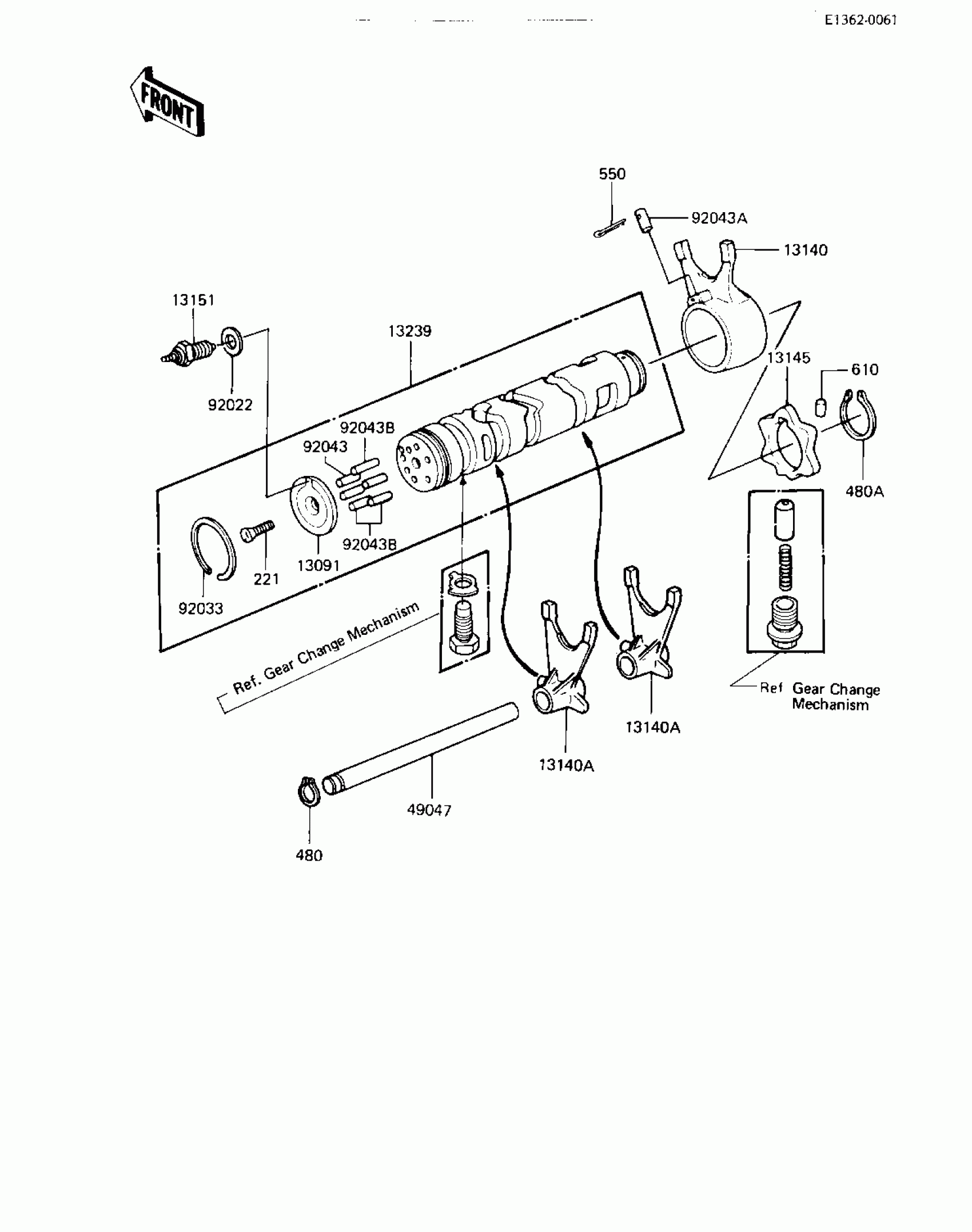

Kawasaki LTD Shaft GEAR CHANGE DRUM & FORKS Diagram

Description

Price

13091

HOLDER,CHANGE DRM PIN

13091-1103

Unavailable

13091A

HOLDER,CHANGE DRUM PIN

13091-1104

$26.23

13140

FORK-SHIFT

13140-1045

Unavailable

13140A

FORK-SHIFT

13140-1046

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

13239

DRUM-ASSY-CHANGE

13239-1108

Unavailable

14014

PLATE-POSITION

14014-1015

$7.83

49047

ROD-SHIFT

49047-1014

$39.65

49047A

ROD-SHIFT

49047-1019

$39.65

92022

GASKET,10.5X16X1

92065-058

$3.96

92043

PIN,DOWEL,4X15.8

92042-014

$0.43

92043A

PIN,DOWEL,4X17.8

92042-020

$5.05

92045

BEARING-BALL,6806

92045-1035

$45.82

112

BOLT-UPSET,6X16

112G0616

$1.10

221

SCREW-CSK-CROS,6X45

221B0645

$4.12

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

610

ROLLER,4X10

610A0410

$4.31
