Partiron

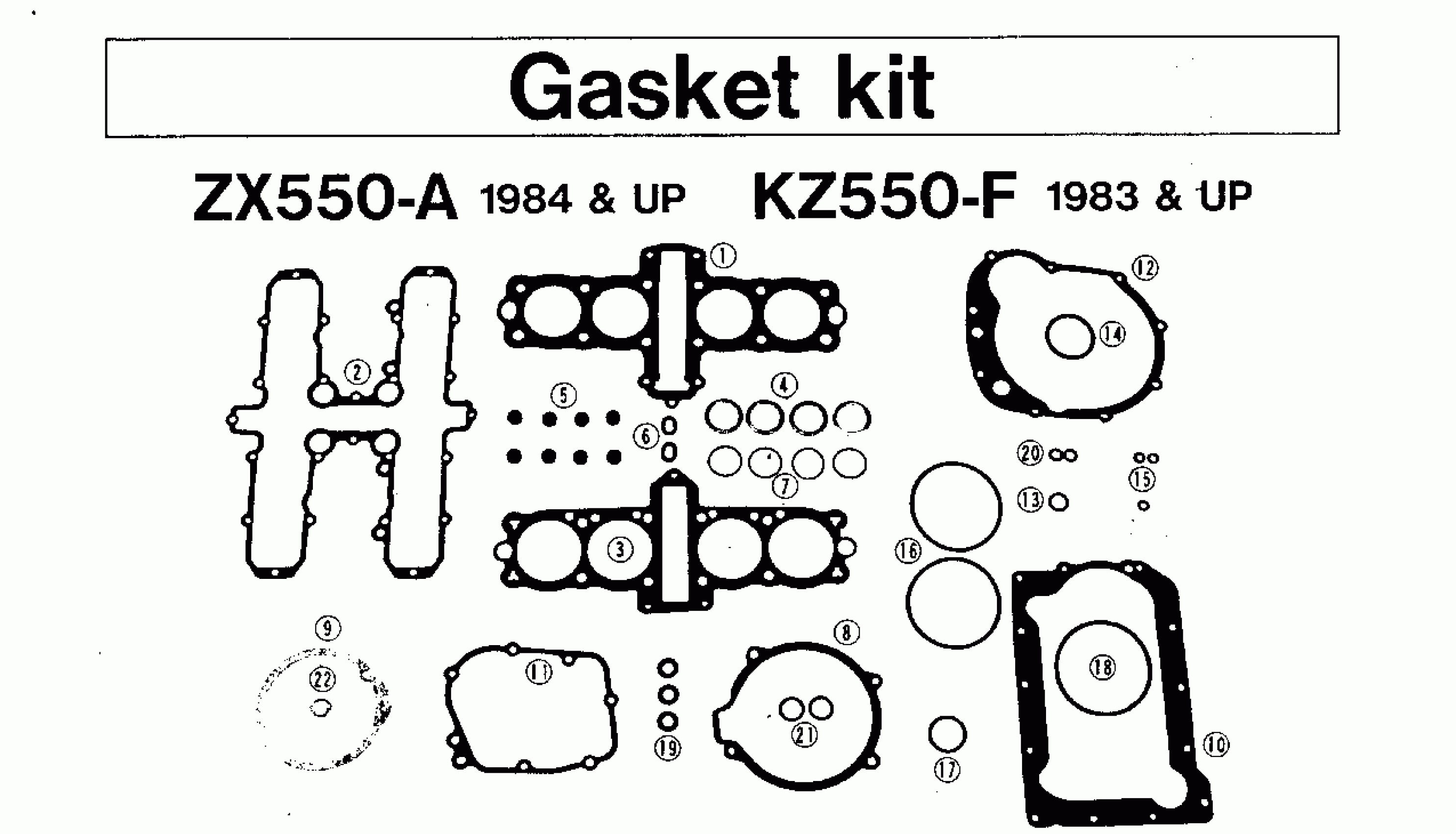

Kawasaki LTD Shaft GASKET KIT ZX550-A 1984 Diagram

#

Description
Price

0-1

GASKET-SET,A,ZX550-A

11028-1080

Unavailable

0-2

GASKET-SET,B,ZX550-A

11028-1085

Unavailable

1

GASKET-HEAD

11004-1212

Unavailable

2

GASKET,CYLINDER HEAD

11009-1280

Unavailable

3

GASKET,CYLINDER BASE

11009-1932

Unavailable

4

GASKET,EXHAUST PIPE H

11009-1866

$6.29

5

SEAL-OIL,VALVE STEM

92049-1153

$9.65

6

RING-O,CYLINDER OIL LINE PIN

92055-1147

$7.52

7

RING-O,CARBURETOR HOL

92055-1233

$11.76

8

GASKET,GENERATOR COVER

11060-1055

$10.93

9

GASKET,PULSING COIL CAP

11060-1053

$6.19

10

GASKET,OIL PAN

11060-1057

Unavailable

11

GASKET,TRANSMISSION COVER

11060-1056

Unavailable

12

GASKET,CLUTCH COVER

11060-1054

$24.63

13

O RING,16MM

670B2016

$1.04

14

O RING,46MM

670B3046

$4.67

15

O RING,8MM

670D1508

$3.29

16

O RING,60MM

671B2560

$5.13

17

RING-O,31.5X2.6

92055-049

$3.29

18

RING-O,91.6X3.4

92055-052

$7.52

19

RING-O,19.5MM

92055-077

$4.47

20

"O" RING,9.8MM

92055-101

$1.41

21

RING-O,20X2

92055-1146

$6.55

22

GASKET,12X22X2

92065-097

$0.66
