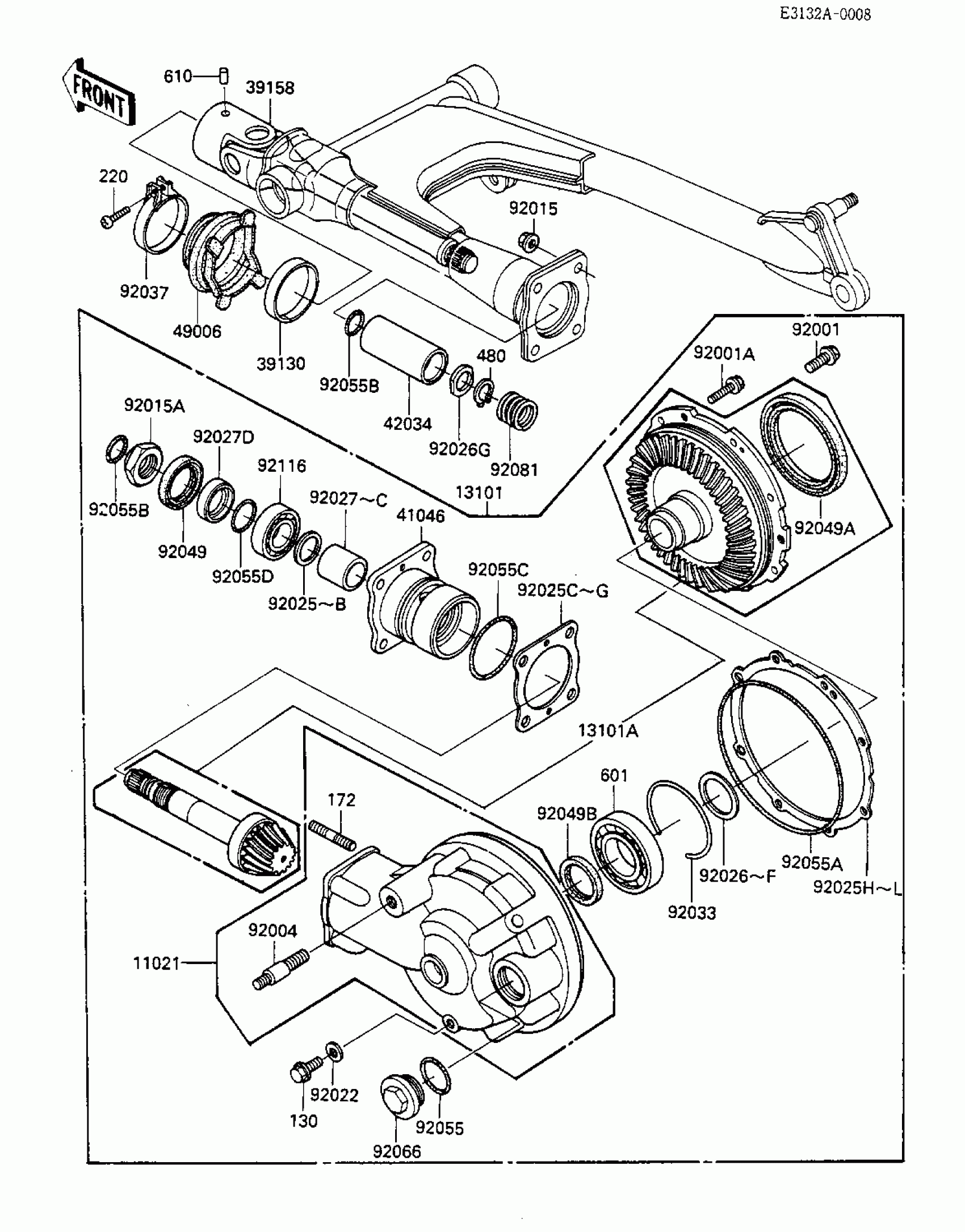

Kawasaki LTD Shaft DRIVE SHAFT/FINAL GEARS (KZ550-F2) Diagram
#
11021
CASE-ASSY
11021-1018-F2
Unavailable
13101
GEAR-ASSY,FINAL,HS SI
13101-1031-B9
Unavailable
13101A
GEAR-ASSY,FINAL BEVEL
13101-5038
Unavailable
39130
SPRING-LEAF
39130-1002
$4.65
39158
SHAFT-ASSY-DRIVE
39158-1007
$284.21
41046
HOUSING-BEARING
41046-1019
$172.80
42034
COUPLING,DRIVE SHAFT,OUTER
42034-1035
$135.39
49006
BOOT,PROPELLER SHAFT
49006-1059
$39.05
92001
BOLT,FLANGED,8X28
92001-1095
$6.57
92001A
BOLT,10X23
92001-1778
$5.93
92004
STUD,RR SHOCKABSORBER
92004-1047
$15.74
92015
NUT,FLANGED,8MM
92015-1408
$5.38
92015A
NUT,25MM
92015-1241
$22.14
92022
WASHER,8.2X16X1
92022-1086
$3.92
92025
SHIM,25.2X29.8X1.74
92025-1074
Unavailable
92025A
SHIM,25.2X29.8X1.76
92025-1075
Unavailable
92025B
SHIM,25.2X29.8X1.78
92025-1076
Unavailable
92025C
SHIM,T=0.15
92025-1312
Unavailable
92025D
SHIM,T=0.8
92025-1316
Unavailable
92025E
SHIM,T=0.9
92025-1317
Unavailable
92025F
SHIM,T=1.0
92025-1318
Unavailable
92025G
SHIM,T=1.2
92025-1319
Unavailable
92025H
SHIM,T=0.15
92025-1369
Unavailable
92025I
SHIM,T=0.80
92025-1370
Unavailable
92025J
SHIM,T=0.90
92025-1371
Unavailable
92025K
SHIM,T=1.00
92025-1372
Unavailable
92025L
SHIM,T=1.20
92025-1373
Unavailable
92026
SPACER,T=1.95
92026-1122
Unavailable
92026A
SPACER,T=2.00
92026-1123
Unavailable
92026B
SPACER,T=2.05
92026-1124
Unavailable
92026C
SPACER,T=2.10
92026-1125
Unavailable
92026D
SPACER,T=2.15
92026-1126
Unavailable
92026E
SPACER,T=2.20
92026-1127
Unavailable
92026F
SPACER,T=2.25
92026-1128
Unavailable
92026G
SPACER,DRIVE SHAFT
92026-1129
$8.21
92027
COLLAR,L=34.3
92027-1536
Unavailable
92027A
COLLAR,L=34.4
92027-1537
Unavailable
92027B
COLLAR,L=34.5
92027-1538
Unavailable
92027C
COLLAR,L=34.6
92027-1539
Unavailable
92027D
COLLAR,25X35X9
92027-1540
$12.99
