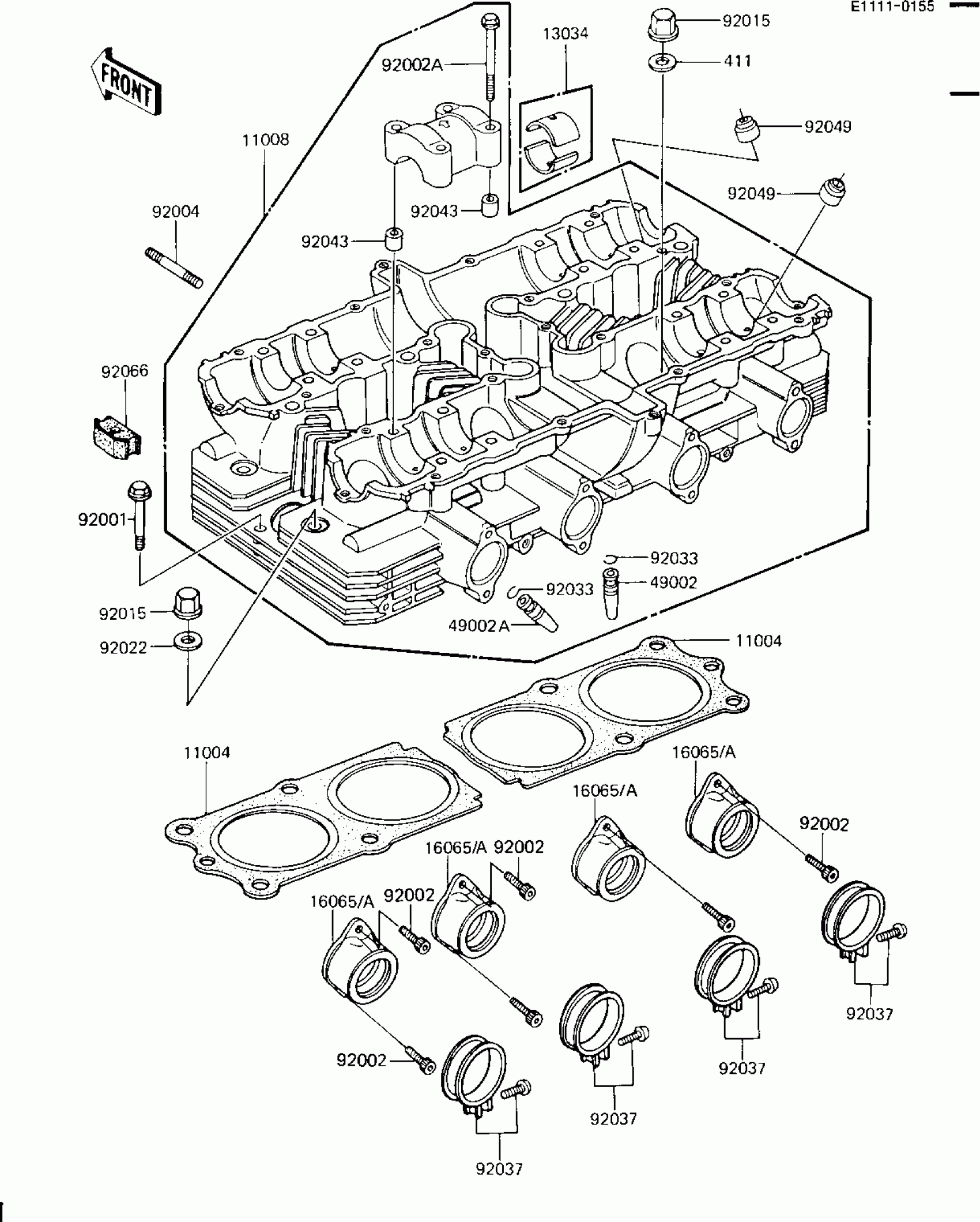

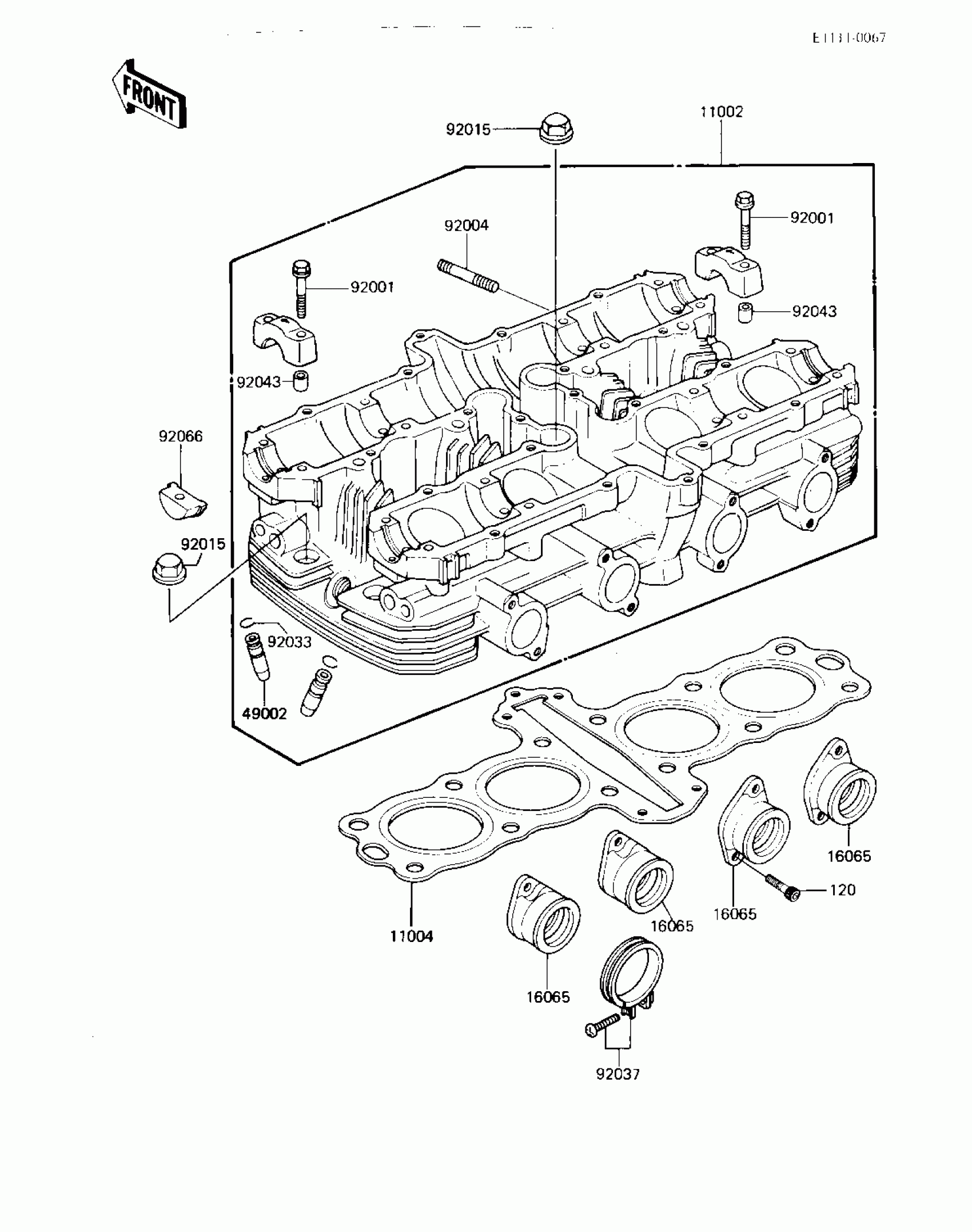

Kawasaki LTD Shaft CYLINDER HEAD Diagram

Description

Price

11004

GASKET-HEAD

11004-1119

$133.13

11008

HEAD-COMP-CYLINDER

11008-1118

Unavailable

13034

BUSHING,CAMSHAFT

13034-030

$22.16

16065A

HOLDER-CARBERTOR

16065-1131

$75.75

49002

GUIDE-VALVE,INTAKE

12013-009

$27.29

49002A

GUIDE-VALVE,EXHAUST

49002-1002

Unavailable

92001

BOLT,FLANGED,6X45

92003-092

$7.58

92002

BOLT,6X16

92002-1143

$3.92

92002A

BOLT,6X45

92002-1300

$7.58

92004

STUD,8X30

92004-1121

$5.46

92015

NUT,FLANGED CAP,10MM

92015-076

$13.08

92022

WASHER,10.5X22X1.6

92022-1005

$5.01

92033

RING-SNAP,VALVE GUIDE

92036-023

$0.48

92037

CLAMP,ID=53,BLACK

92037-1304

$10.28

92043

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92049

SEAL-OIL,RV37129.5

92049-016

$18.35

92066

PLUG,CYLINDER HEAD COVER

92066-1106

$28.22

411

UNAVAILABLE IN PRICE BOOK

411B100

Unavailable
