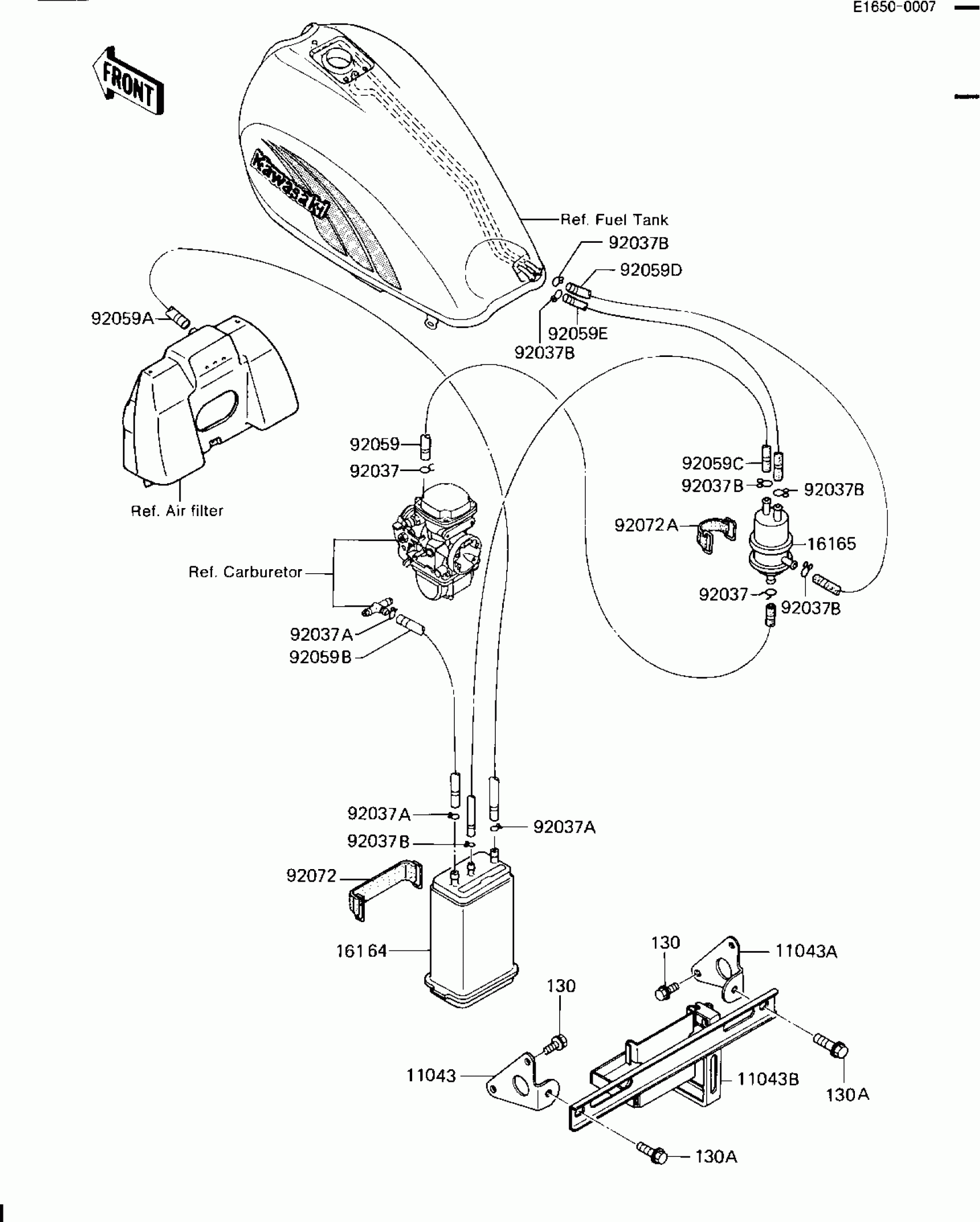

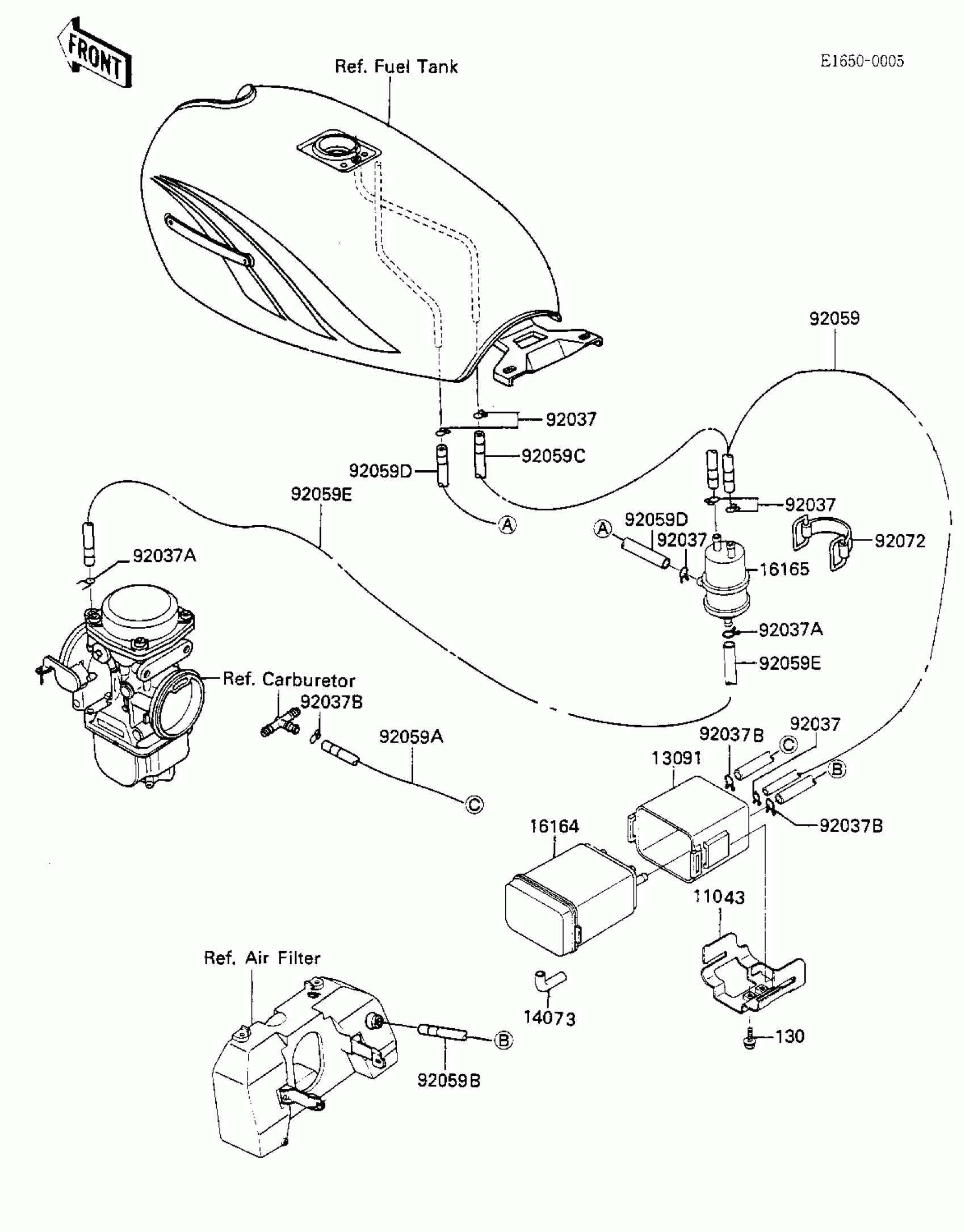

Kawasaki LTD Shaft CANISTER Diagram

Description

Price

11043

BRACKET

11043-1690

Unavailable

11043A

BRACKET

11043-1691

Unavailable

11043B

BRACKET,CANISTER&SEPA

11043-1692

Unavailable

16164

CANISTER

16164-1052

$131.28

16165

SEPARATOR

16165-1001

$90.01

92037

CLAMP,TUBE

92037-072

$7.22

92037A

CLAMP-HOSE

92037-1104

$1.45

92037B

CLAMP,TUBE

92037-147

$7.34

92059

TUBE

92059-1488

$19.09

92059A

TUBE,7X12X660

92059-1437

$41.13

92059B

TUBE,7X12X1060,GREEN

92059-1421

$41.13

92059C

TUBE,5X10X220,BLUE

92059-1525

$23.01

92059D

TUBE,5X10X660,RED

92059-1502

$23.01

92059E

TUBE,5X10X510,BLUE

92059-1527

$23.01

92072

BAND,L=142.1

92072-006

$12.76

92072A

BAND,L=50

92072-066

$16.08

130

BOLT-FLANGED,6X10

130B0610

$0.48

130A

BOLT

130B0612

$0.67
