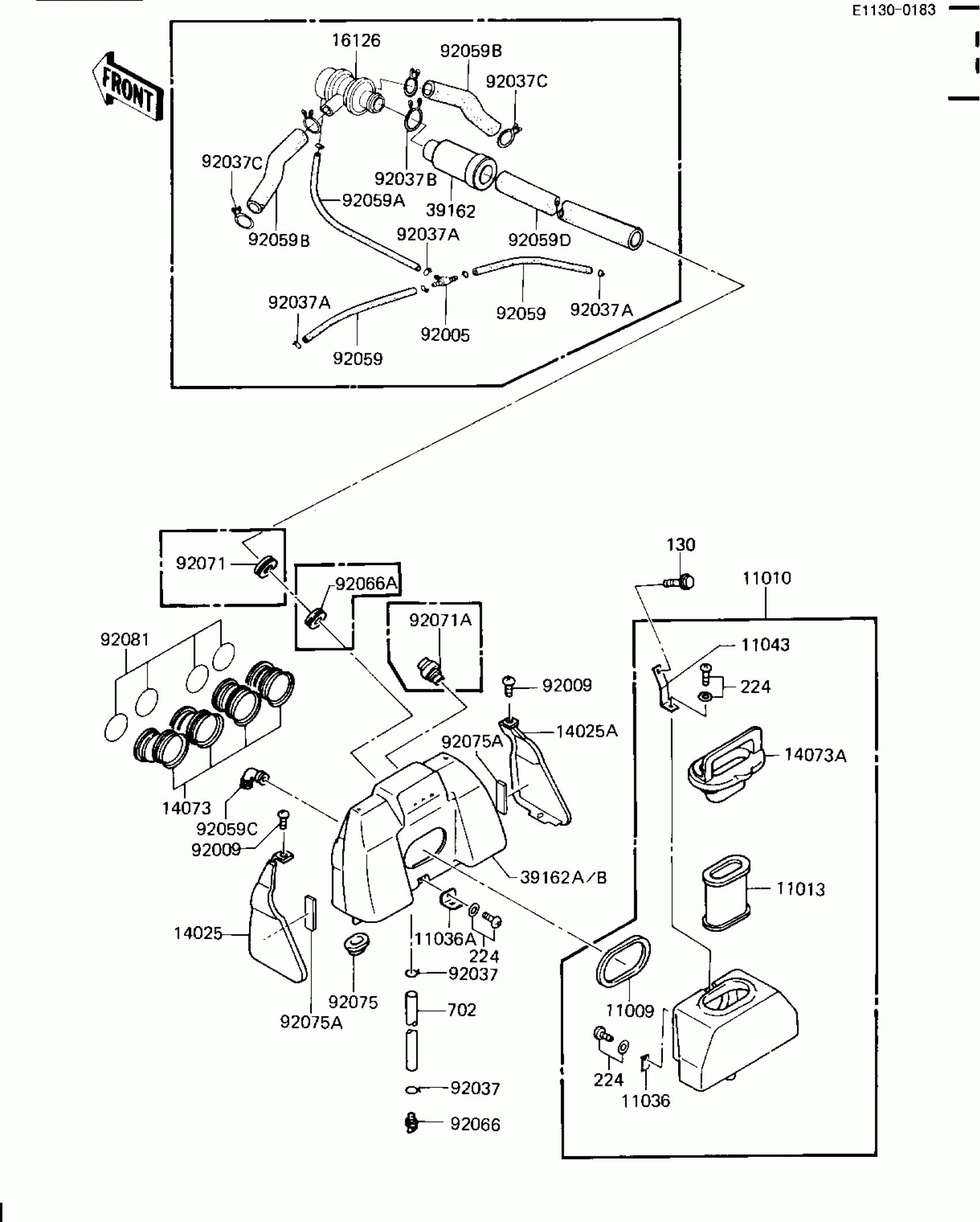

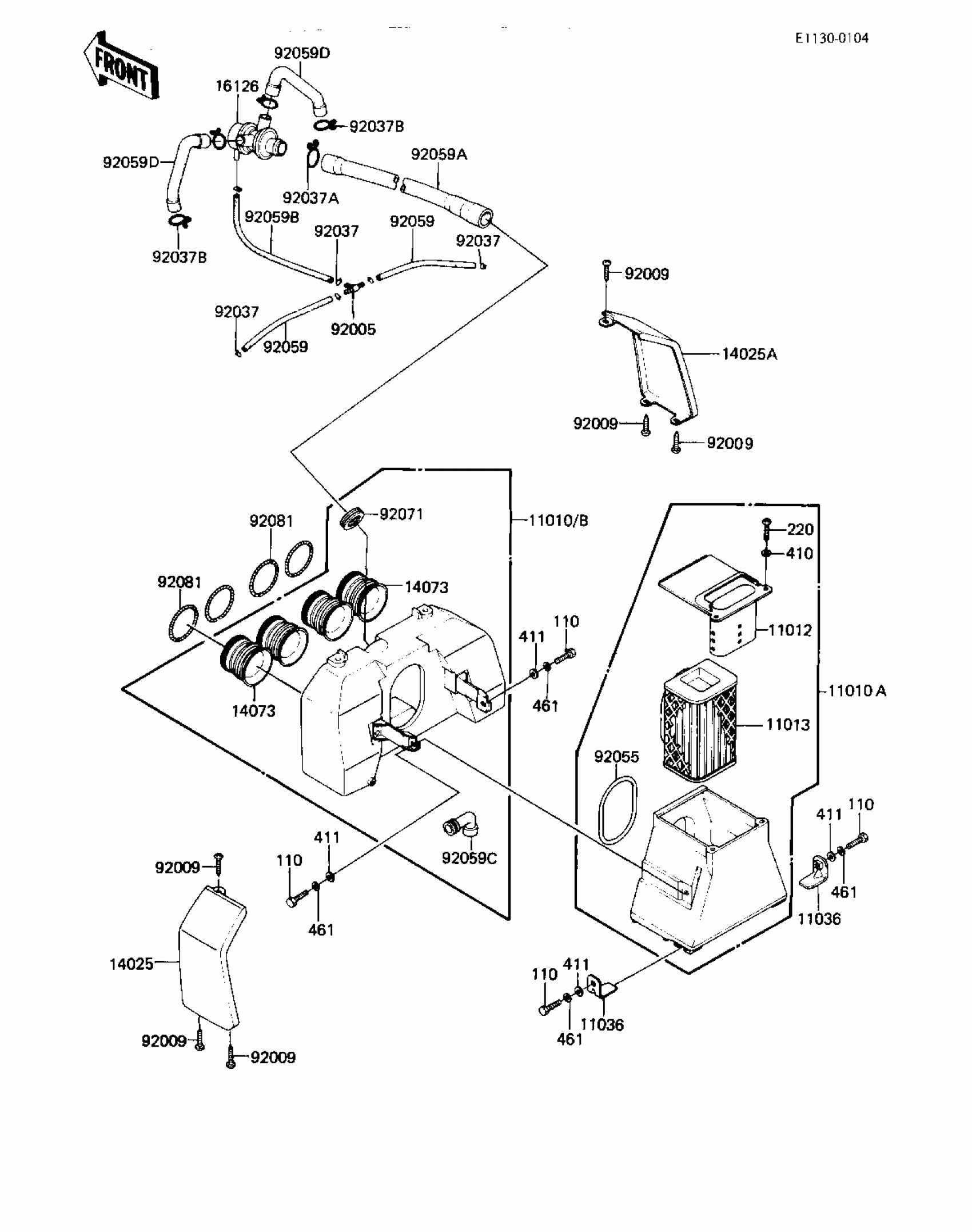

Kawasaki LTD Shaft AIR CLEANER Diagram

#

Description
Price

11009

GASKET,AIR FILTER

11009-1403

Unavailable

11010

FILTER-ASSY-AIR

11010-1224

Unavailable

11013

ELEMENT,AIR CLNR

11013-1040

Unavailable

11036

BRACKET-A,FILTER CASE

11036-1456

Unavailable

11036A

BRACKET-A,SILENCER

11036-1458

Unavailable

11043

BRACKET,AIR FILTER,UP

11043-1554

Unavailable

14025

COVER,INTAKE SILENCER

14025-1846

Unavailable

14025A

COVER,INTAKE SILENCER

14025-1847

Unavailable

14073

DUCT,AIR FILTER,OUTLE

14073-1048

$24.59

14073A

DUCT,AIR FILTER

14073-1173

$23.64

16126

VALVE,AIR SWITCH

16126-1014

$200.34

39162

SILENCER-INTAKE

39162-1003

$68.27

39162A

SILENCER-INTAKE

39162-1053

$105.44

39162B

SILENCER-INTAKE

39162-1055

$105.44

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92009

SCREW,TAPPING,5X12

92009-1319

Unavailable

92037

CLAMP,TUBE

92037-010

$3.92

92037A

CLAMP,TUBE

92037-072

$7.22

92037B

CLAMP,TUBE

92037-1076

$7.22

92037C

CLAMP,TUBE

92037-213

$4.31

92059

TUBE,VACUUM,LONG

92059-1162

$19.09

92059A

TUBE,VACUUM,LONG

92059-1162

$19.09

92059B

TUBE,14X20X89

92059-1155

$16.50

92059C

TUBE,AIR FILTER

92059-1156

$16.50

92059D

TUBE,14X20X340

92059-1171

Unavailable

92066

PLUG,DRAIN,AIR FILTER

92066-1121

Unavailable

92066A

PLUG

92074-027

$9.82

92071

GROMMET,AIR FILTER

92071-1042

$7.27

92071A

GROMMET,AIR FILTER

92071-1112

Unavailable

92075

DAMPER,SILENCER DRAIN

92075-1632

Unavailable

92075A

DAMPER,AIR FILTER COV

92075-1658

$4.86

92081

SPRING,COIL,BLACK

92081-1457

$11.40

130

BOLT-FLANGED

130B0614

Unavailable

224

SCREW-PAN-WP-CROS

224B0514

$4.12

702

TUBE-RUBBER 5X400

702A05400

$6.56
