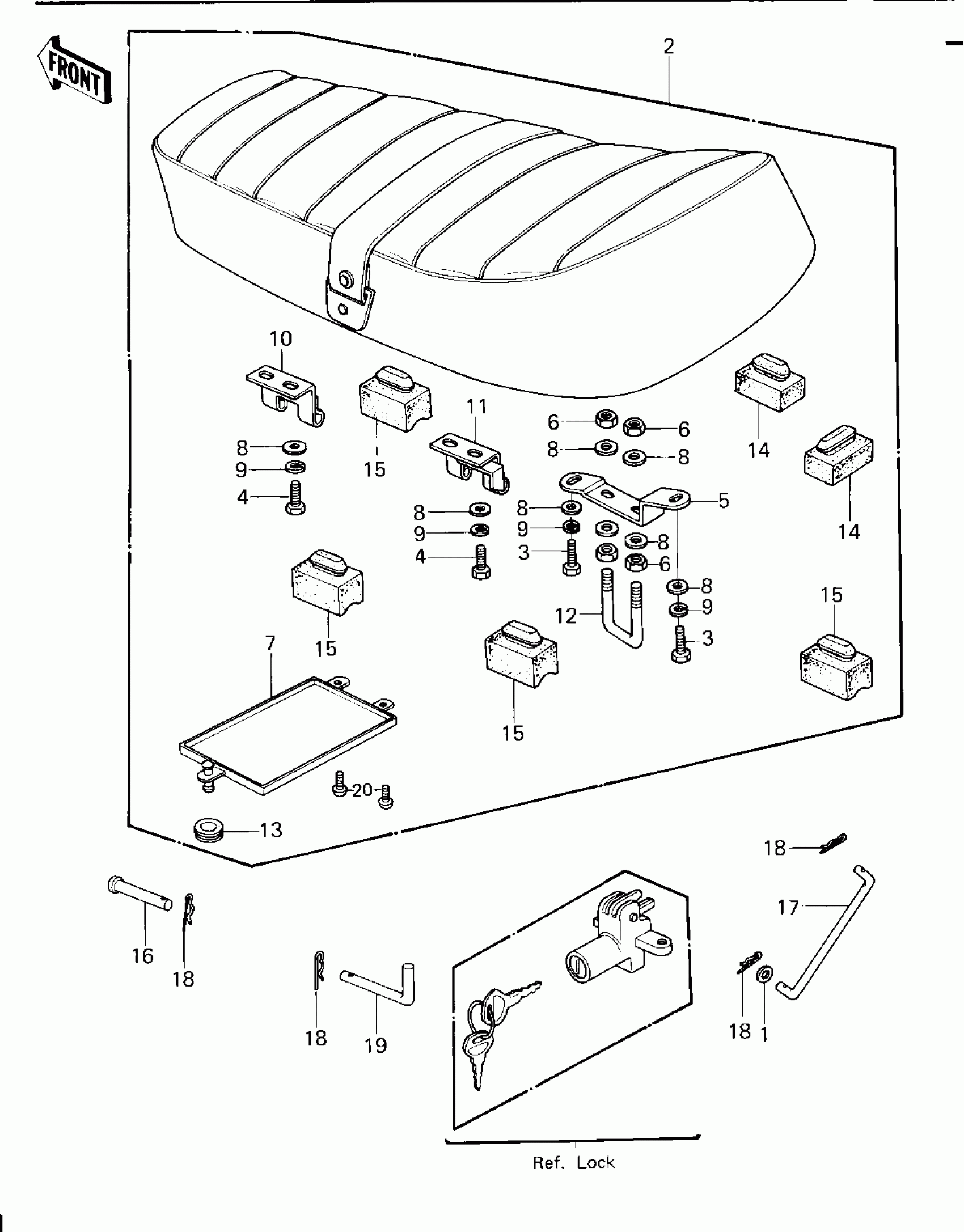

Kawasaki LTD SEAT Diagram

#

Description
Price

1

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

2

SEAT ASSY

53001-1135

$385.77

3

BOLT-UPSET 6X14

112B0614

Unavailable

4

BOLT-UPSET,6X16

112G0616

$1.10

5

BRACKET,SEAT

11034-1093

Unavailable

6

NUT 6MM

311B0600

$0.93

7

CASE,MANUAL

32099-011

$16.66

8

WASHER PLAIN 6MM

411B0600

$2.84

9

WASHER SPRING 6MM

461F0600

$0.69

10

HINGE

53009-016

Unavailable

11

HINGE,SEAT REAR

53009-1004

Unavailable

12

HOOK,SEAT

53056-002

$16.66

13

GROMMET

92071-056

$4.26

14

DAMPER

92075-099

$5.52

15

DAMPER RUBBER-SEAT

92075-156

Unavailable

16

PIN,6X48

53011-002

$5.96

17

STOPPER,SEAT

53054-006

Unavailable

18

PIN,SNAP

554A0600

$0.93

19

PIN,SEAT PIVOT

92043-1021

$5.38

20

SCREW PAN HEAD 5X10

220B0510

$0.69
