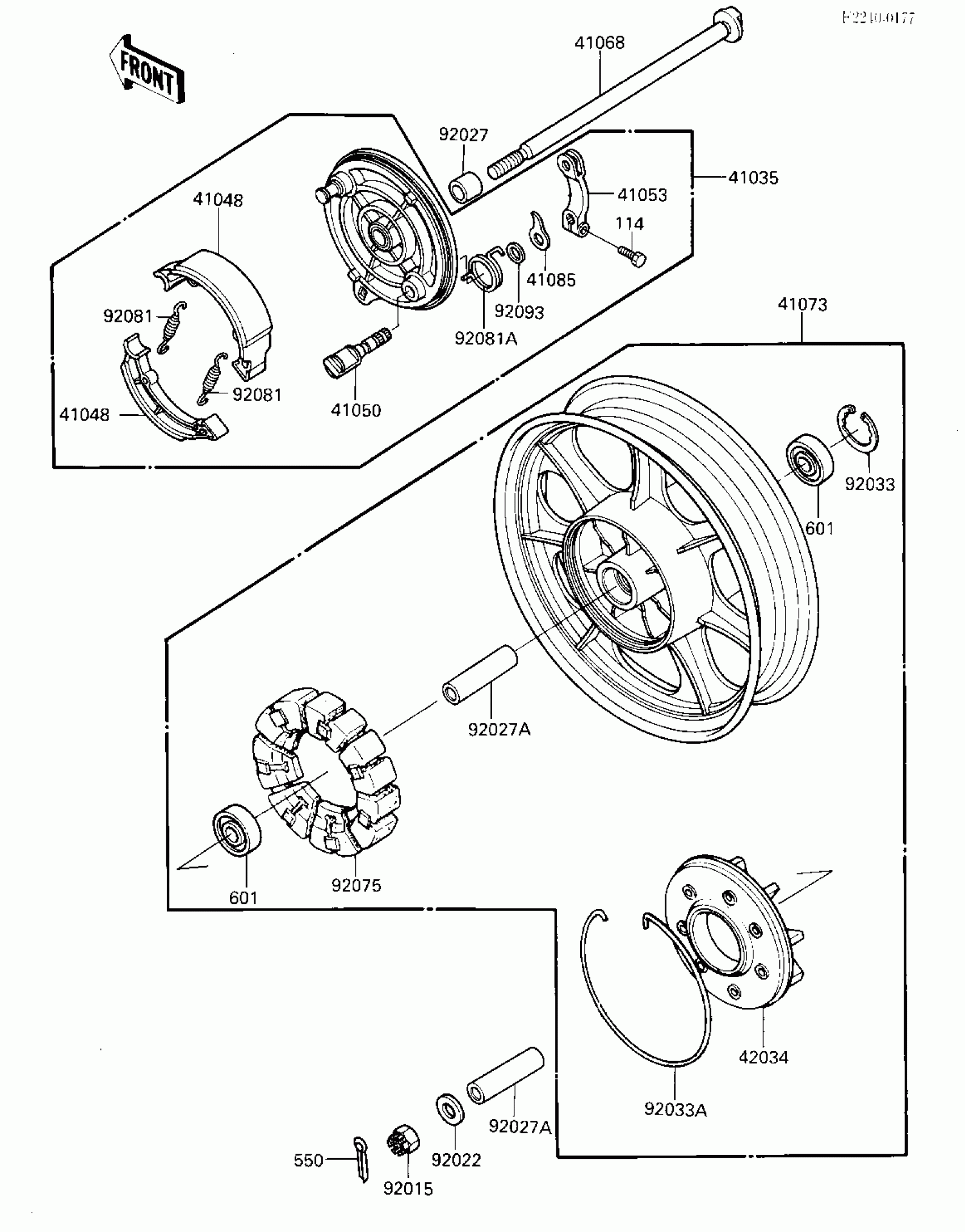

Kawasaki LTD REAR WHEEL/HUB/BRAKE Diagram

#

Description
Price

41035

PANEL-ASSY-BRAKE,RR

41035-1185

Unavailable

41048

SHOE-BRAKE

41048-1070

$37.86

41050

CAM-BRAKE

41050-1059

$40.02

41053

UNAVAILABLE IN PRICE BOOK

41053-1053

Unavailable

41066

AXLE,RR

41068-1191

$80.21

41073

WHEEL-ASSY,RR,F.BLACK

41073-1307-21

$670.82

41085

INDICATOR

41085-1054

$10.88

42034

COUPLING,RR HUB

42034-1029

$194.54

92015

NUT,16MM

92015-055

$11.03

92022

WASHER,17.3X32X3.2

42046-009

$7.71

92027

COLLAR

92027-1486

$18.08

92027A

COLLAR,17.2X25X74

92027-1867

$23.12

92033

RING-SNAP,47MM

92033-1042

$3.22

92033A

RING-SNAP,194MM

92033-1075

$11.94

92075

DAMPER,RR HUB SHOCK

92075-1372

$112.13

92081

SPRING,BRAKE SHOE

41049-012

$7.23

92081A

SPRING,BRAKE CAM LEVER RETURN

92081-1816

Unavailable

92093

SEAL,BRAKE CAM

41051-003

$3.25

114

BOLT HEX HEAD 8X28

114G0828

Unavailable

550

PIN-COTTER,4.0X35

550D4035

$1.81

601

BEARING-BALL,#6303ZZC3

601B6303ZZ

$41.16
