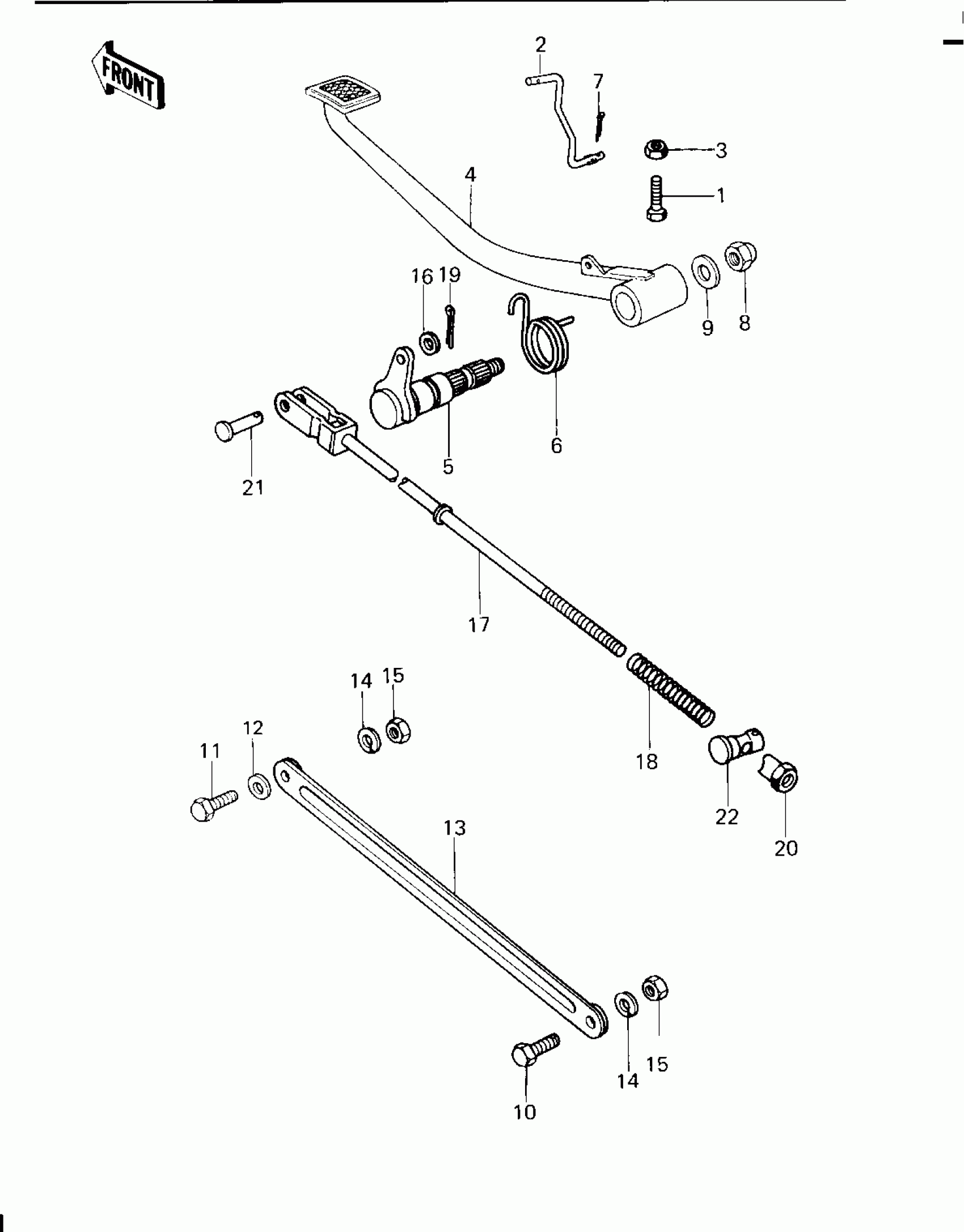

Kawasaki LTD BRAKE PEDAL/TORQUE LINK Diagram

#

Description
Price

1

BOLT-UPSET,6X20

112G0620

Unavailable

2

HOOK, BRAKE SWITCH

27012-1003

Unavailable

3

NUT 6MM

311B0600

Unavailable

4

PEDAL BRAKE

43001-1009

$204.96

5

SHAFT,BRAKE PEDAL

43004-012

$91.32

6

SPRING,BRAKE PEDAL

43005-022

Unavailable

7

PIN COTTER 1.6X10

550D1610

Unavailable

8

NUT,CAP AND LOCK,8MM

92019-013

$11.31

9

WASHER,8.5X20X1.6

92022-1561

$3.29

10

BOLT,HEX HEAD 10X35

92001-1252

Unavailable

11

BOLT,HEX HEAD,10X25

113G1025

Unavailable

12

WASHER PLAIN 10MM

410B1000

Unavailable

13

TORQUE LINK REAR BRK

43007-016

Unavailable

14

WASHER SPRING 10MM

461F1000

Unavailable

15

NUT,LOCK,10MM

92019-021

$4.59

16

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

17

ROD-BRAKE

43011-009

$21.81

18

SPRING,BRAKE ROD

43012-001

$3.54

19

PIN COTTER 2.0X15

550D2015

Unavailable

20

NUT,BRAKE ROD

92015-042

$4.67

21

PIN,6X17

92043-064

$3.57

22

PIN,BRAKE ROD

92043-065

$4.23
