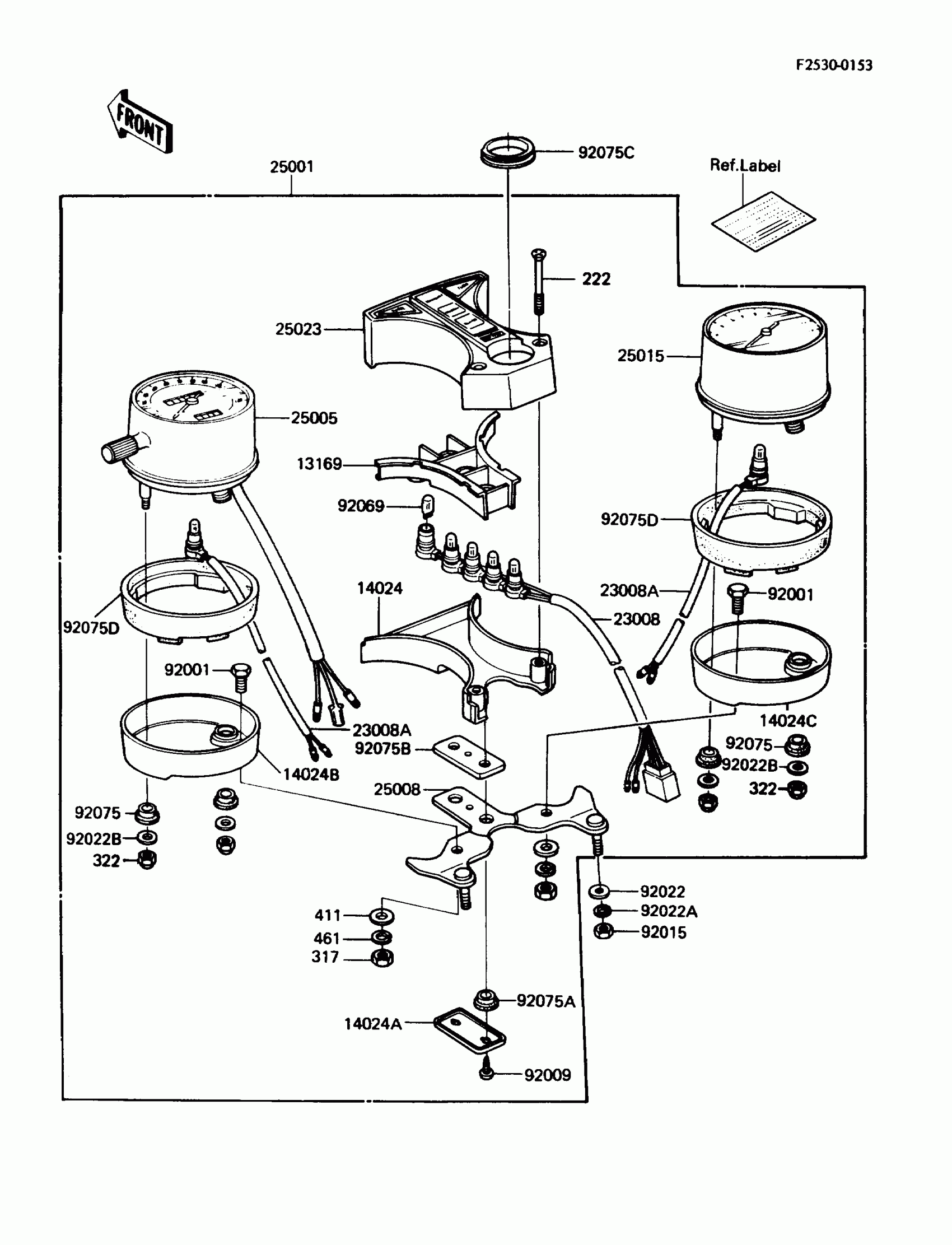

Kawasaki LTD Meter(s) Diagram
#
Description
Price
13169
PLATE,SOCKET
13169-1133
Unavailable
14024
COVER,PILOT BOX,LWR
14025-1093
Unavailable
14024A
COVER,PILOT BOX,DAMPER
14025-1096
Unavailable
14024B
COVER,SPEEDOMETER,CR-PLATED
14025-1322
Unavailable
14024C
COVER,TACHOMETER,CR-PLATED
14025-1323
Unavailable
23008
SOCKET-ASSY,PILOT BOX
23008-1119
$42.41
23008A
SOCKET-ASSY,METER
23008-1158
$13.74
25001
METER-ASSY,MPH
25001-1683
$749.04
25005
SPEEDOMETER,MPH
25005-1353
$273.45
25008
BRACKET-METER
25008-1021
$61.04
25015
TACHOMETER,X1000R/MIN
25015-1036
$334.79
25023
COVER,PILOT BOX,UPP
25023-1008
Unavailable
92001
BOLT,8X16
92001-1154
$3.02
92009
SCREW,TAPPING,4X10
92009-1040
$3.69
92015
NUT,6MM
92015-1391
$2.49
92022
WASHER,6.5X13X1
92022-1544
Unavailable
92022A
WASHER,SPRING,6MM
92022-1580
$0.71
92022B
WASHER,5.2X18X1.2
92022-285
$7.88
92069
BULB,12V 3.4W,T10
92069-1007
$5.00
92075
DAMPER,METER
25019-013
$5.72
92075A
DAMPER,METER
25019-023
$4.29
92075B
DAMPER,PILOT BOX
92075-1136
$6.30
92075C
DAMPER,PILOT BOX
92075-1204
Unavailable
92075D
DAMPER,METER
92075-1498
Unavailable
222
SCREW-CSK-RD-CROS,4X45
222C0445
$2.73
317
NUT-HEX-SMALL,8MM
317B0800
$0.67
322
NUT-CAP,5MM
322N0500
$2.85
411
WASHER PLAIN 8MM
411B0800
$0.93
461
WASHER SPRING 8MM
461F0800
$0.40
