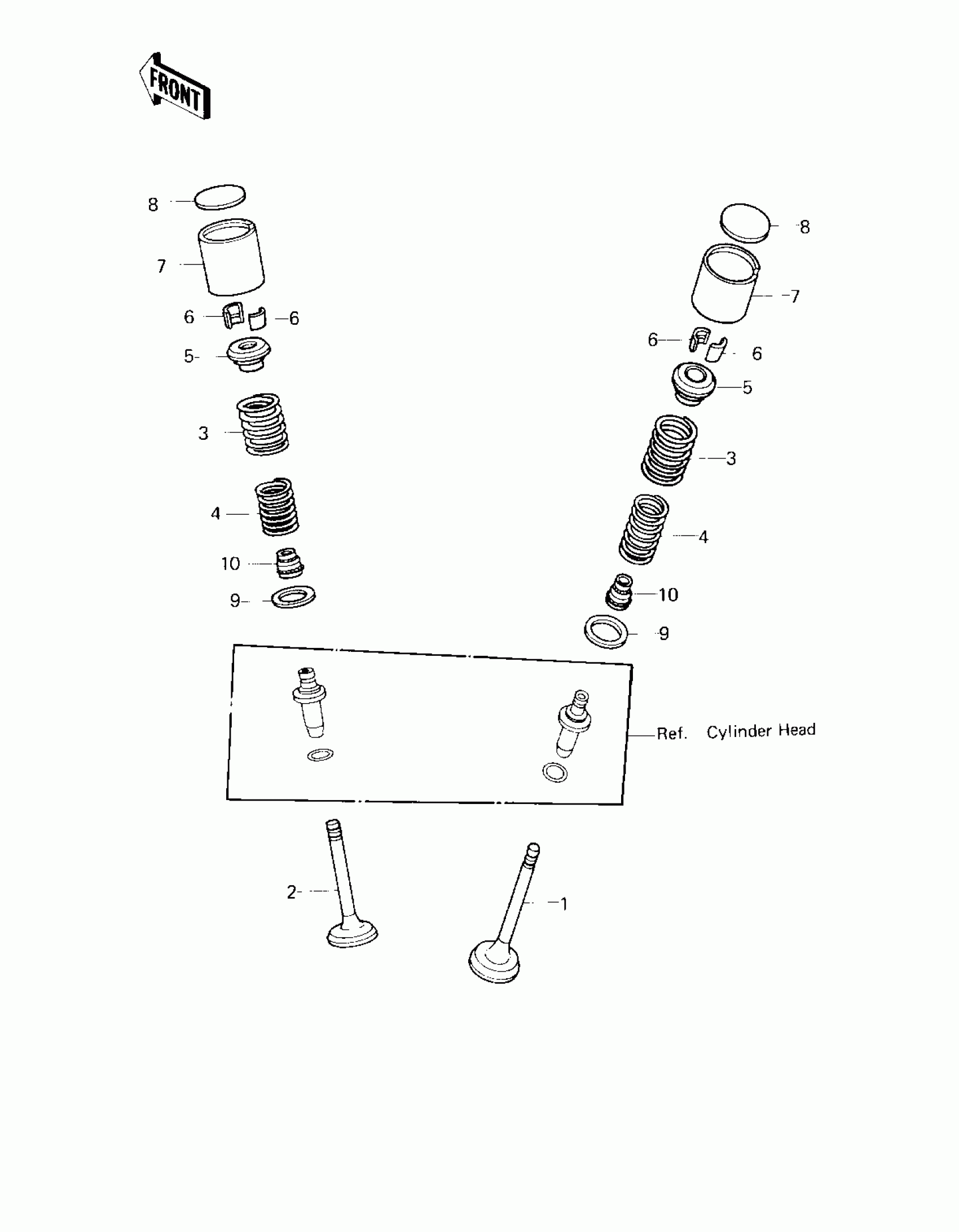

Kawasaki LTD II VALVES Diagram
#
Description
Price
1
VALVE,INLET
12004-014
Unavailable
2
VALVE,EXHAUST
12005-007
Unavailable
3
SPRING,OUTER VALVE
12007-015
Unavailable
4
SPRING,INNER VALVE
12007-016
Unavailable
5
RETAINER,VALVE SPRING
12009-007
Unavailable
6
COLLAR,VALVE SPRING
12011-003
Unavailable
7
TAPPET
12032-006
Unavailable
8
SHIM,2.20T
12037-051
Unavailable
8
SHIM,2.25T
12037-052
Unavailable
8
SHIM,2.30T
12037-053
Unavailable
8
SHIM,2.35T
12037-054
Unavailable
8
SHIM,2.40T
12037-055
Unavailable
8
SHIM,2.45T
12037-056
Unavailable
8
SHIM,2.50T
12037-057
Unavailable
8
SHIM,2.55T
12037-058
Unavailable
8
SHIM,2.60T
12037-059
Unavailable
8
SHIM,2.65T
12037-060
Unavailable
8
SHIM,2.70T
12037-061
Unavailable
8
SHIM,2.75T
12037-062
Unavailable
8
SHIM,2.80T
12037-063
Unavailable
8
SHIM,2.85T
12037-064
Unavailable
8
SHIM,2.90T
12037-065
Unavailable
8
SHIM,2.95T
12037-066
Unavailable
8
SHIM,3.00T
12037-067
Unavailable
8
SHIM,3.05T
12037-068
Unavailable
8
SHIM,3.10T
12037-069
Unavailable
8
SHIM,3.15T
12037-070
Unavailable
8
SHIM,3.20T
12037-071
Unavailable
8
SHIM,3.25T
12037-072
Unavailable
8
SHIM,3.30T
12037-073
Unavailable
8
SHIM,3.35T
12037-074
Unavailable
8
SHIM,3.40T
12037-075
Unavailable
9
WASHER,PLAIN
92022-309
$4.68
10
OIL SEAL,VALVE
92049-017
Unavailable
