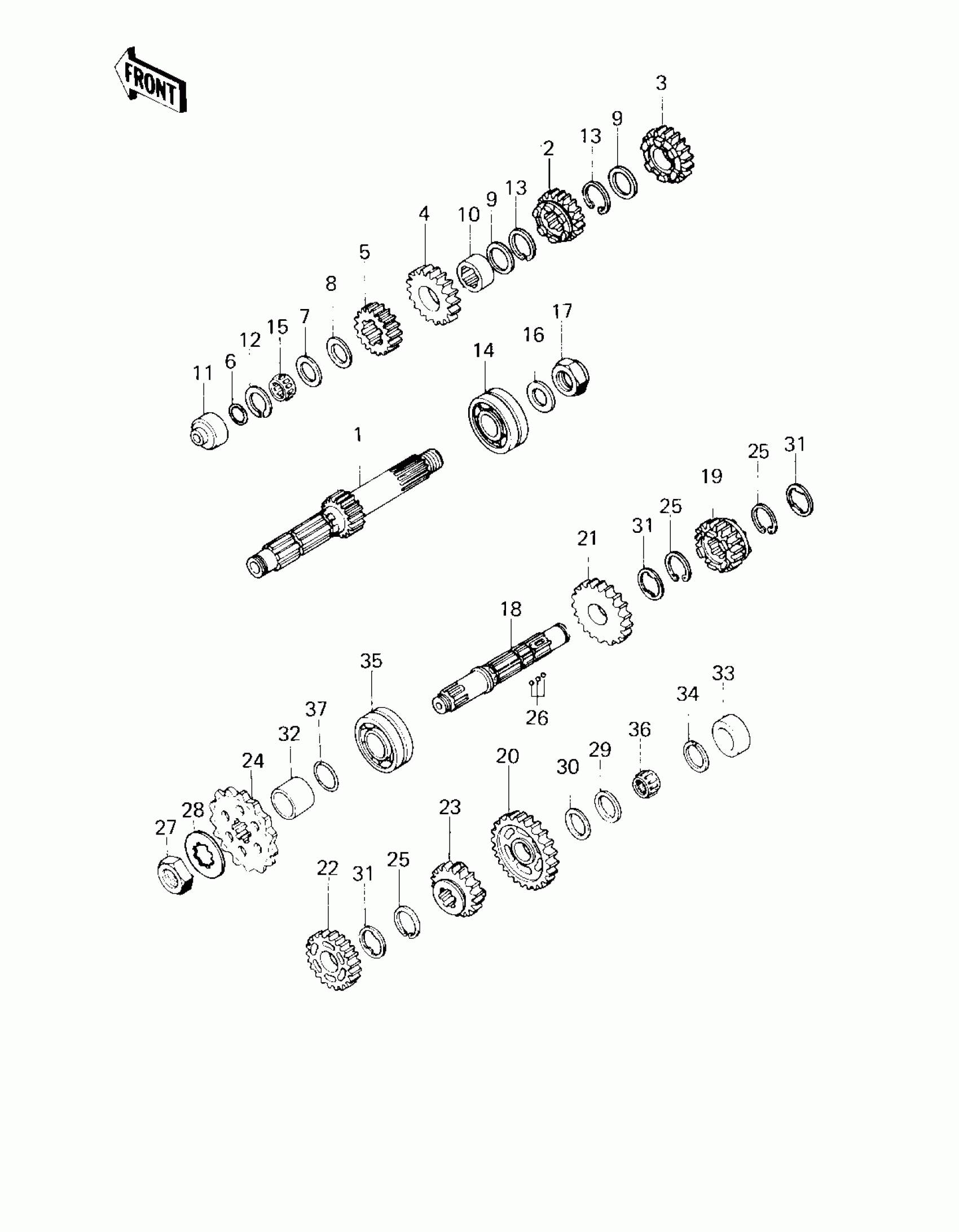

Kawasaki LTD II TRANSMISSION Diagram

#

Description
Price

1

SHAFT,DRIVE

13127-051

Unavailable

2

3RD GEAR,DRIVE SHAFT

13129-1032

Unavailable

3

4TH GEAR,DRIVE SHAFT

13129-1044

Unavailable

4

TOP GEAR,DRIVE SHAFT

13129-1045

Unavailable

5

GEAR,INPUT 2ND,19T

13130-041

Unavailable

6

O RING,7MM

670B1507

$1.28

7

WASHER,20.5X30X1,STEEL

92022-112

Unavailable

7

WASHER,20.5X30X0.5,STEEL

92022-144

Unavailable

7

WASHER,20.3X30X0.7,STEEL

92022-1026

Unavailable

8

WASHER THRUST

92022-113

Unavailable

9

WASHER,25.3X30X1

92022-161

$10.65

10

BUSHING,INPUT TOP GEAR

92028-1007

$29.67

11

BUSHING,DRIVE SHAFT

92028-179

Unavailable

12

RING-SNAP,20MM

92033-015

$4.26

13

RING-SNAP,24MM

92033-026

$8.79

14

BEARING-BALL,83993SH2-CS

92045-035

$73.57

15

BEARING-NEEDLE,VS20/14A

92046-1030

$25.43

16

WASHER

92125-002

Unavailable

17

NUT,20MM

92015-1555

$13.08

18

SHAFT,OUTPUT

13128-1012

Unavailable

19

TOP GEAR,OUTPUT SHAFT

13129-1033

Unavailable

20

GEAR,OUTPUT LOW,35T

13129-1046

Unavailable

21

GEAR,OUTPUT 2ND,31T

13129-1047

Unavailable

22

GEAR,OUTPUT 3RD,28T

13129-1048

Unavailable

23

GEAR,OUTPUT 4TH,26T

13129-1049

Unavailable

24

ENGINE SPROCKET,16T

13144-063

$87.88

24

SPROCKET-OUTPUT,17T(#530)

13144-1009

Unavailable

25

CIRCLIP-TYPE-C,30MM

480J3000

$6.22

26

BALL-STEEL,5/32

600A0500

$0.81

27

NUT,20MM

92015-1254

$14.90

28

WASHER

92200-1065

$6.63

29

WASHER,20.5X30X1,STEEL

92022-112

Unavailable

29

WASHER,20.5X30X0.5,STEEL

92022-144

Unavailable

30

WASHER THRUST

92022-113

Unavailable

31

WASHER,TOOTHED,30.5X38X1

92024-069

$6.15

32

COLLAR,ENG SPROCKET

92027-288

$39.34

33

BUSHING,26X34X16.6

92028-180

$28.82

34

RING-SNAP,20MM

92033-015

$4.26

35

BEARING-BALL,83993SH2-CS

92045-035

$73.57

36

BEARING,BALL,KT17231

92046-035

$12.33

37

RING-O

92055-035

$5.00
