1980 Kawasaki LTD Ii Swing Arm/shock Absorbers Diagram

← All diagrams

Find the part on the Swing Arm/shock Absorbers diagram for your 1980 Kawasaki LTD Ii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

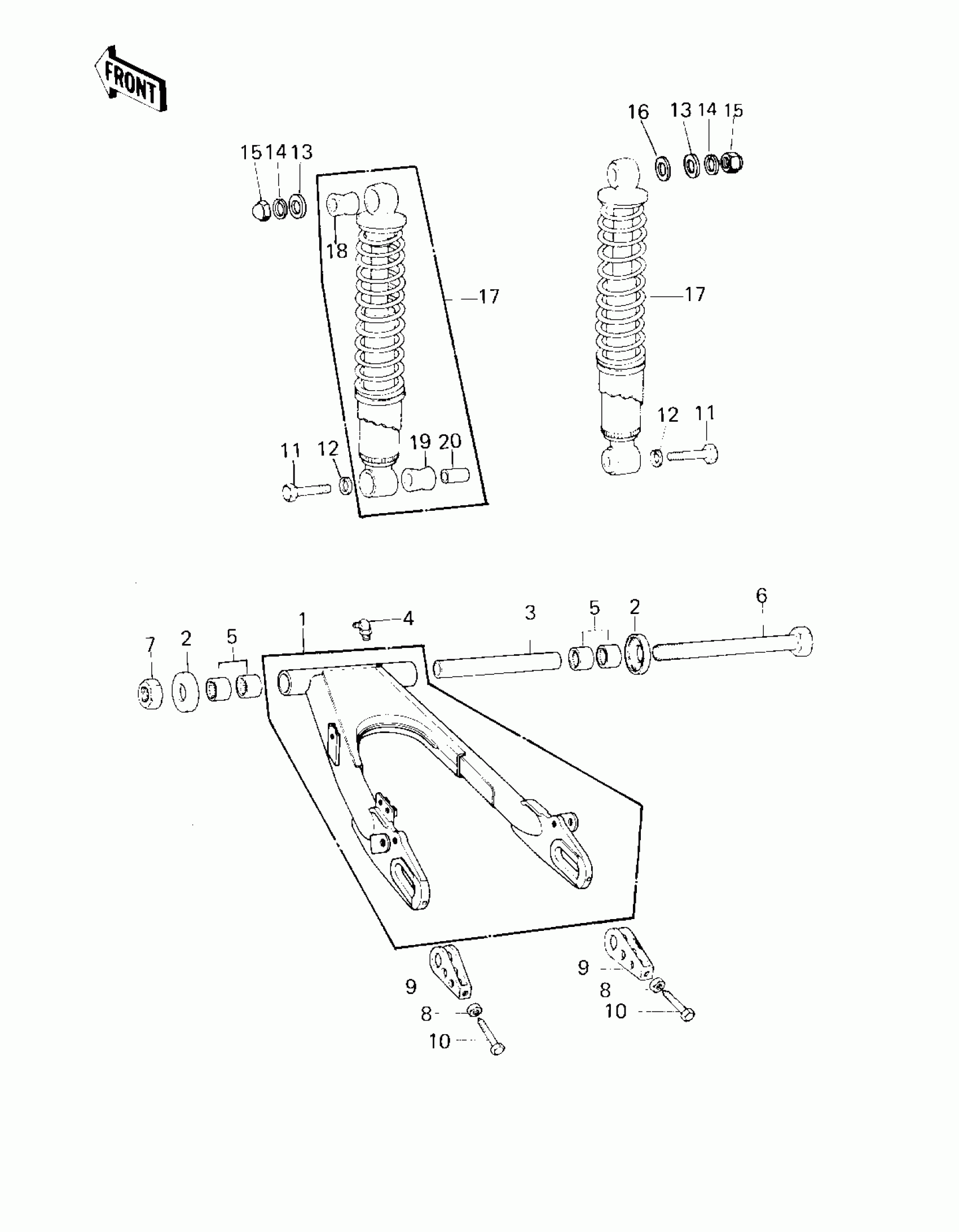

1980 Kawasaki LTD Ii Swing Arm/shock Absorbers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWING ARM

33001-1040

1

$285.35

In stock

2

CAP,SWING ARM

33035-009

1
Out of stock

3

SLEEVE,SWING ARM

42036-1014

1
Out of stock

4

GREASE NIPPLE

92005-002

1
Out of stock

5

BEARING-NEEDLE,HK2216

92046-1115

1
Out of stock

6

SHAFT,SWING ARM PIVO

33032-047

1
Out of stock

7

NUT-SELF LOCKING

92019-012

1

$24.14

In stock

8

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

9

ADJUSTER-CHAIN

33040-066

1
Out of stock

10

BOLT,10X50

92001-143

1

$18.44

In stock

11

BOLT HEX HEAD 10X35

113N1035

1
Out of stock

12

WASHER SPRING 10MM

461F1000

1
Out of stock

13

WASHER-PLAIN,10MM

411B1000

1
Out of stock

14

WASHER SPRING 10MM

461F1000

1
Out of stock

15

NUT,CAP,10MM

92020-003

1

$5.16

In stock

16

WASHER,10.5X22X4.5

92022-1022

1

$4.61

In stock

17

SHOCK ABSBR RR

45014-1042

1

$421.89

In stock

18

DAMPER,SHOCKABSORBER

45017-015

1
Out of stock

19

1

$14.14

In stock

20

1

$9.58

In stock
