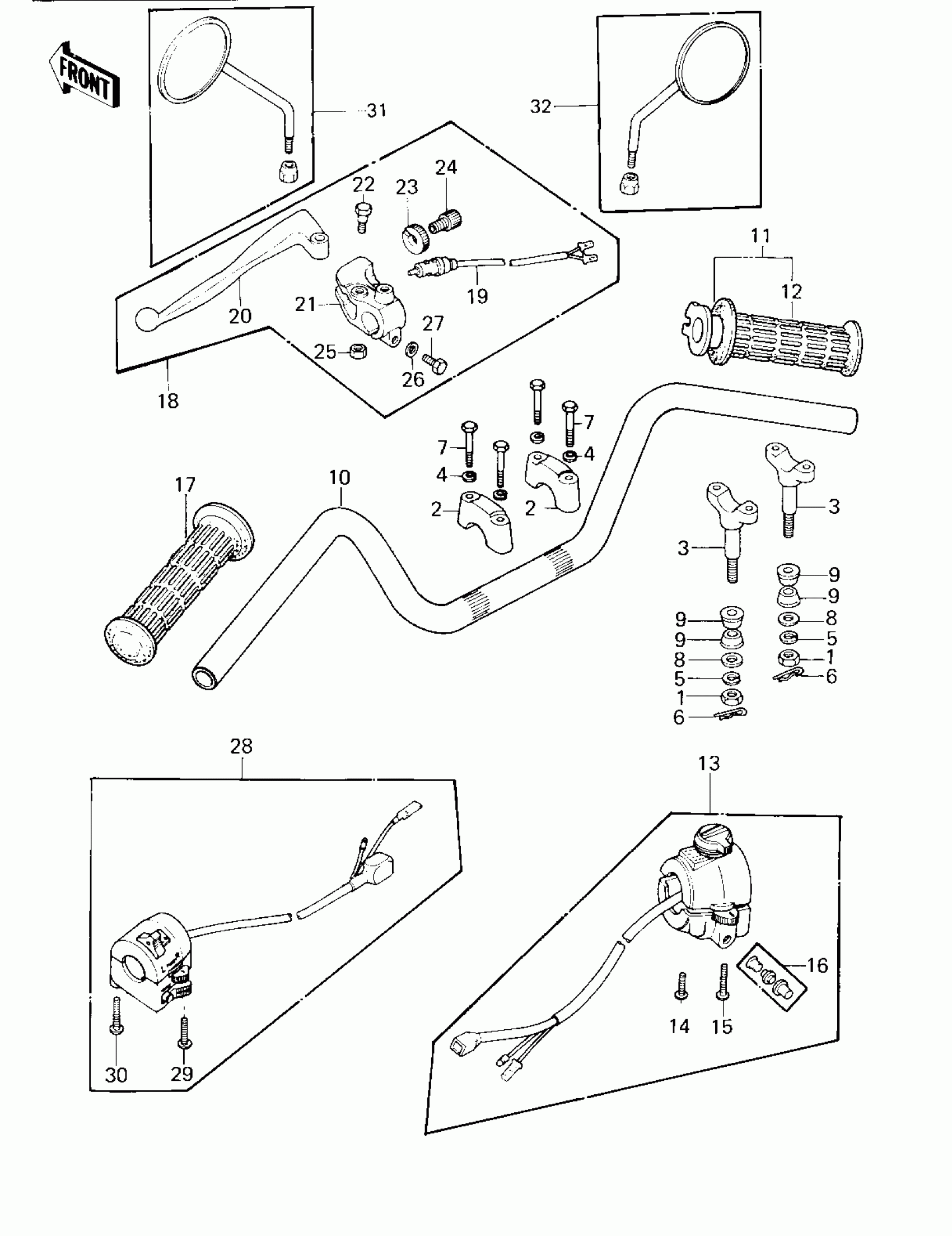

Kawasaki LTD II HANDLEBAR Diagram

#

Description
Price

1

NUT-HEX-FINE,10MM

315B1000

Unavailable

2

HOLDER-HANDLE,UPP

46012-008

$33.69

3

HOLDER-HANDLE,LWR

46012-010

$31.36

4

WASHER SPRING 8MM

461F0800

Unavailable

5

WASHER SPRING 10MM

461F1000

Unavailable

6

PIN-SNAP,8MM

554A0800

Unavailable

7

BOLT 8X38

92001-1405

$12.52

8

WASHER-HANDLEBAR FIT

92022-196

Unavailable

9

DAMPER RUBBER,HANDLE

92075-275

Unavailable

10

HANDLEBAR

46003-1047

Unavailable

11

GRIP ASSY,THROTTLE

46019-038

Unavailable

12

RUBBER,R.H GRIP

46061-018

Unavailable

13

HOUSING ASSY,CONT,R.H

46091-1078

$141.70

14

SCREW PAN HEAD 5X30

220B0530

Unavailable

15

SCREW-PAN-CROS

220B0540

Unavailable

16

SWITCH,PUSH BUTTON

27010-1009

$7.01

17

RUBBER,L.H GRIP

46075-028

$40.75

18

LEVER ASSY,CLUTCH

46076-054

$104.73

19

SWITCH,CLUTCH

27043-002

Unavailable

20

LEVER-GRIP,CLUTCH

46092-023

$36.65

21

HOLDER,CLUTCH LEVER

46094-019

$72.21

22

BOLT,HEX HEAD

92007-047

Unavailable

23

NUT,CABLE ADUST NUT

46056-007

Unavailable

24

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

25

NUT,LOCK,6MM

92019-008

$3.12

26

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

27

BOLT HEX HEAD 6X25

110N0625

Unavailable

28

HOUSING ASSY,CONT,L.H

46091-1079

Unavailable

29

SCREW PAN HEAD 5X30

220B0530

Unavailable

30

SCREW-PAN-CROS

220B0535

$2.80

31

REAR VIEW MIRROR L.H

56001-1046

Unavailable

32

REAR VIEW MIRROR R.H

56001-1045

$22.17
