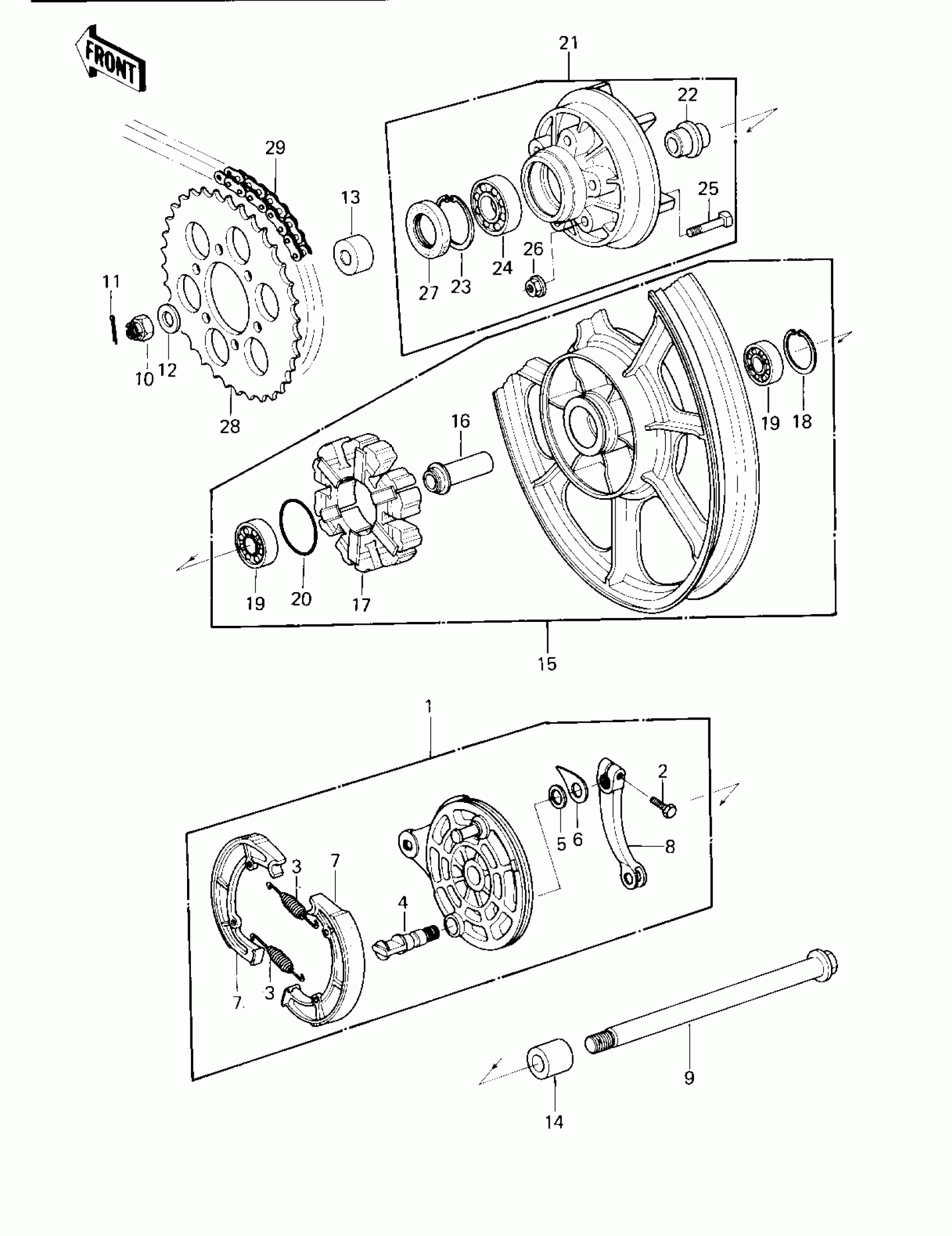

Kawasaki LTD II REAR WHEEL/HUB/BRAKE/CHAIN Diagram

#

Description
Price

1

PANEL-ASY,RR BRK

41035-1026

$334.15

2

BOLT HEX HEAD 8X28

114G0828

Unavailable

3

SPRING,BRAKE SHOE

41049-012

$7.23

4

CAM-BRAKE

41050-017

Unavailable

5

SEAL,BRAKE CAM

41051-003

$3.25

6

INDICATOR,BRAKE SHOE

41085-004

Unavailable

7

SHOE,BRAKE

42019-012

$37.86

8

LEVER-BRAKE CAM

42029-039

Unavailable

9

AXLE,REAR

41068-1027

$80.81

10

NUT,CASTLE,18MM

42045-018

$7.01

11

PIN-COTTER,4.0X35

550D4035

$1.57

12

WASHER,20.3X34X4.5

92022-248

Unavailable

13

COLLAR,REAR AXLE L.H

92027-1211

Unavailable

14

COLLAR,REAR AXLE,R.H

92027-1212

Unavailable

15

SOLID WHEEL ASSY,REA

41073-1059

$376.97

16

COLLAR,RR HUB BEARING

42010-040

Unavailable

17

SHOCK DAMPER

42014-032

Unavailable

18

RING-SNAP,52MM

92033-1043

$6.15

19

BEARING-BALL,#6304ZZC3

601B6304ZZ

Unavailable

20

O RING,60MM

671B2560

$5.13

21

COUPLING ASSY,REAR

42033-1012

$137.67

22

SLEEVE,REAR COUPLING

42036-1027

Unavailable

23

RING-SNAP,62MM

92033-1044

$8.59

24

BALL BEARING,#6206

601B6206

$17.84

25

BOLT,10X41

92001-161

Unavailable

26

NUT,FLANGED,10MM

92015-1415

$3.57

27

SEAL-OIL,AJN40627

92050-027

$16.96

28

SPROCKET,REAR,38T

42041-1054

$119.67

29

CHAIN,530X106 SH-D

92057-1044

$433.04
