Description

Price

1

BOLT (6X10)

110R0610

$3.44

2

COVER,MUFFLER L.H

14025-1194

Unavailable

3

COVER,MUFFLER R.H

14025-1195

Unavailable

4

MUFFLER,LH

18001-1086

$511.00

5

MUFFLER,RH

18001-1087

$511.00

6

PIPE

32032-1752

Unavailable

7

GASKET,EXHAUST PIPE H

11009-1840

$8.17

8

HOLDER,EXHAUST PIPE

18069-060

Unavailable

9

WASHER-PLAIN,6MM

411D0600

$2.06

10

SCREW,PAN HEAD,6X8

92011-039

Unavailable

11

NUT,LOCK,8MM

92017-013

$10.35

12

COLLAR,EXHAUST PIPE

92027-1241

$7.20

13

CLAMP,PIPE,34.5MM

92037-1219

Unavailable

14

BOLT-SMALL-UPSET 8X25

115G0825

$5.05

15

WASHER SPRING 8MM

461F0800

$0.40

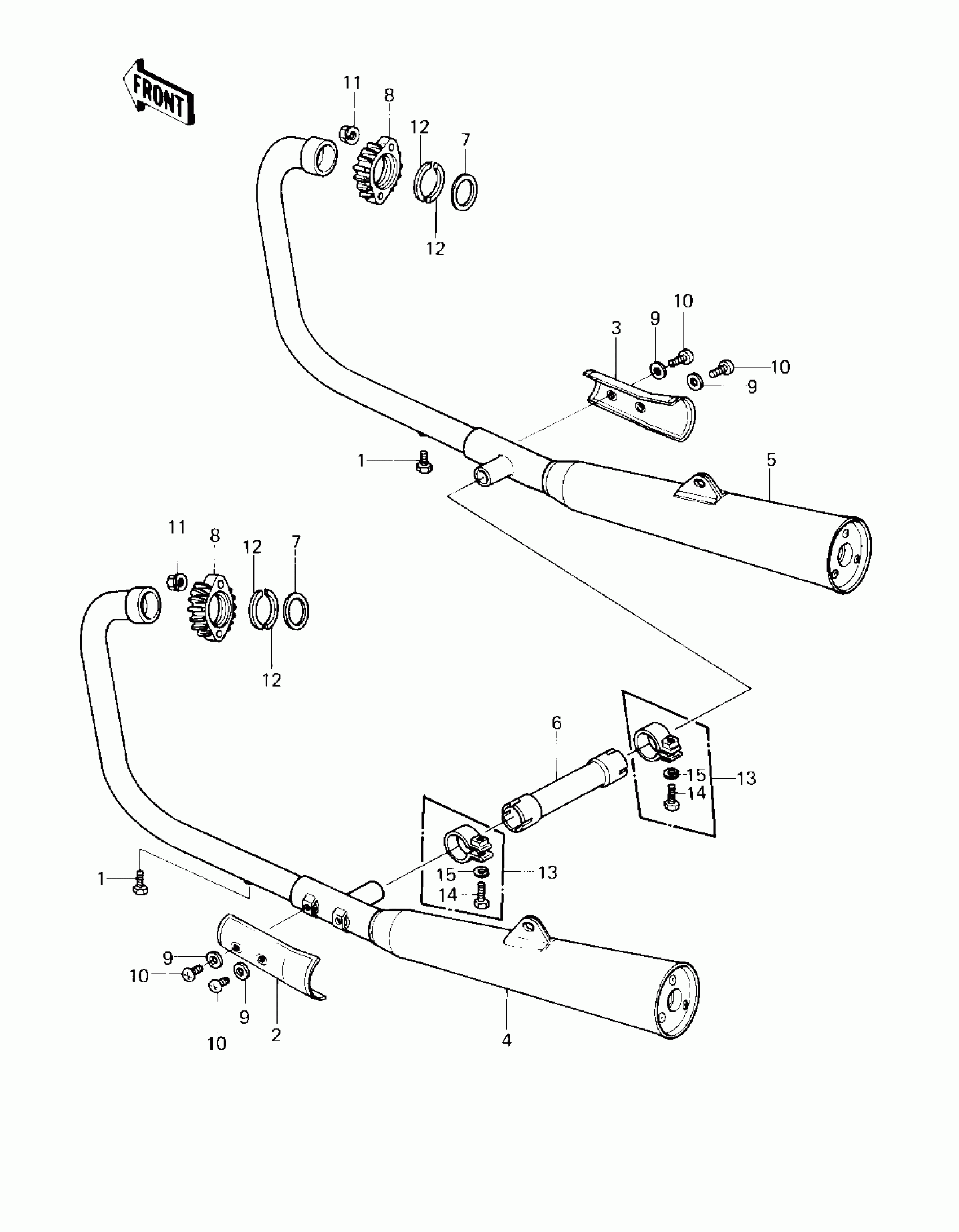

Kawasaki LTD II MUFFLERS Diagram

BOLT (6X10)

COVER,MUFFLER L.H

COVER,MUFFLER R.H

MUFFLER,LH

MUFFLER,RH

PIPE

GASKET,EXHAUST PIPE H

HOLDER,EXHAUST PIPE

WASHER-PLAIN,6MM

SCREW,PAN HEAD,6X8

NUT,LOCK,8MM

COLLAR,EXHAUST PIPE

CLAMP,PIPE,34.5MM

BOLT-SMALL-UPSET 8X25

WASHER SPRING 8MM
