Description

Price

1

LOCK SET,KZ750B4

27004-5029

$185.11

2

SWITCH-ASSY,IGNITION

27005-5006

$112.74

3

NUT,IGNITION SW LOCK

27007-004

Unavailable

4

LOCK-ASSY,STEERING

27016-5009

Unavailable

5

LOCK-ASSY,SEAT

27016-5010

Unavailable

6

BOLT-UPSET 6X14

112B0614

Unavailable

7

WASHER SPRING 6MM

461F0600

$0.69

8

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

9

CAP,STEERING LOCK

11012-1134

$6.87

10

SPRING,STEERING LOCK

27032-001

$5.25

11

SCREW,3.51MM

92008-007

$4.11

12

WASHER,WAVE

92097-003

$4.50

13

KEY-LOCK,BLANK

27008-1103

Unavailable

14

REFLECTOR-REFLEX,FR

28012-016

$23.25

15

DAMPER,REFLECTOR

92094-011

$4.60

16

SWITCH-BRAKE LAMP

27010-015

Unavailable

17

SPRING,BRAKE LAMP SWITCH

27011-011

$8.51

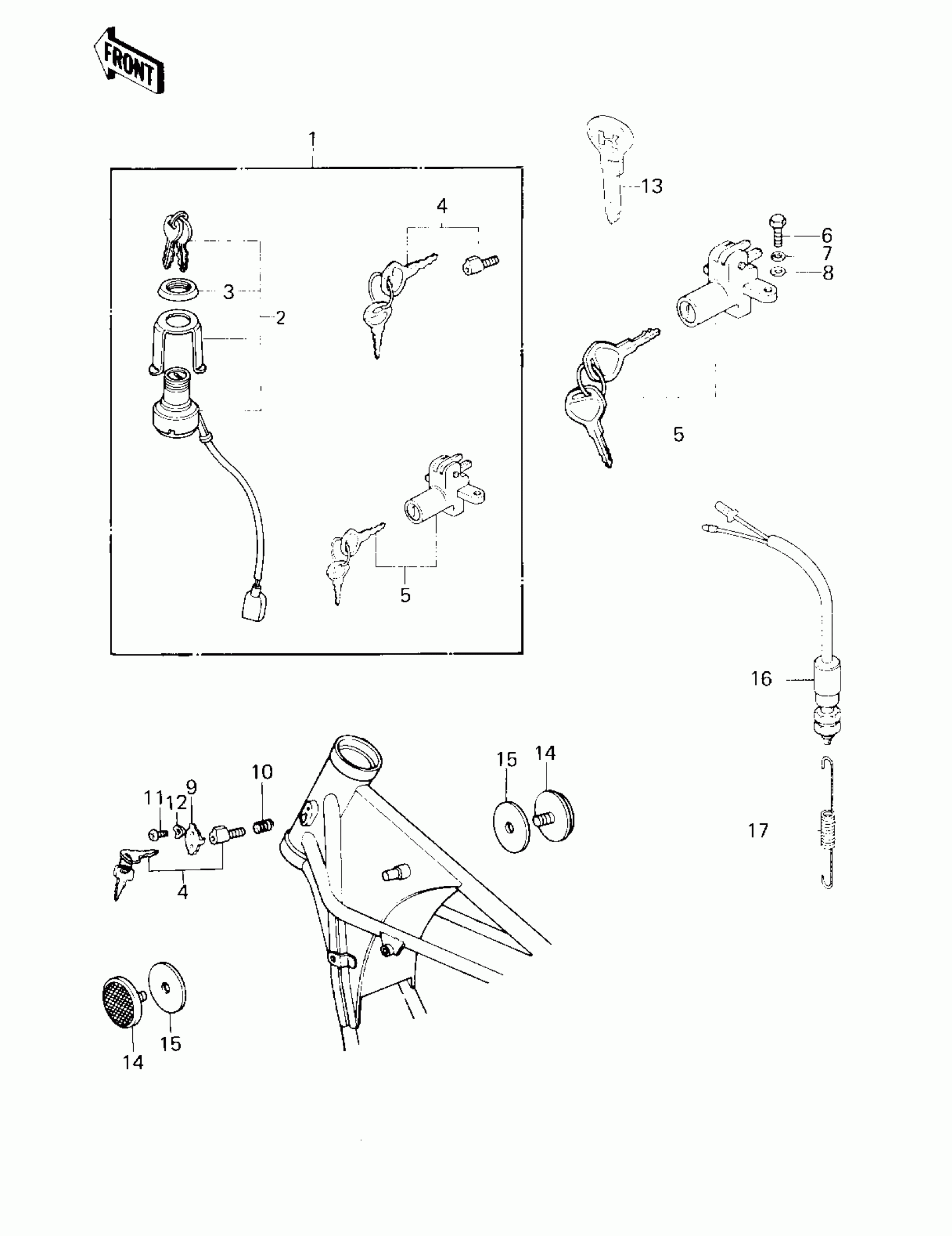

Kawasaki LTD II IGNITION SWITCH/LOCKS/REFLECTORS Diagram

LOCK SET,KZ750B4

SWITCH-ASSY,IGNITION

NUT,IGNITION SW LOCK

LOCK-ASSY,STEERING

LOCK-ASSY,SEAT

BOLT-UPSET 6X14

WASHER SPRING 6MM

WASHER-PLAIN-SMALL,6MM

CAP,STEERING LOCK

SPRING,STEERING LOCK

SCREW,3.51MM

WASHER,WAVE

KEY-LOCK,BLANK

REFLECTOR-REFLEX,FR

DAMPER,REFLECTOR

SWITCH-BRAKE LAMP

SPRING,BRAKE LAMP SWITCH
