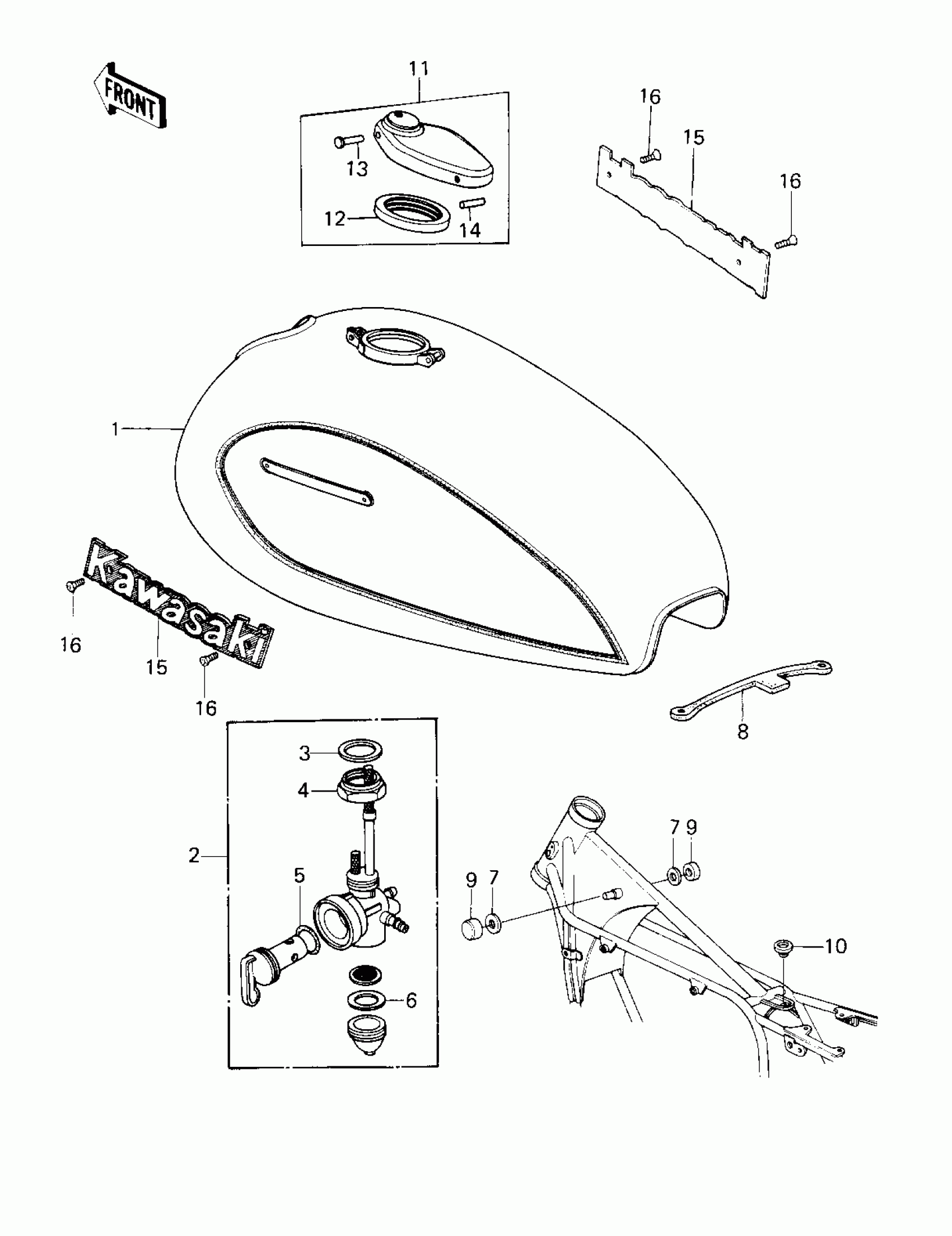

Kawasaki LTD II FUEL TANK Diagram

#

Description
Price

1

TANK-FUEL,L.RUBY RED

51001-106-D2

$680.78

2

COCK ASSY,FUEL

51023-050

Unavailable

3

GASKET-FUEL COCK JNT.

92065-081

$5.64

4

FUEL COCK JOINT NUT

51035-009

Unavailable

5

O RING,10MM

670B2010

$1.50

6

GASKET FUEL COCK CUP

51037-010

$5.64

7

WASHER,10.5X26X2.3

92022-044

$3.92

8

BAND,FUEL TANK

92072-042

$15.19

9

DAMPER,FUEL TANK

92075-125

$6.22

10

DAMPER RUBBER,FL TK

92075-274

Unavailable

11

CAP,FUEL TANK

51048-012

Unavailable

12

GASKET-FUEL TANK CAP

51059-008

$10.97

13

PIN,HOOK

92043-126

Unavailable

14

PIN,CAP HINGE

92043-127

$5.24

15

EMBLEM,FUEL TANK

56014-1037

Unavailable

16

SCREW-CSK-CROS

221C0306

$0.74
