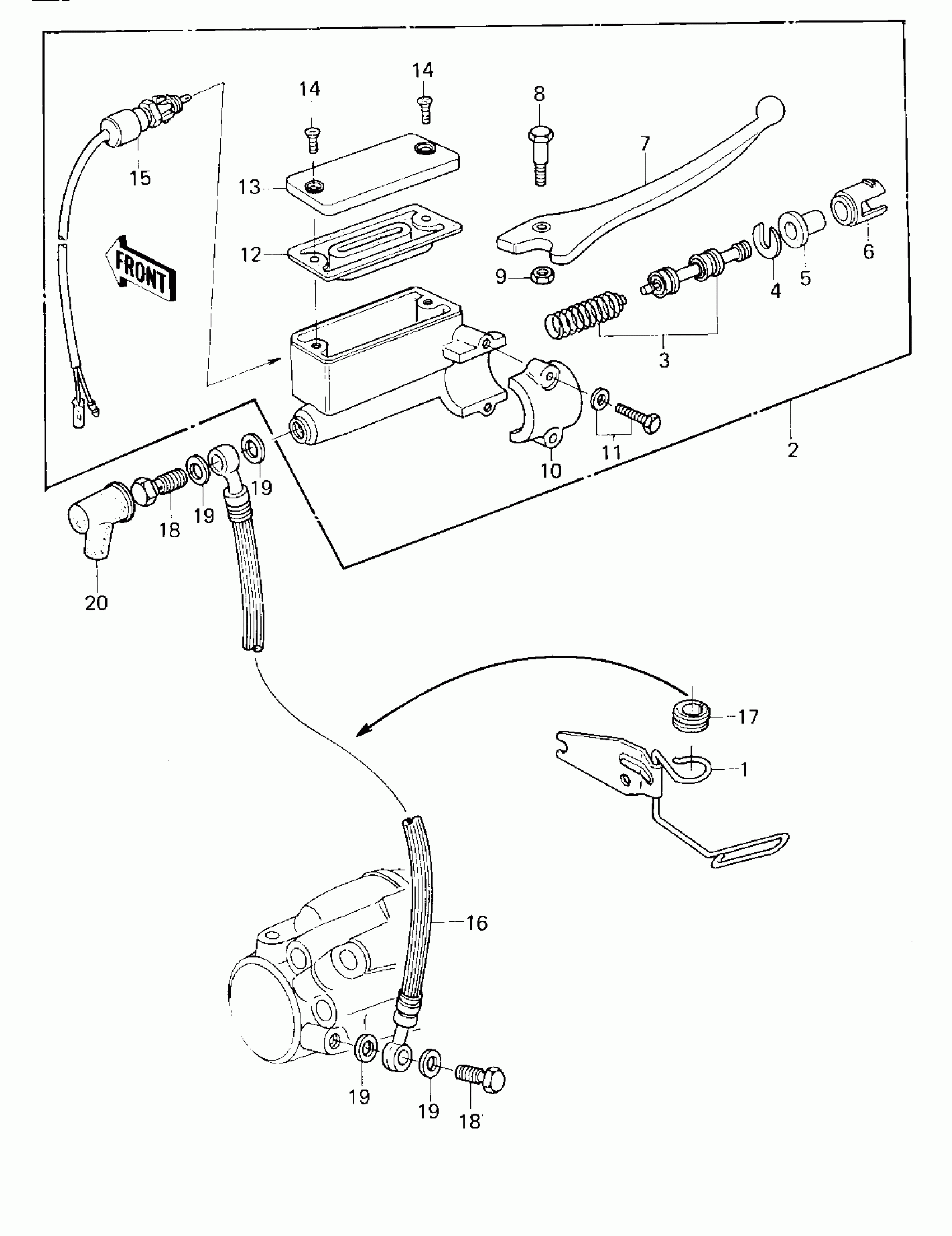

Kawasaki LTD II FRONT MASTER CYLINDER Diagram

#

Description
Price

1

BRACKET,FRONT BRAKE

11034-1468

Unavailable

2

CYLINDER ASSY,MASTER

43015-1043

Unavailable

3

PISTON-COMP-BRAKE

43020-1027

Unavailable

4

STOPPER-BRAKE,PISTON

43022-1001

Unavailable

5

COVER-SEAL,BRAKE PISTON

49016-1010

Unavailable

6

LINER,PISTON

14008-1007

Unavailable

7

LEVER,FRONT BRAKE

46092-1011

Unavailable

8

BOLT,FR BRAKE LEVER

92001-1056

Unavailable

9

NUT 6MM

312B0600

$0.72

10

HOLDER-BRAKE,MASTER CYLINDER

43034-1001

Unavailable

11

BOLT,6X25,W/WASHER

43033-003

Unavailable

12

DIAPHRAGM,MASTER CYLINDER

43028-1008

Unavailable

13

CAP-BRAKE

43026-1006

Unavailable

14

SCREW-CSK-CROS,5X12,BLACK

92001-1055

$5.84

15

SWITCH,BRAKE

27010-1028

$33.48

16

HOSE,FR BRAKE L=980M

43059-1040

$81.61

17

GROMMET,HOSE CLAMP

43064-006

$4.31

18

BOLT,OIL,L=23

92002-1888

$5.48

19

WASHER,10.5X15X1.5

43067-001

$2.15

20

BOOT,DUST

49006-1041

$11.49

20

BOOT,DUST

49006-1041

$11.49
