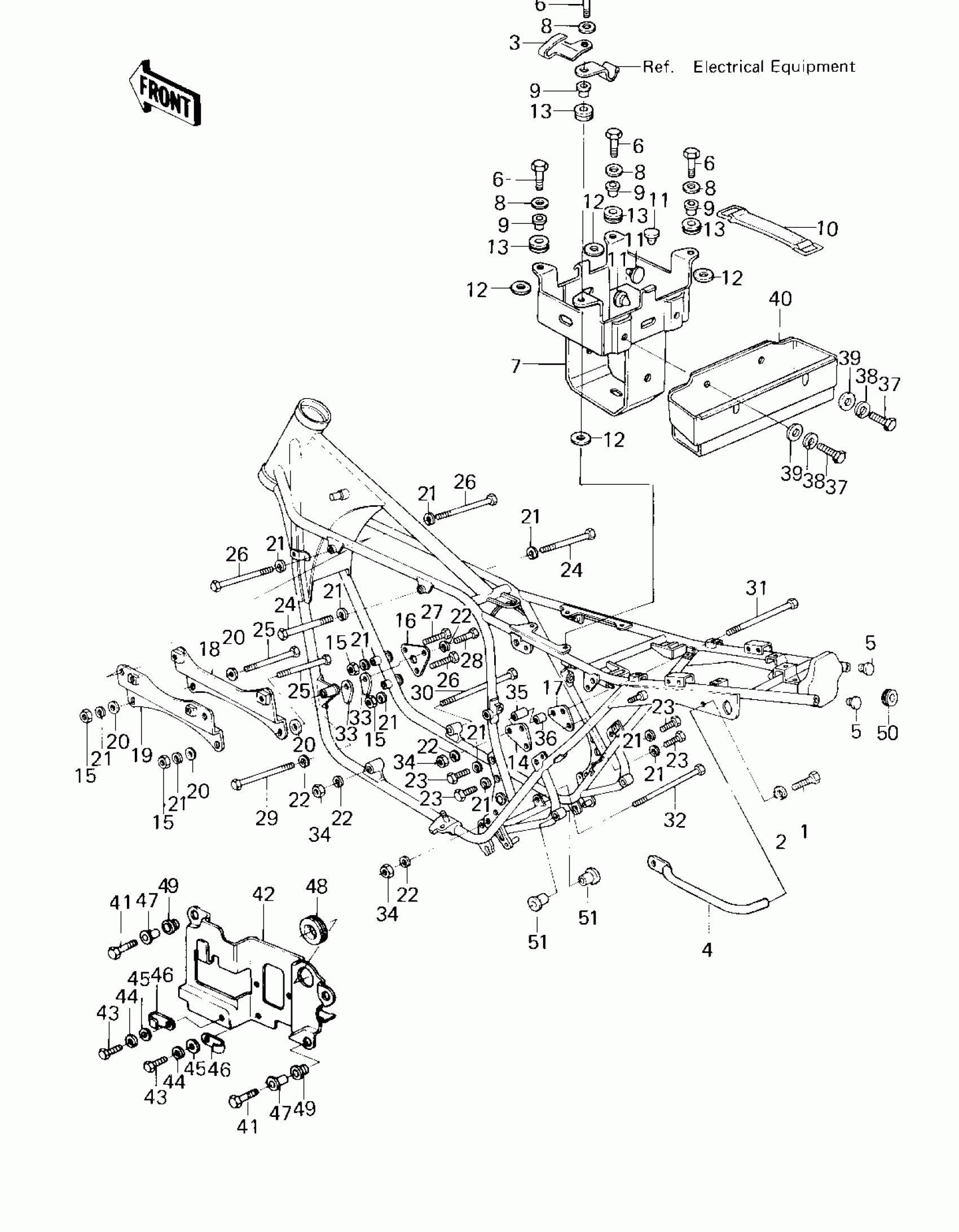

Kawasaki LTD II FRAME FITTINGS/BATTERY CASE Diagram
#
1
BOLT-SMALL-UPSET,8X16
115G0816
$0.68
2
WASHER SPRING 8MM
461F0800
$0.40
3
HOOK,HELMET
27012-1009
Unavailable
4
GRIP-FRAME
32109-1011
$16.02
5
PLUG,22X3
32112-008
$4.34
6
BOLT-UPSET
112G0625
$3.62
7
CASE,BATTERY
32097-1006
$59.80
8
WASHER,6.5X20X1.6
92022-125
$1.40
9
COLLAR
92027-194
$5.52
10
BAND,L=100
92072-071
$9.53
11
DAMPER,RUBBER
92075-078
$4.39
12
DAMPER RUBBER
92075-166
Unavailable
13
DAMPER
92075-277
$2.84
14
PLATE,REAR ENG MOUNT
13169-1048
Unavailable
15
NUT,8MM
311B0800
$0.67
16
PLATE,ENG FIT,FRONT
32030-047
$11.56
17
PLATE,ENG FIT,RR R.H
32030-049
$11.97
18
PLATE,ENG HEAD FITT
32030-070
$11.81
19
PLATE,ENG FITTING,R.
32030-071
Unavailable
20
WASHER PLAIN 8MM
411B0800
$0.93
21
WASHER SPRING 8MM
461F0800
$0.40
22
WASHER SPRING 10MM
461F1000
$0.67
23
BOLT,FLANGED,8X35
92001-1577
Unavailable
24
BOLT,10X45
92001-1182
$10.86
25
BOLT FLANGED 8X55
92001-1398
$4.04
26
BOLT,HEX HEAD,8X59
110G0859
Unavailable
27
BOLT,FLANGED,8X70
92001-1583
$9.57
28
BOLT,HEX HEAD,10X50
92001-1254
$4.38
29
BOLT,FLANGED,10X70
92001-1618
$10.37
30
BOLT,FLANGED,10X325
92001-1654
Unavailable
31
BOLT
92003-185
$13.86
32
BOLT
92003-186
Unavailable
33
NUT
92016-055
$10.30
34
NUT,LOCK,10MM
92019-021
$6.11
35
COLLAR
92027-245
$10.22
36
COLLAR
92027-246
$11.21
37
BOLT-UPSET,6X12
112G0612
$1.45
38
WASHER SPRING 6MM
461F0600
$0.69
39
WASHER PLAIN 6MM
411B0600
$2.84
40
CASE,TOOL
32098-026
$20.64
41
BOLT-UPSET,6X20
112G0620
$2.12
42
BRACKET,ELECTRO BASE
11034-1104
Unavailable
43
BOLT-UPSET,6X12
112G0612
$1.45
44
WASHER SPRING 6MM
461F0600
$0.69
45
WASHER-PLAIN-SMALL,6MM
410B0600
$1.31
46
CLAMP,WIRING HARNESS
21126-008
$4.73
47
COLLAR
92027-194
$5.52
48
GROMMET
92071-092
$1.24
49
DAMPER
92075-277
$2.84
50
GROMMET
92071-059
Unavailable
51
BUSHING,MUFFLER FITT
92092-010
$16.18
