Description

Price

1

BOLT-SMALL-UPSET,8X16

115G0816

$0.68

2

WASHER SPRING 8MM

461F0800

$0.40

3

FENDER-FR

35004-1047

$430.01

4

SPACER,FRONT FENDER

92026-1008

Unavailable

5

BOLT-UPSET

112G0618

$1.01

6

BOLT-UPSET

112G0625

$3.62

7

FENDER-RR

35022-134

$62.39

8

FENDER-RR

35023-1020

$11.73

9

NUT,LOCK 6MM

92017-014

$7.51

10

NUT,LOCK,6MM

92019-008

$4.26

11

WASHER,6.5X20X1.6

92022-125

$1.40

12

COLLAR,L=13.1

92027-251

Unavailable

13

RUBBER,FENDER COVER

92075-174

$4.78

14

DAMPER,FEMALE

92075-175

$4.39

15

DAMPER RUBBER,RR FEN

92075-290

Unavailable

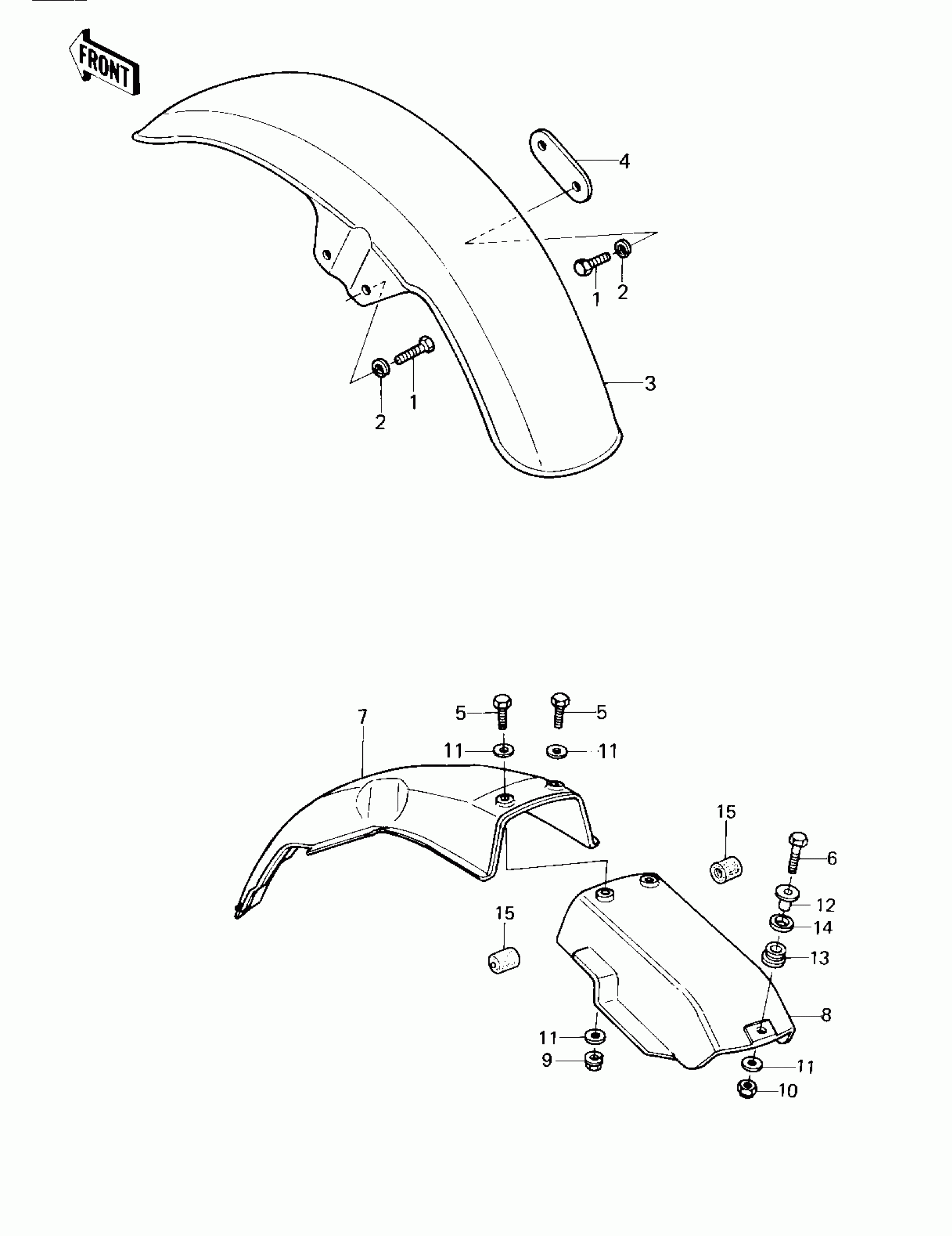

Kawasaki LTD II FENDERS Diagram

BOLT-SMALL-UPSET,8X16

WASHER SPRING 8MM

FENDER-FR

SPACER,FRONT FENDER

BOLT-UPSET

BOLT-UPSET

FENDER-RR

FENDER-RR

NUT,LOCK 6MM

NUT,LOCK,6MM

WASHER,6.5X20X1.6

COLLAR,L=13.1

RUBBER,FENDER COVER

DAMPER,FEMALE

DAMPER RUBBER,RR FEN
