Description

Price

1

COVERBRK POINT,BUFF

14027-019-80

Unavailable

2

GASKET,BREAKER COVER

14050-010

Unavailable

3

SCREW PAN HEAD 6X18

220B0618

$3.67

4

CAP,CLUTCH ADJUST

14028-008-2H

Unavailable

5

GASKET,CLUTCH ADJUST

14049-007

Unavailable

6

COVER,KICK

14032-112-2H

Unavailable

7

GASKET,KICK COVER

14046-034

Unavailable

8

SCREW PAN HEAD 6X30

220B0630

$3.41

9

SCREW PAN HEAD 6X40

220B0640

Unavailable

10

SEAL-OIL,SC22325

92049-1048

$8.86

11

COVER,ENGINE SPROCKE

14026-032-80

Unavailable

12

BOLT-FLANGED,6X95

130G0695

$5.21

13

BOLT, HEX HEAD, 6X34

92003-159

Unavailable

14

SEAL-OIL,TB13225.5

92051-005

$7.74

15

COVER,GENERATOR

14031-1044

Unavailable

16

GASKET,GENERATOR COVE

11009-1328

Unavailable

17

SCREW-PAN-CROS,6X60

220B0660

$1.79

18

SCREW-PAN-CROS

220B0512

$0.47

19

WASHER SPRING 5MM

461F0500

$0.69

20

CLAMP,GENERATOR LEAD

92037-1122

$4.80

21

COVER,CLUTCH

14032-1031

Unavailable

22

GASKET,R.H ENGINE COV

14046-033

Unavailable

23

GAUGE,OIL LEVEL

52015-004

$48.05

24

SEAL-OIL,S25407

92050-065

Unavailable

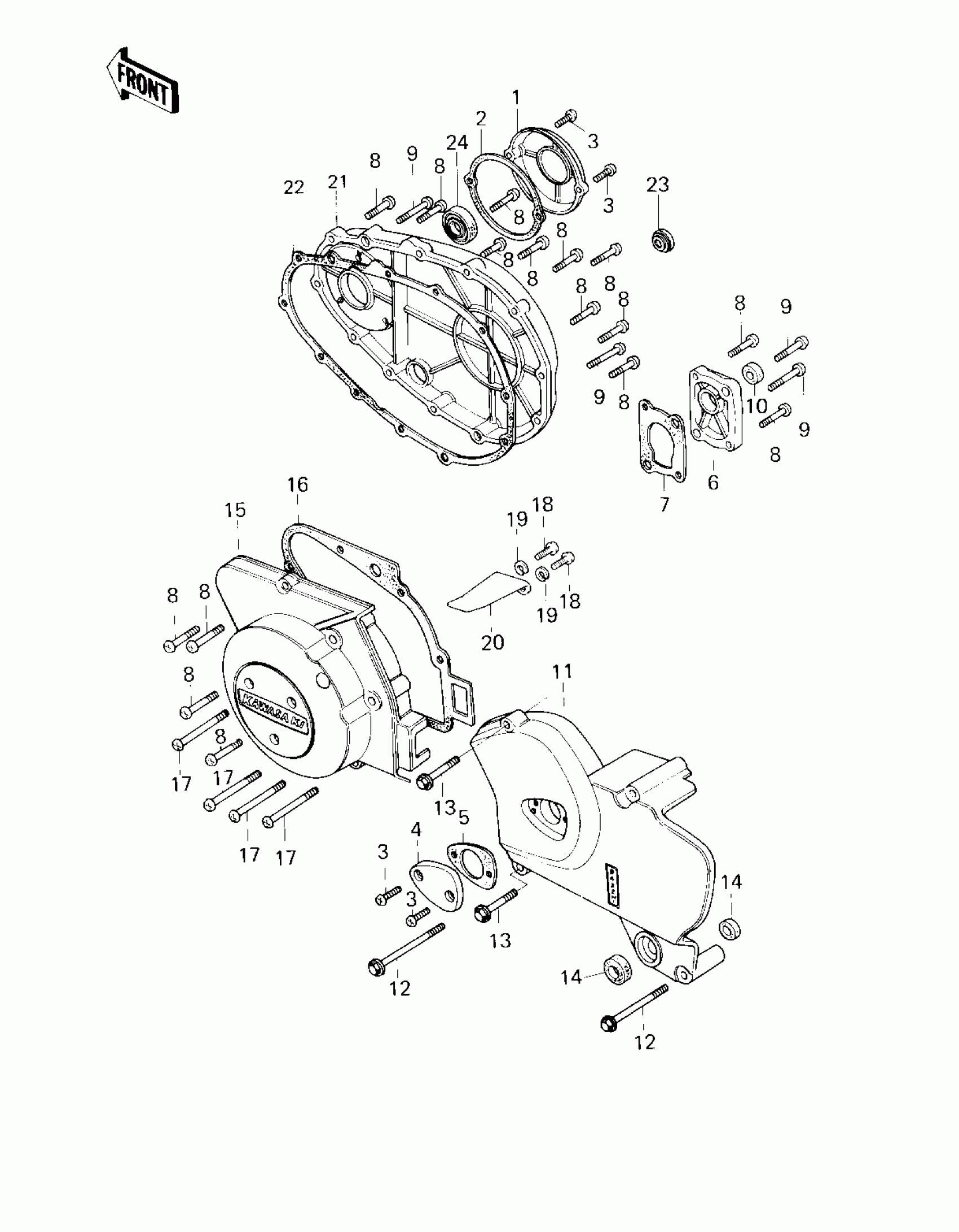

Kawasaki LTD II ENGINE COVERS Diagram

COVERBRK POINT,BUFF

GASKET,BREAKER COVER

SCREW PAN HEAD 6X18

CAP,CLUTCH ADJUST

GASKET,CLUTCH ADJUST

COVER,KICK

GASKET,KICK COVER

SCREW PAN HEAD 6X30

SCREW PAN HEAD 6X40

SEAL-OIL,SC22325

COVER,ENGINE SPROCKE

BOLT-FLANGED,6X95

BOLT, HEX HEAD, 6X34

SEAL-OIL,TB13225.5

COVER,GENERATOR

GASKET,GENERATOR COVE

SCREW-PAN-CROS,6X60

SCREW-PAN-CROS

WASHER SPRING 5MM

CLAMP,GENERATOR LEAD

COVER,CLUTCH

GASKET,R.H ENGINE COV

GAUGE,OIL LEVEL

SEAL-OIL,S25407
