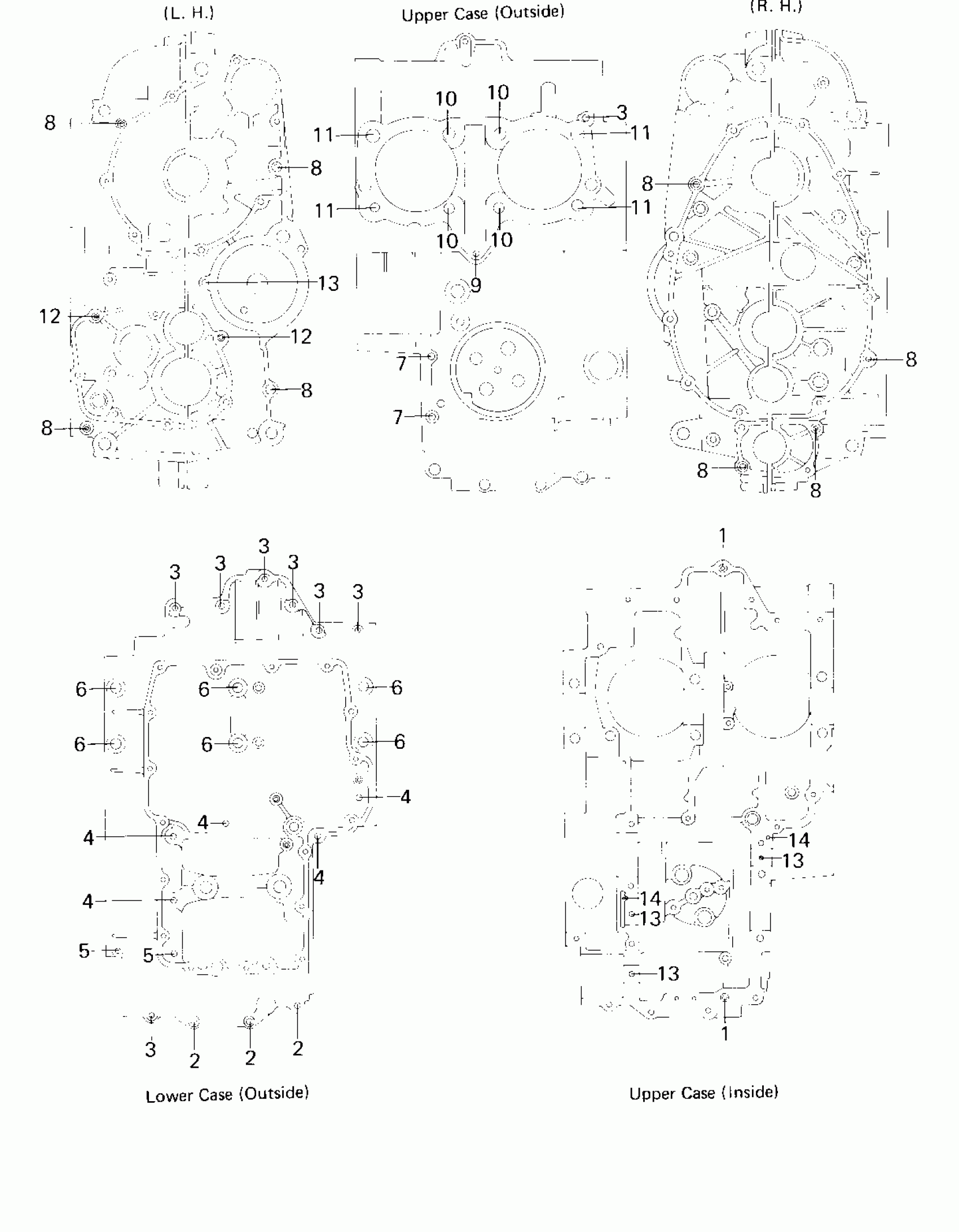

Kawasaki LTD II CRANKCASE BOLT & STUD PATTERN Diagram

#

Description
Price

1

PIN,DOWEL,10X14

92043-1037

$0.74

2

BOLT,HEX HEAD,6X41

92003-109

Unavailable

3

BOLT,HEX HEAD,6X54

92003-110

$4.99

4

BOLT-FLANGED,6X95

130G0695

$5.21

5

BOLT-FLANGED,6X70

130G0670

$4.28

6

BOLT,10X115

92003-187

Unavailable

7

BOLT,6X105

92003-194

Unavailable

8

PIN,DOWEL,10X14

92043-1037

$0.74

9

STUD,6X22

92004-059

$6.50

10

STUD,10X167

92004-1002

$15.20

11

STUD,10X158

92004-1003

$15.20

12

PIN,DOWEL,6.3X8X14

92042-007

$5.70

13

PIN,DOWEL,6X16

92042-016

$5.00

14

NOZZLE,BLACK

92062-011

$8.58
