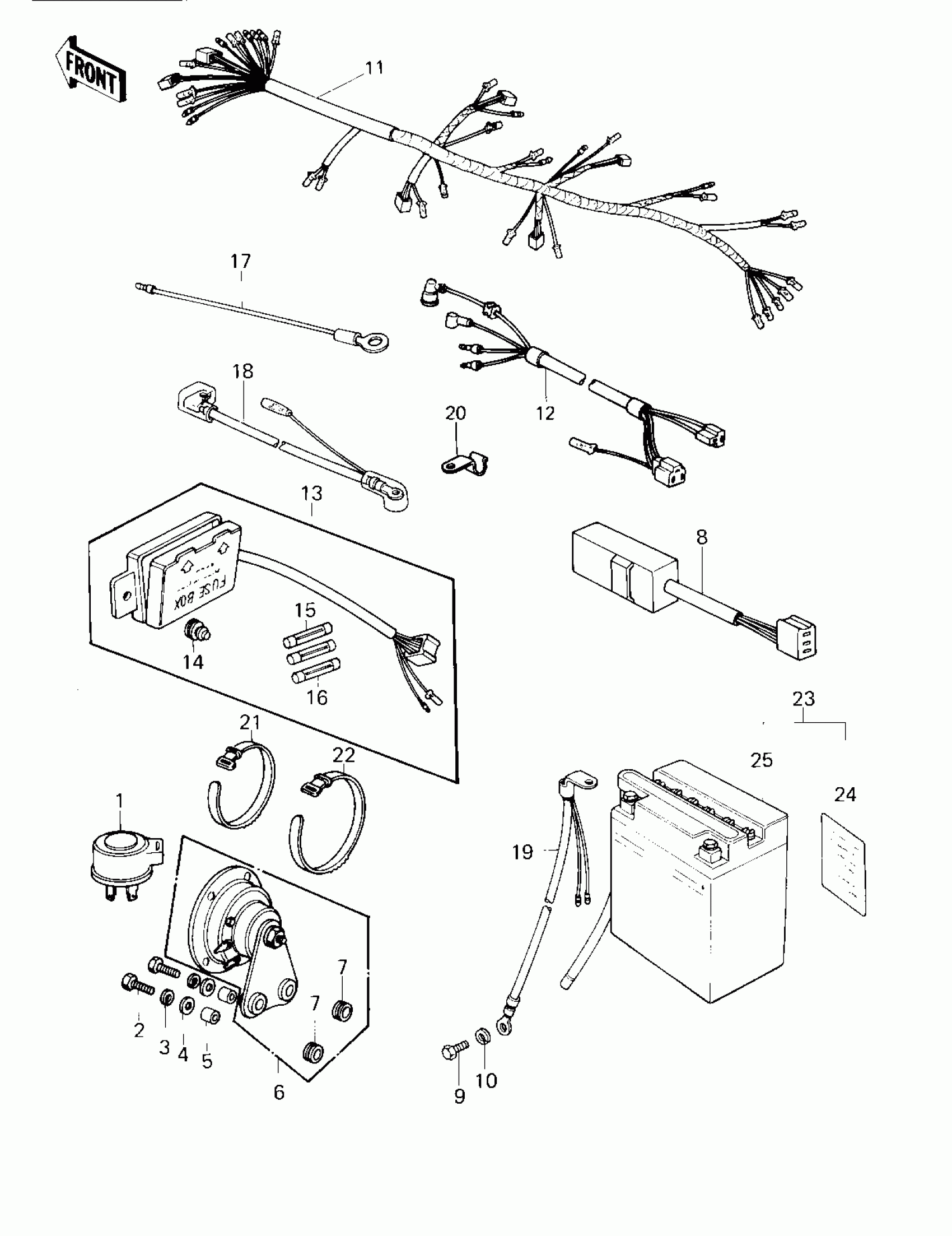

Kawasaki LTD II CHASSIS ELECTRICAL EQUIPMENT Diagram

#

Description
Price

1

RELAY-ASSY,TURN SIGNAL

27002-011

$101.43

2

BOLT HEX HEAD 8X28

114G0828

$3.71

3

WASHER SPRING 8MM

461F0800

$0.40

4

WASHER PLAIN 8MM

411B0800

$0.93

5

COLLAR,HORN FITTING

92027-271

$3.00

6

HORN

27003-074

$82.00

7

DAMPER

92075-294

$4.10

8

SWITCH,OUTAGE,INDICTR

28019-001

Unavailable

9

BOLT-UPSET,6X12

112G0612

$1.45

10

WASHER SPRING 6MM

461F0600

$0.69

11

WIRING HARNESS,MAIN

26001-1102

$239.82

12

WIRING HARNESS

26001-1024

Unavailable

13

FUSE-ASSY

26004-035

Unavailable

14

DAMPER,FUSE

92075-279

$6.45

15

FUSE,20A,L=25

26006-005

$5.06

16

FUSE,10A,L=25

26006-003

$4.72

17

LEAD WIRE,SIGNAL LAMP

26011-063

$8.60

18

WIRE-LEAD,BATTERY

26011-1146

Unavailable

19

WIRE-LEAD,BATTERY

26011-1146

Unavailable

20

CLAMP

92037-1044

Unavailable

21

BAND,L=123

92072-030

$5.00

22

BAND,L=186

92072-056

$5.00

23

YUA BAT YB14L-A2

26012-1008

$83.22

24

LABEL-WARNING,BATTERY

56040-1036

Unavailable

25

YUA BAT YB14L-A2

26012-1008

$83.22
