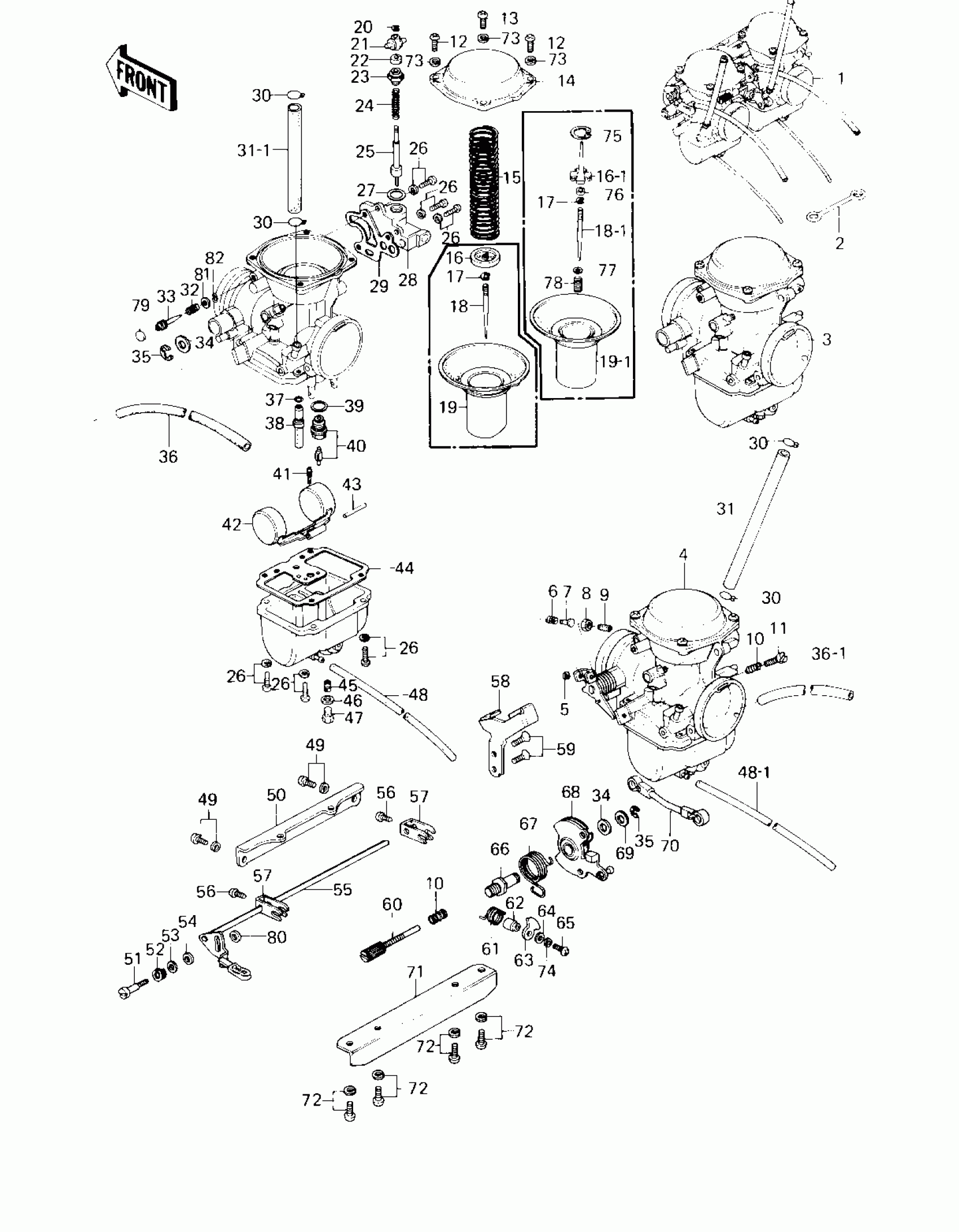

Kawasaki LTD II CARBURETORS Diagram

#

Description
Price

1

CARBURETOR ASSY (Canada)

16001-1295

Unavailable

1

CARBURETOR ASSY

16001-1187

$627.17

2

CLAMP,OVER FLOW PIPE

92037-134

$11.50

3

CARBURETOR,L.H.

16001-1257

$349.28

4

CARBURETOR,R.H.

16001-1256

$349.28

5

CIRCLIP

16008-017

Unavailable

6

SPRING,LEVER

16040-019

Unavailable

7

PIN

16042-008

Unavailable

8

NUT-HEX,5MM

312B0500

$0.46

9

SCREW,LEVER

16033-025

Unavailable

10

SPRING,THROTTLE ADJST

16022-010

Unavailable

11

ADJUSTER,THROTTLE LEV

16021-020

Unavailable

12

SCREW-PAN-CROS

220B0514

$4.04

13

UNAVAILABLE IN PRICE BOOK

214B0516A

Unavailable

14

COVER,DIAPHRAGM

14030-1012

Unavailable

16

PLATE,NEEDLE

16055-010

$12.37

16-1

HOLDER,JET NEEDLE

13091-1026

Unavailable

17

CLAMP,E-TYPE

16008-014

$9.64

18-1

JET NEEDLE,#4HL14

16009-1051

$30.29

19-1

DIAPHRAGM

43028-1018

$118.50

20

CIRCLIP

16076-003

$8.92

21

LEVER,CHOKE ADJUST

16073-1006

$7.03

22

RUBBER CAP,STARTER PL

16036-017

Unavailable

23

GUIDE,PLUNGER

16012-1008

$7.06

24

SPRING,STARTER PLUG

16013-008

Unavailable

25

PLUNGER,STARTER

16016-019

Unavailable

26

SCREW,FLOAT CHAM FIT

16033-027

Unavailable

27

WASHER,PLAIN

16039-041

Unavailable

28

BODY,STARTER

16131-1005

Unavailable

29

WASHER

16029-011

Unavailable

30

CLAMP,TUBE

92037-072

$7.22

31

PIPE,FUEL

92059-130

$24.48

31-1

PIPE,FUEL

92059-130

$24.48

32

SPRING,PILOT SCREW

92081-1216

Unavailable

33

SCREW,PILOT ADJUST

16014-1023

Unavailable

34

WASHER

16039-032

Unavailable

35

CIRCLIP

16008-015

Unavailable

36

HOSE,AIR VENT,4.5X250

92059-1096

$13.09

36-1

HOSE,AIR VENT,4.5X250

92059-1096

$13.09

37

"O" RING,NEEDLE JET

16038-021

Unavailable

38

NEEDLE JET,#AY-3

16017-1048

$34.25

39

GASKET,FLOAT VALVE

11009-1076

Unavailable

40

FLOAT VALVE ASSY

16030-026

Unavailable

41

PILOT JET,#40

92064-1012

$16.58

42

FLOAT

16031-030

Unavailable

43

PIN,FLOAT

16032-003

$6.57

44

GASKET,FLOAT CHAMBER

16019-029

Unavailable

45

MAIN JET,#A125

92063-1061

Unavailable

46

WASHER,PLAIN

16039-036

Unavailable

47

SCREW,MAIN JET PLUG

92009-1090

$11.03

48

HOSE,FUEL OVERFLOW

92059-127

$11.07

48-1

HOSE,FUEL OVERFLOW

92059-127

$11.07

49

SCREW,5X10

16033-028

Unavailable

50

SHAFT

16041-014

$6.70

51

SCREW

16046-005

Unavailable

52

SPRING,F

16040-009

Unavailable

53

WASHER

16039-033

Unavailable

54

WASHER,PLAIN,DURACON

92022-1147

$8.43

55

SHAFT,CHOKE LEVER

16041-1013

$23.41

56

SCREW,PAN HEAD,5X7

16046-007

Unavailable

57

LEVER,CHOKE ADJUST

13168-1062

Unavailable

58

BRACKET

16070-004

$17.20

59

SCREW,5X8

16033-024

$7.47

60

THROTTLE ADJUSTER

16021-027

Unavailable

61

SPRING

16040-018

Unavailable

62

COLLAR

16073-012

Unavailable

63

LEVER

16063-010

Unavailable

64

WASHER,PLAIN

16039-038

$5.88

65

SCREW-PAN HEAD,4X20

220E0420A

$2.76

66

SHAFT

16041-015

Unavailable

67

SPRING,THROTTLE CABL

16040-017

Unavailable

68

PULLY,THROTTLE CABLE

16074-004

Unavailable

69

WASHER,PLAIN

16039-037

Unavailable

70

JOINT

16046-008

Unavailable

71

PLATE

16055-011

$11.06

72

SCREW

16033-026

Unavailable

73

WASHER SPRING 5MM

461F0500

$0.69

74

WASHER SPRING 4MM

461F0400

Unavailable

75

CIRCLIP

92033-1009

Unavailable

76

RING,JET NEEDLE

92027-1115

Unavailable

77

WASHER,JET NEEDLE

92022-1123

$8.98

78

SPRING,JET NEEDLE

92081-1126

$8.36

79

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

80

WASHER,PLAIN

92022-1152

$4.04

81

WASHER,ADJUST SCREW

92022-1187

$6.22

82

RING-O,ADJUST SCREW

92055-1078

$6.27
