Description

Price

1

BOLT-SOCKET,6X14

120P0614

$3.82

2

CAM SHAFT,INLET

12044-010

Unavailable

3

CAMSHAFT,EXHAUST

12044-020

Unavailable

4

SPROCKET,CAM SFT,IN

12046-006

Unavailable

5

SPROCKET,CAM SFT,EXH

12046-007

Unavailable

6

TENSIONER ASSY,CAM

12048-005

Unavailable

7

CAP,CHN TENSIONER

12064-003

Unavailable

8

ROD,PUSH

13116-1001

Unavailable

9

BOLT,PUSH ROD

92001-1009

$19.33

10

NUT,18MM

92015-019

$7.22

11

WASHER,PLAIN

92022-320

$2.03

12

"O" RING

92055-095

Unavailable

13

SPRING,PUSH ROD

92081-1007

$6.41

14

SPRING

92081-1008

$4.06

15

SLIPPER,CAM CHAIN

12053-015

Unavailable

16

SLIPPER,CAM CHAIN

12053-016

Unavailable

17

HOLDER

14018-006

Unavailable

18

CHAIN,CAM

21070-011

Unavailable

19

PIN,DOWEL,10X32

551A1032

$3.28

20

BOLT,FLANGED,6X28

92003-202

Unavailable

21

BOLT,FLANGED,6X11

92003-208

$4.31

22

GASKET

92065-096

$4.65

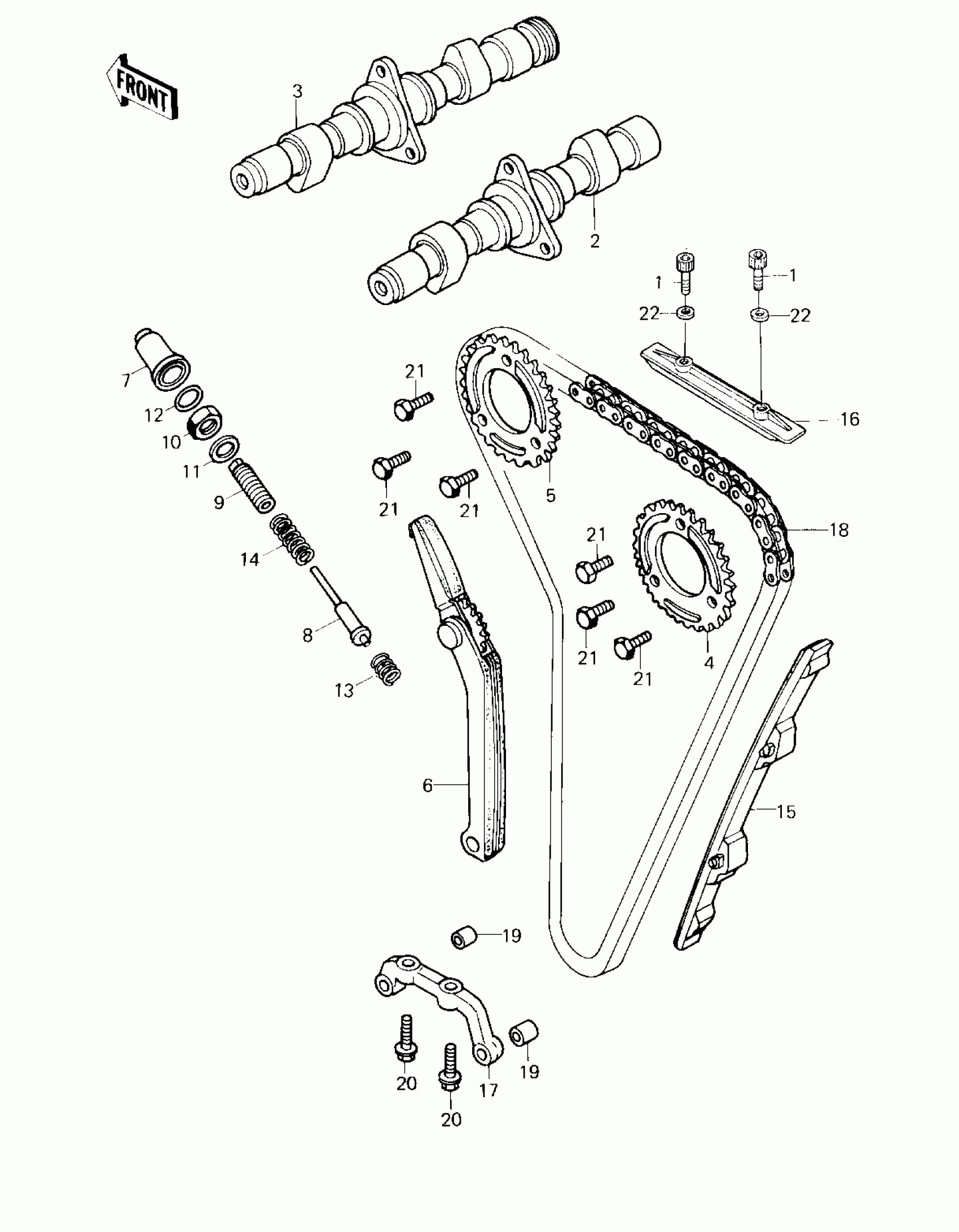

Kawasaki LTD II CAMSHAFTS/CHAIN/TENSIONER Diagram

BOLT-SOCKET,6X14

CAM SHAFT,INLET

CAMSHAFT,EXHAUST

SPROCKET,CAM SFT,IN

SPROCKET,CAM SFT,EXH

TENSIONER ASSY,CAM

CAP,CHN TENSIONER

ROD,PUSH

BOLT,PUSH ROD

NUT,18MM

WASHER,PLAIN

"O" RING

SPRING,PUSH ROD

SPRING

SLIPPER,CAM CHAIN

SLIPPER,CAM CHAIN

HOLDER

CHAIN,CAM

PIN,DOWEL,10X32

BOLT,FLANGED,6X28

BOLT,FLANGED,6X11

GASKET
