1980 Kawasaki LTD II Brake Pedal/torque Link Diagram

← All diagrams

Find the part on the Brake Pedal/torque Link diagram for your 1980 Kawasaki LTD II, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

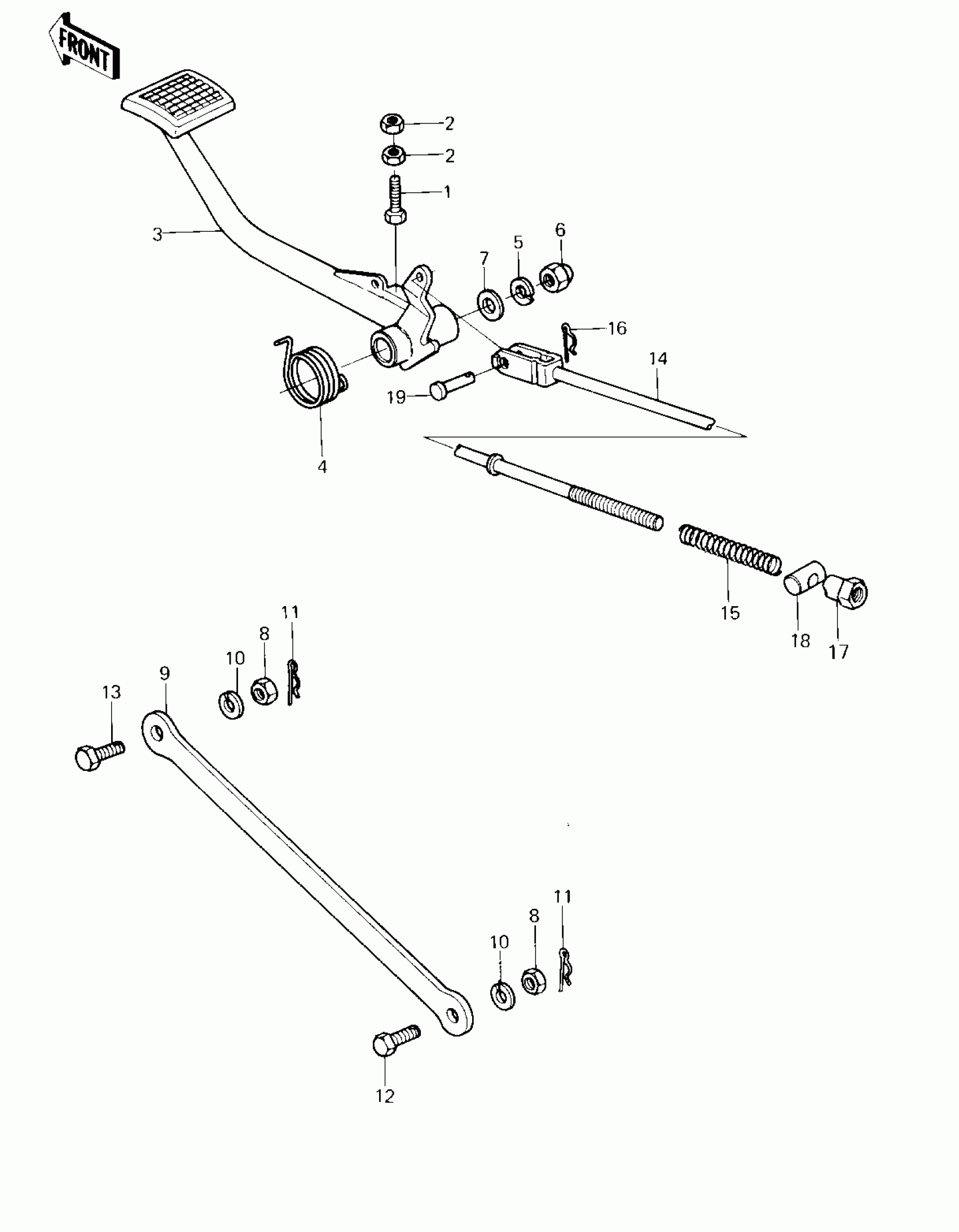

1980 Kawasaki LTD II Brake Pedal/torque Link Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-UPSET,6X20

112G0620

1
Out of stock

2

NUT 6MM

311B0600

1
Out of stock

3

PEDAL,BRAKE

43001-1038

1
Out of stock

4

SPRING,BK PEDAL RETN

43005-036

1
Out of stock

5

WASHER SPRING 8MM

461F0800

1
Out of stock

6

NUT,CAP AND LOCK,8MM

92019-013

1
Out of stock

7

WASHER,8.5X20X1.6

92022-1561

1
Out of stock

8

NUT-HEX-FINE,10MM

314B1000

1
Out of stock

9

TORQUE ROD

43007-1016

1
Out of stock

10

WASHER SPRING 10MM

461F1000

1
Out of stock

11

PIN-SNAP,8MM

554A0800

1
Out of stock

12

BOLT-HEX HEAD,10X40

92003-097

1
Out of stock

13

BOLT TORQUE LINK FITT

92003-103

1
Out of stock

14

ROD,BRAKE

43011-1016

1
Out of stock

15

SPRING,BRAKE ROD

43012-001

1
Out of stock

16

PIN,SNAP

554A0600

1
Out of stock

17

NUT,BRAKE ROD

92015-042

1
Out of stock

18

PIN,BRAKE ROD

92043-065

1
Out of stock

19

PIN,BRAKE ROD FITTING

92043-090

1
Out of stock
