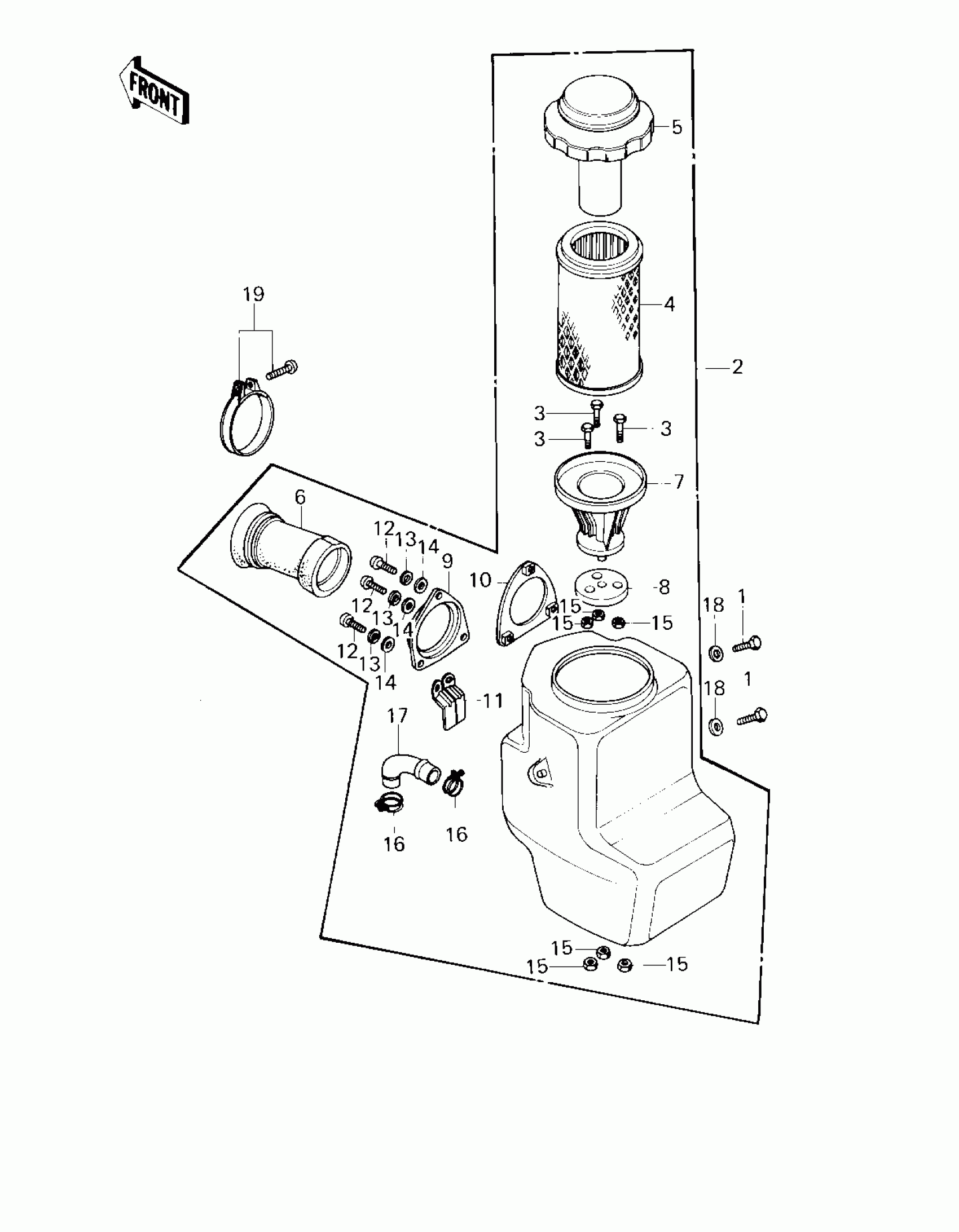

Kawasaki LTD II AIR CLEANER Diagram

#

Description
Price

1

BOLT-UPSET,6X16

112G0616

$1.10

2

AIR CLEANER ASSY

11010-109

Unavailable

3

BOLT-UPSET,6X20

112G0620

$2.12

4

ELEMENT,AIR CLNR

11013-051

Unavailable

5

PIPE,INLET

11015-049

Unavailable

6

CONNECTOR

11026-018

Unavailable

7

HOLDER

11033-004

Unavailable

8

GASKET

11039-001

Unavailable

9

PLATE,INLET PIPE

11040-004

Unavailable

10

PLATE,INLET PIPE

11040-005

Unavailable

11

PLATE,AIR CLNR BODY

11040-006

Unavailable

12

SCREW PAN HEAD 4X16

220B0416

$1.66

13

WASHER SPRING 4MM

461F0400

Unavailable

14

WASHER PLAIN 4MM

410B0400

$0.48

15

NUT 6MM

311B0600

$0.93

16

CLAMP,BREATHER TUBE

92037-192

$6.52

17

TUBE

92059-121

$15.93

18

WASHER,6.5X20X1.6

92022-125

$1.40

19

CLAMP,AIR FILTER

92037-171

$12.95
