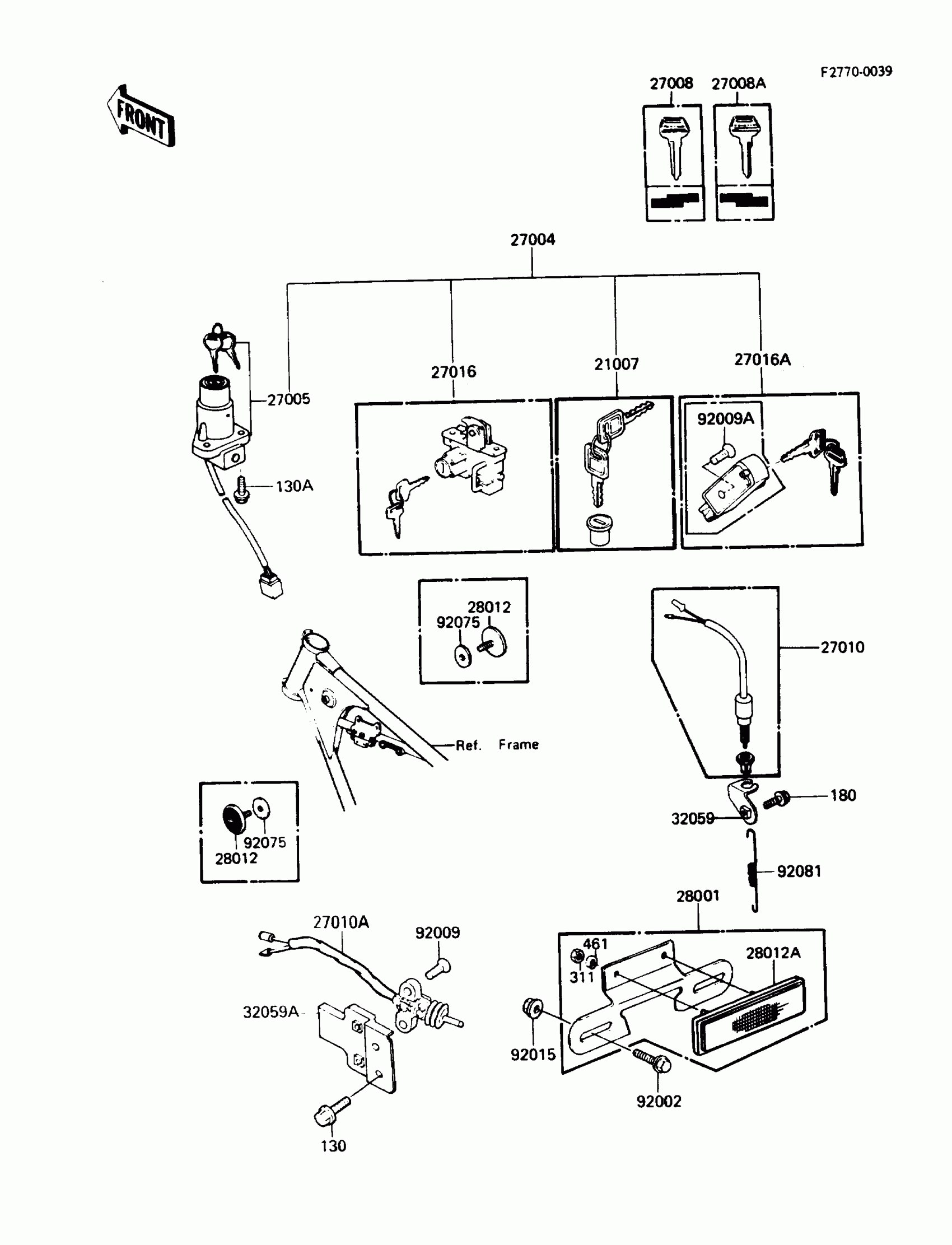

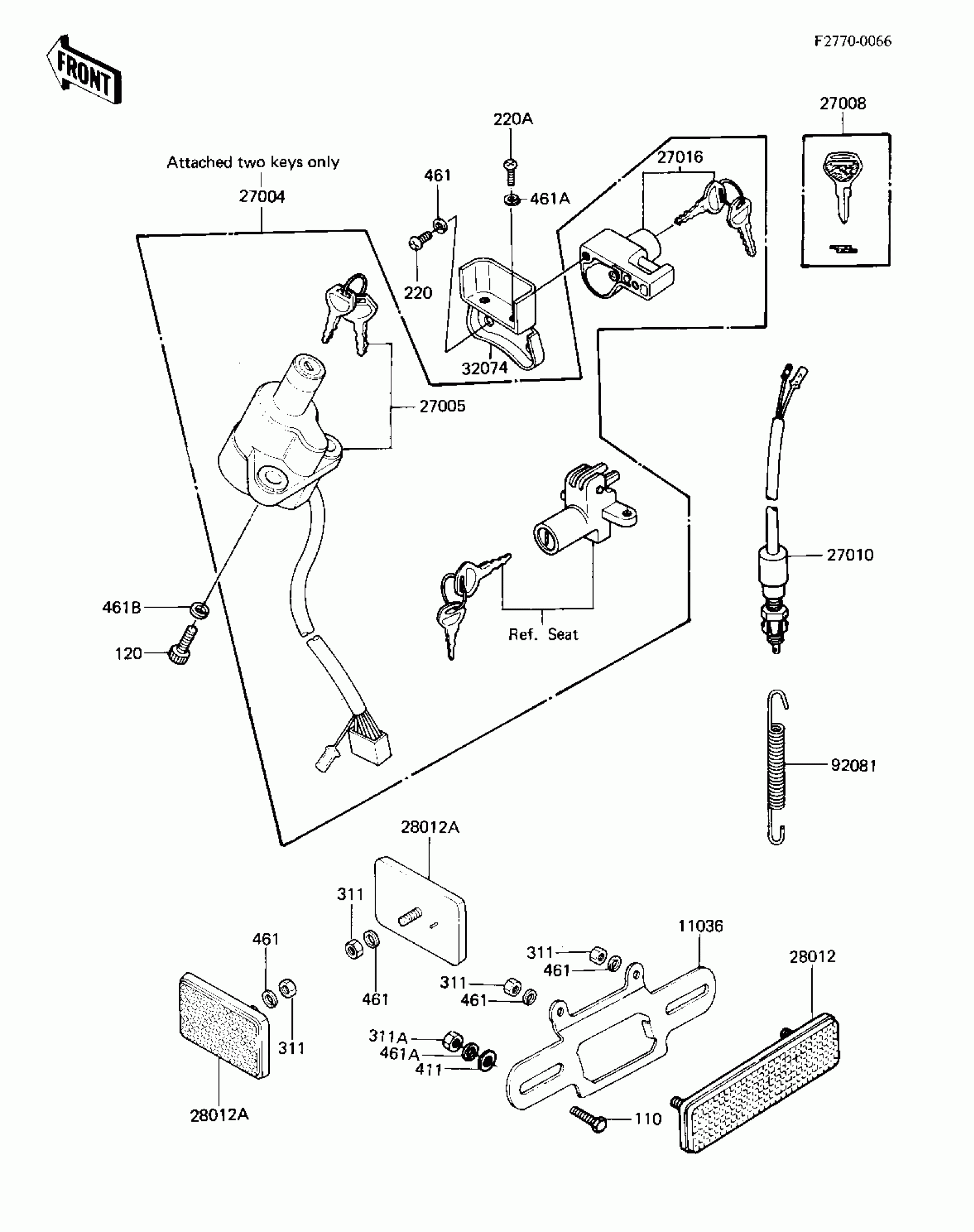

Kawasaki LTD Ignition Switch/Locks/Reflectors Diagram

Description

Price

21007

ROTOR,LOCK,TANK CAP

21007-5022

$72.74

27004

SWITCH-ASSY

27004-5323

$330.35

27005

SWITCH-ASSY-IGNITION

27005-1029

Unavailable

27008

KEY-LOCK,BLANK,#A

27008-1034

$18.85

27008A

KEY-LOCK,BLANK,#B

27008-1035

Unavailable

27010

SWITCH,REAR BRAKE

27010-1019

$35.68

27010A

SWITCH,SIDE STAND

27010-1222

$112.83

27016

LOCK-ASSY,SEAT&HELMET

27016-5028

Unavailable

27016A

LOCK-ASSY,HELMET

27016-5029

$43.41

28001

REFLECTOR-ASSY-REFLEX

28001-1012

$57.60

28012

REFLECTOR-REFLEX,FR

28012-016

$23.25

28012A

REFLECTOR-REFLEX,RR

28012-1005

$28.34

32059

BRACKET-SWITCH,BRAKE LAMP

32059-1006

$13.78

32059A

BRACKET-SWITCH

32059-1085

$6.67

92002

BOLT,6X12

92002-1132

$1.49

92009

SCREW,5X20

92009-1459

$4.38

92009A

SCREW,5X18

92009-1547

$5.45

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92075

DAMPER,REFLECTOR

92094-011

$4.60

92081

SPRING,BRAKE LAMP SWITCH

27011-011

$8.51

130

BOLT-FLANGED

130C0510

Unavailable

130A

BOLT-FLANGED,6X14

130D0614

Unavailable

180

BOLT-UPSET-WS

180B0618

$0.88

311

NUT-HEX

311B0500

$0.47

461

WASHER SPRING 5MM

461F0500

$0.69
