Description

Price

11009

GASKET,TAP VALVE

11009-1188

$5.74

16146

COVER-ASSY,TAP DIAPHRAGM

16146-1010

$25.31

43028

DIAPHRAGM

43028-1033

$22.90

43058

RING,TAP FLANGED

51039-003

$6.27

51002

TANK-COMP-FUEL,EBONY

51002-5272-H8

$560.22

51002A

TANK-COMP-FUEL,C.W.RED

51002-5273-H3

$557.79

51023

TAP-ASSY,FUEL

51023-1140

$76.75

51049

CAP-TANK,FUEL

51049-1085

$174.58

92001

BOLT,6X20

92001-1091

$3.92

92022

WASHER,5.3X10X0.8

92022-1038

$3.65

92022A

WASHER-PLAIN

92022-183

$3.92

92055

RING-O

92055-1023

$3.92

92055A

RING-O,TAP LEVER

92055-1085

$5.05

92075

DAMPER,FUEL TANK

92075-101

$6.22

92075A

DAMPER,FUEL TANK

92075-284

$19.86

92075B

DAMPER,FUEL TANK

92075-295

$9.17

92081

SPRING,TAP DIAPHRAGM

92081-1240

$3.89

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

220

SCREW-PAN-CROS,3X8

220B0308

$0.59

220A

SCREW-PAN-CROS,5X10

220D0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

$3.41

670

O RING,4MM

670B1504

$4.11

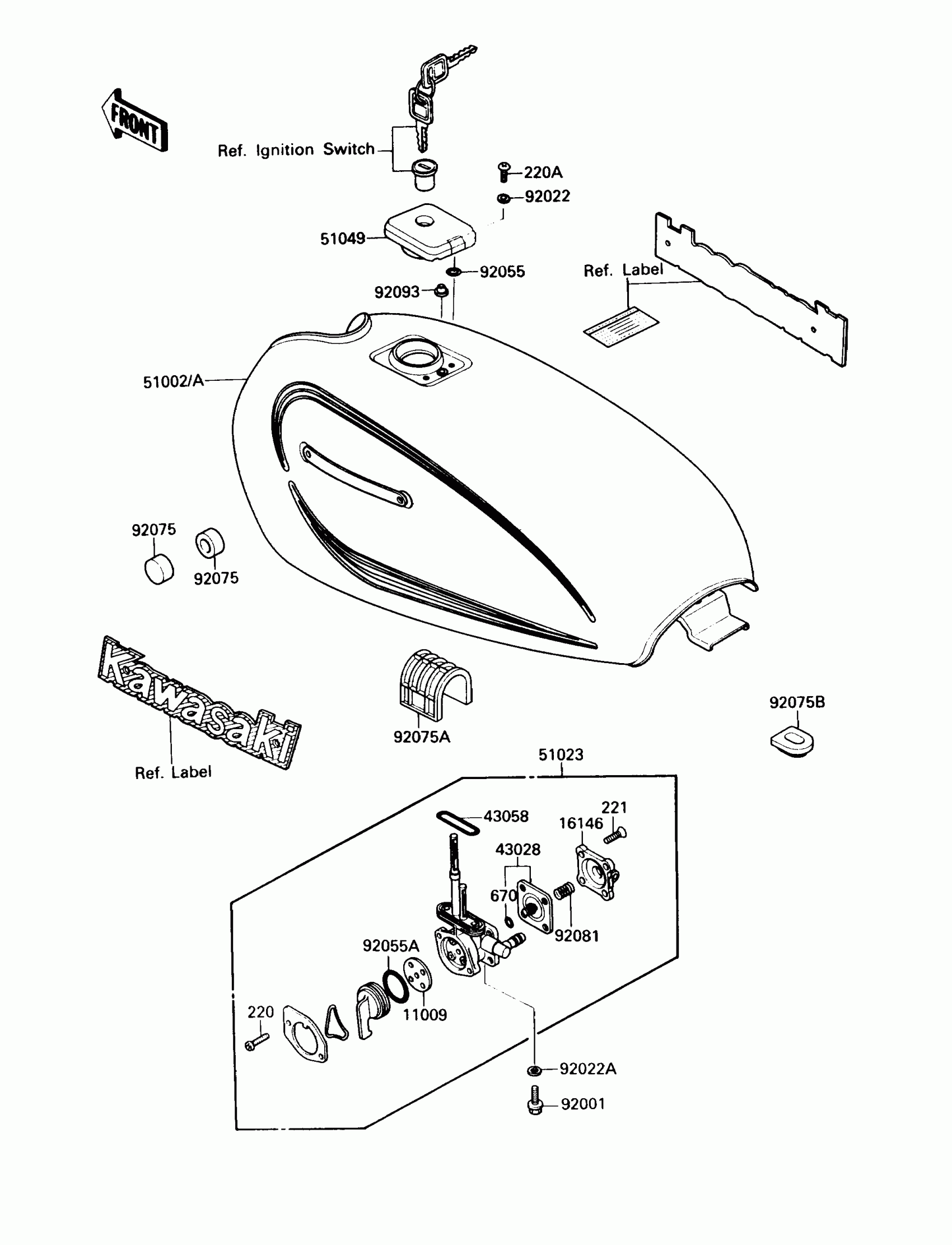

Kawasaki LTD Fuel Tank Diagram

GASKET,TAP VALVE

COVER-ASSY,TAP DIAPHRAGM

DIAPHRAGM

RING,TAP FLANGED

TANK-COMP-FUEL,EBONY

TANK-COMP-FUEL,C.W.RED

TAP-ASSY,FUEL

CAP-TANK,FUEL

BOLT,6X20

WASHER,5.3X10X0.8

WASHER-PLAIN

RING-O

RING-O,TAP LEVER

DAMPER,FUEL TANK

DAMPER,FUEL TANK

DAMPER,FUEL TANK

SPRING,TAP DIAPHRAGM

SEAL,FUEL TANK CAP

SCREW-PAN-CROS,3X8

SCREW-PAN-CROS,5X10

SCREW-CSK-CROS,4X14

O RING,4MM
