Description

Price

14024

COVER,DUST,LH

14025-1277

Unavailable

14024A

COVER,DUST,RH

14025-1341

Unavailable

41034

DRUM-ASSY,FR

41034-1033

$538.73

41060

GEAR-METER SCREW,9T

41060-1016

$21.74

41060A

GEAR-METER SCREW,25T

41060-1041

$20.35

41064

RECEIVER-SPEEDOMETER

41064-1006

$14.92

41068

AXLE,FR,L=230

41068-1099

Unavailable

41078

CASE-ASSY-METER GEAR

41078-1020

$141.61

92001

BOLT,FLANGED,10X30

92001-1173

$11.07

92015

NUT,CASTLE,14MM

42045-020

$9.91

92022

WASHER,5.1X9X0.4

41063-001

$4.69

92022A

WASHER,5.1X10X1

92022-1062

$4.69

92027

COLLAR,L=55

92027-1223

$14.88

92027A

COLLAR,L=30

92027-1225

$17.60

92033

RING-SNAP,42MM

92033-1041

$6.16

92043

PIN,SPRING

41082-001

$3.92

92049

SEAL-OIL,BJN30427-C3

92049-1057

$9.28

92049A

SEAL-OIL,BJN22425

92049-1058

$9.73

92087

BUSHING-METER GEAR

92087-1002

$23.27

224

SCREW-PAN-WP-CROS

224B0514

$4.12

410

WASHER-PLAIN-SMALL,14MM

410B1400

$2.01

550

PIN-COTTER,3.0X25

550D3025

$0.58

601

BEARING-BALL,#6302C3

601B6302

$6.24

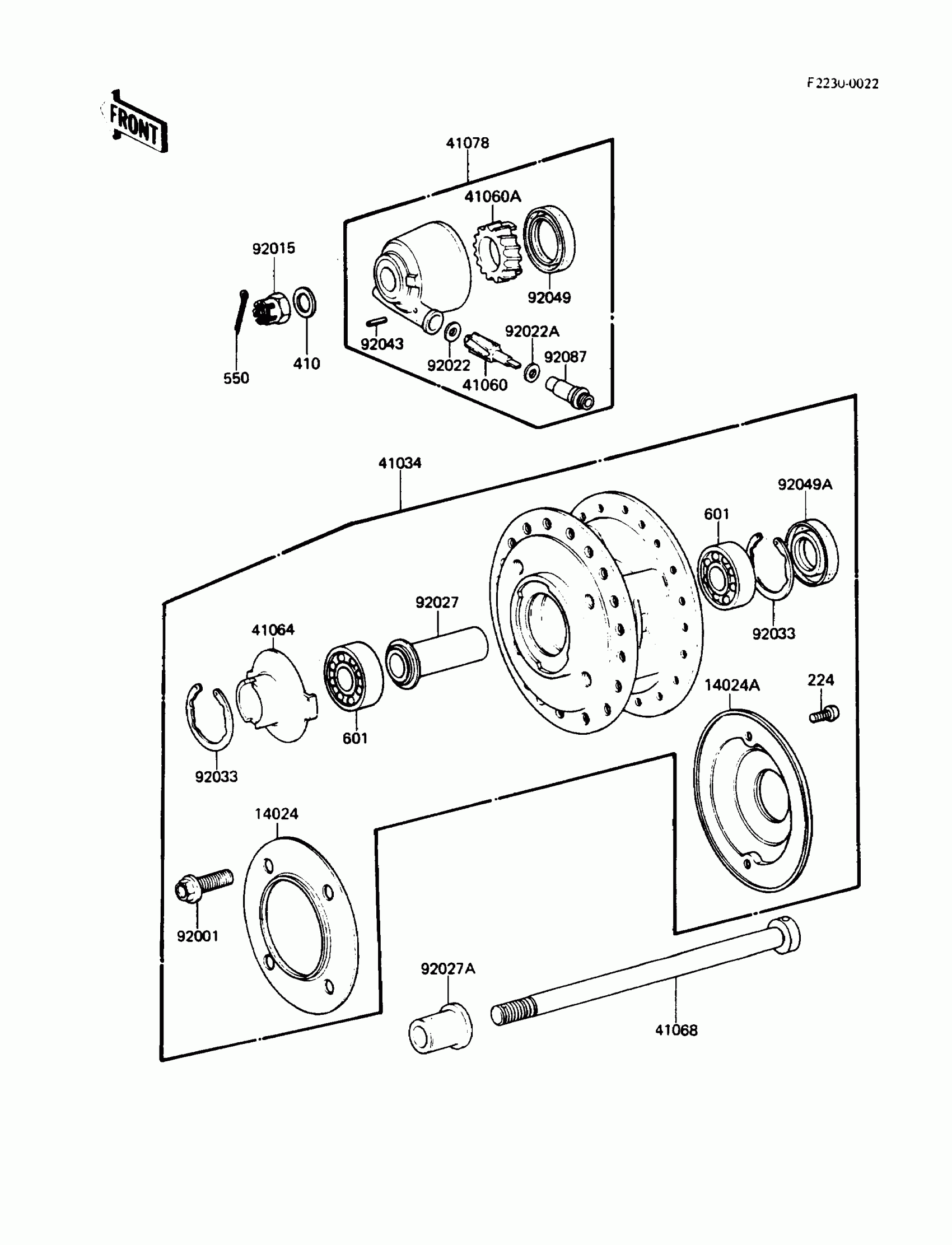

Kawasaki LTD Front Wheel Diagram

COVER,DUST,LH

COVER,DUST,RH

DRUM-ASSY,FR

GEAR-METER SCREW,9T

GEAR-METER SCREW,25T

RECEIVER-SPEEDOMETER

AXLE,FR,L=230

CASE-ASSY-METER GEAR

BOLT,FLANGED,10X30

NUT,CASTLE,14MM

WASHER,5.1X9X0.4

WASHER,5.1X10X1

COLLAR,L=55

COLLAR,L=30

RING-SNAP,42MM

PIN,SPRING

SEAL-OIL,BJN30427-C3

SEAL-OIL,BJN22425

BUSHING-METER GEAR

SCREW-PAN-WP-CROS

WASHER-PLAIN-SMALL,14MM

PIN-COTTER,3.0X25

BEARING-BALL,#6302C3
