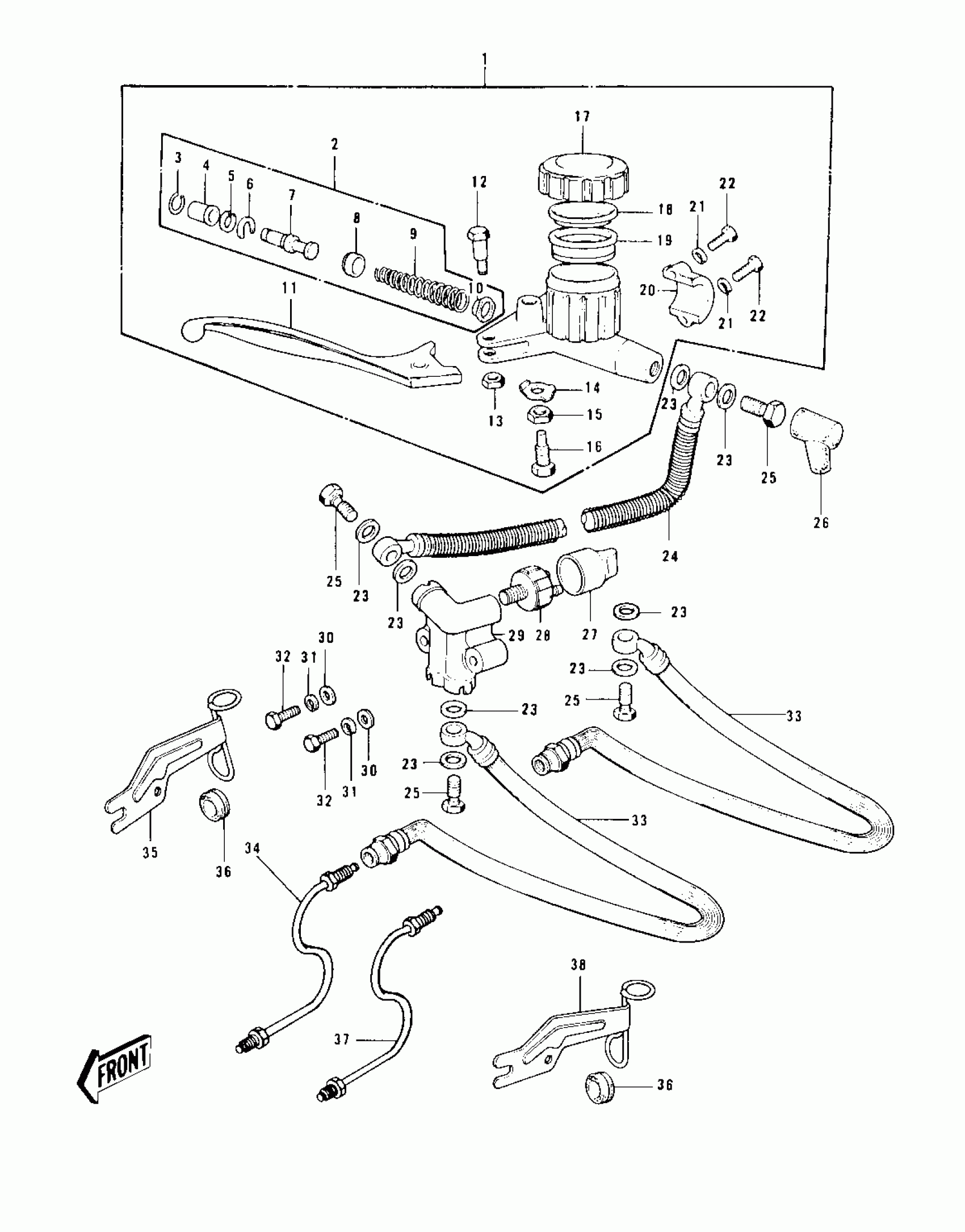

Kawasaki LTD FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,MASTER

43015-018

Unavailable

2

REPAIR ASY,MASTER CY

43073-005

$112.38

3

STOPPER-BOOTS

43025-001

Unavailable

4

BOOTS

43024-001

$7.20

5

CIRCLIP-TYPE-C,18MM

481J1800

$4.31

6

STOPPER-PISTON

43022-001

Unavailable

7

PISTON ASY, MSTR CYL

43072-002

$32.49

8

CUP, PRIMARY

43019-002

$25.99

9

SPRING ASSY, RETURN

43018-002

$39.46

10

VALVE ASSY, CHECK

43017-002

$8.33

11

LEVER,FRONT BRAKE

43029-003

$105.99

12

BOLT

43033-004

Unavailable

13

NUT 6MM

312B0600

$0.72

14

WASHER-LOCK,8MM

43031-001

Unavailable

15

NUT,8MM

311B0800

$0.67

16

BOLT,LEVER ADJUSTING

43030-003

Unavailable

17

CAP,OIL CUP

43026-003

Unavailable

18

PLATE-MASTER CYLINDE

43027-001

Unavailable

19

DIAPHRAGM

43028-003

Unavailable

20

HOLDER-MASTER CYL

43034-001

$39.96

21

WASHER PLAIN 6MM

411B0600

$2.84

22

BOLT HEX HEAD 6X25

110N0625

$5.46

23

WASHER,10.5X15X1.5

43067-001

$2.15

24

HOSE,FRONT BRAKE

43059-007

Unavailable

25

BOLT,OIL,L=23

92002-1888

$5.48

26

BOOT,DUST

49006-1041

$11.49

27

CAP,FRONT BRK SWITCH

11012-1037

Unavailable

28

SWITCH-FRONT BRAKE

43065-001

Unavailable

29

JOINT,FOUR WAY

43075-002

$42.47

30

WASHER PLAIN 6MM

411B0600

$2.84

31

WASHER SPRING 6MM

461F0600

$0.69

32

BOLT,HEX HEAD,6X45

110N0645

$3.58

33

HOSE,FRONT BRAKE

43059-011

Unavailable

34

PIPE,BRIDGE,L.H

43060-025

Unavailable

35

BRACKET-BRAKE HOSE

43063-001

Unavailable

36

GROMMET-HOSE BRACKET

43064-001

Unavailable

37

PIPE,BRIDGE,R.H

43060-026

Unavailable

38

BRACKET-BRAKE HOSE

43063-003

Unavailable
