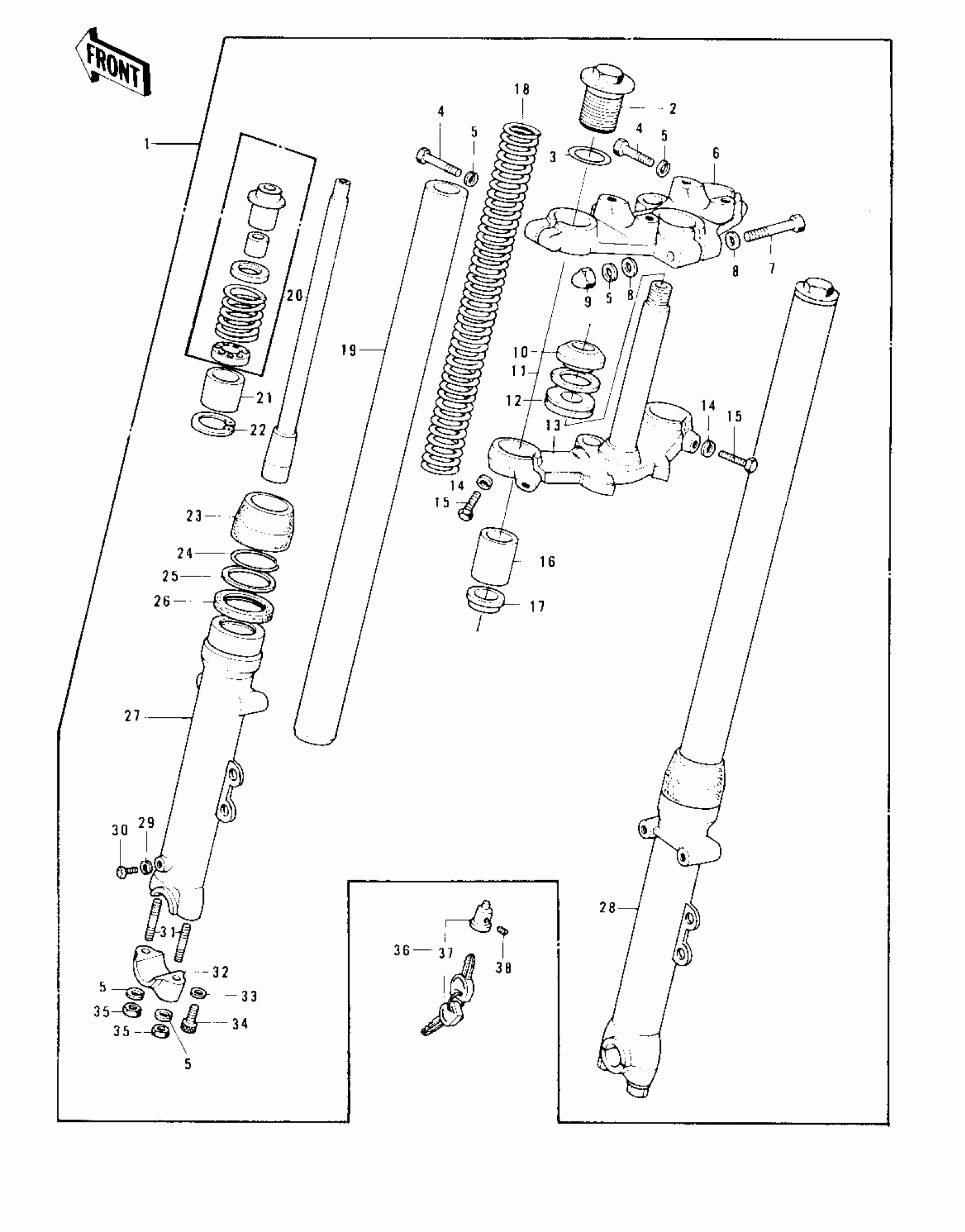

Kawasaki LTD FRONT FORK Diagram

#

Description
Price

1

FORK-FRONT

44001-175

$1,269.52

2

BOLT-FORK TOP

44062-003

Unavailable

3

'O' RING FORK TOP

44046-015

$9.40

4

BOLT-HEX HEAD.8M/M

44041-045

$25.59

5

WASHER SPRING 8MM

461F0800

$0.40

6

HEAD,STEERING

44039-073

Unavailable

7

BOLT-STEERING STEM HD

44041-042

Unavailable

8

WASHER PLAIN 8MM

410B0800

$0.93

9

NUT FUEL TANK FRONT

92020-007

Unavailable

10

RACE,STEERING STEM BEARING

92047-012

$14.60

11

WASHER,30.5X50X0.6

92022-231

$4.69

12

SEAL-OIL,STEERING STEM

92056-003

$8.86

13

STEM,STEERING

44037-098

$326.23

14

WASHER-SPRING,12MM

461F1200

$0.96

15

BOLT-HEX HEAD,12X36

92003-064

$25.59

16

SPACER

44028-039

$6.72

17

GUIDE-FORK SPRING

44029-019

Unavailable

18

SPRING,FORK

44026-071

$81.16

19

TUBE,FORK INNER

44013-037

$620.14

20

CYLINDER-FORK

44022-027

Unavailable

21

PISTON,FORK

44018-009

Unavailable

22

CIRCLIP,FORK PISTON

44044-019

Unavailable

23

DUST SHEILD,FORK

44010-032

$39.46

24

RING-SNAP,FORK OIL

92033-1100

$14.94

25

WASHER-OIL SEAL FIT

44043-044

$13.51

26

OIL SEAL,FORK

44009-024

$23.21

27

TUBE,RH,FORK OUTER

44006-063

$506.09

28

TUBE,LH,FORK OUTER

44005-065

$319.24

29

GASKET,FORK DRAIN PLUG

44045-002

$5.18

30

SCREW PAN HEAD 4X8

220B0408

$0.67

31

STUD,8X35

92004-1009

$6.38

32

HOLDER,FRONT AXLE

44063-014

Unavailable

33

GASKET

44045-057

$4.86

34

BOLT,SOCKET,FORK CYLINDER

44041-040

$6.57

35

NUT,LOCK,8MM

92015-1124

$5.42

36

LOCK,STEERING

27016-048

Unavailable

38

SCREW,SEAT LOCK

92014-016

Unavailable
