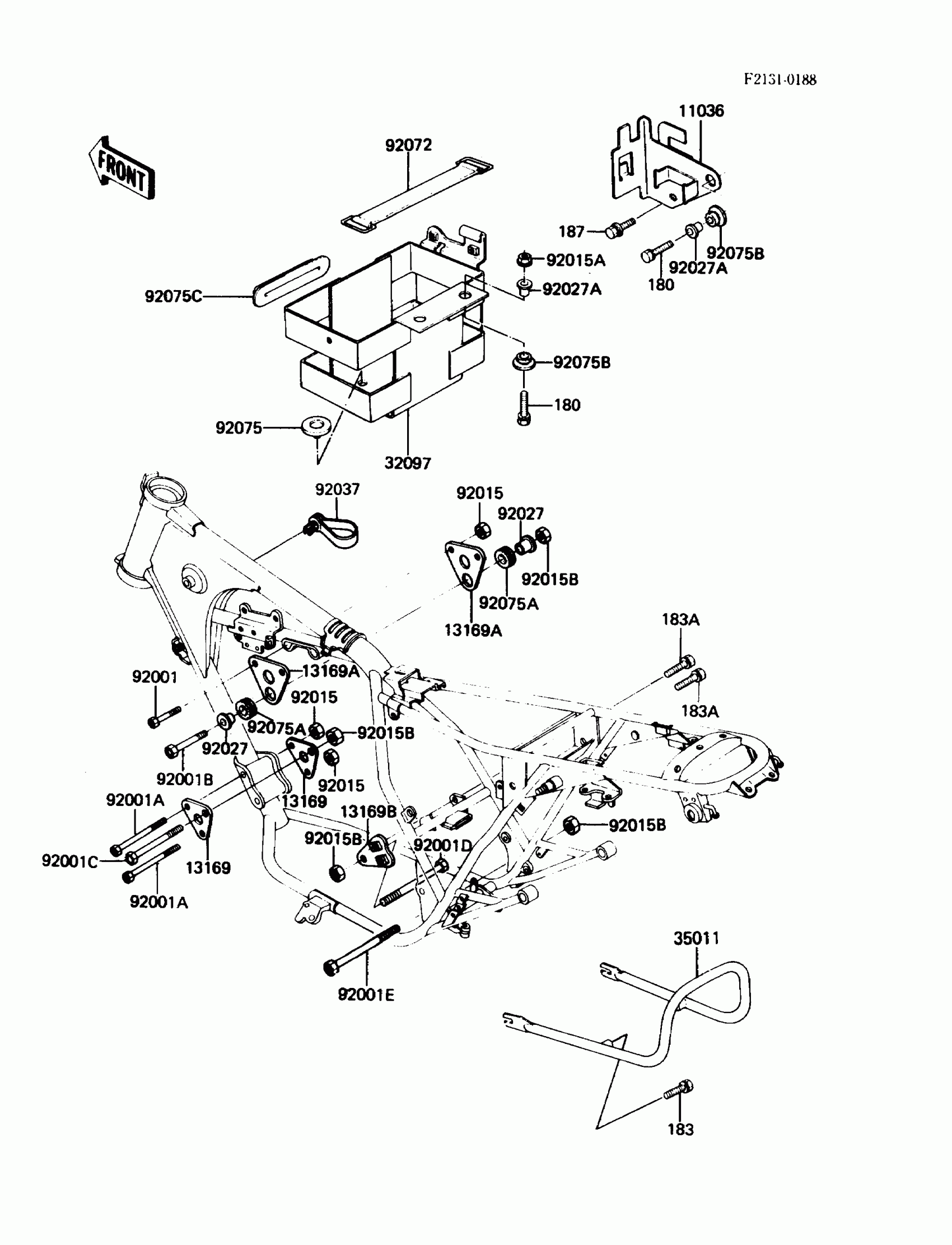

Kawasaki LTD Frame Fittings Diagram

#

Description
Price

11036

BRACKET-A,ELECTRO BASE

11036-1050

Unavailable

13169

PLATE,ENGINE,FRONT

13169-1111

Unavailable

13169A

PLATE,ENGINE,HEAD

13169-1112

Unavailable

13169B

PLATE,ENGINE,REAR-UPP

13169-1113

Unavailable

32097

CASE-BATTERY

32097-1053

$82.75

35011

STAY,RR

35011-1120

$91.63

92001

BOLT,FLANGED,8X50

92001-1580

$8.98

92001A

BOLT,FLANGED,8X110

92001-1597

Unavailable

92001B

BOLT,FLANGED,10X70

92001-1600

$10.37

92001C

BOLT,FLANGED,10X110

92001-1602

$11.07

92001D

BOLT,FLANGED,10X130

92001-1604

$7.38

92001E

BOLT,FLANGED,10X145

92001-1605

$13.78

92015

NUT,LOCK,8MM

92015-1124

$5.42

92015A

NUT,FLANGED,6MM

92015-1193

Unavailable

92015B

NUT,10MM

92015-1429

$6.88

92027

COLLAR,L=16.3

92027-1116

Unavailable

92027A

COLLAR

92027-194

$5.52

92037

CLAMP,SPEED,L=43

92037-1290

$7.34

92072

BAND,L=142.1

92072-006

$12.76

92075

DAMPER,RUBBER

92075-078

$4.39

92075A

DAMPER

92075-1086

Unavailable

92075B

DAMPER

92075-277

$2.84

92075C

DAMPER

92075-280

Unavailable

180

BOLT-UPSET-WS

180B0622

$1.12

183

BOLT-UPSET-WS-SMALL

183B0816

Unavailable

183A

BOLT-UPSET-WS-SMALL

183G0820

$4.14

187

BOLT 6X12

187B0612

$1.10
