1976 Kawasaki LTD Footrests/stand/brake Pedal Diagram

← All diagrams

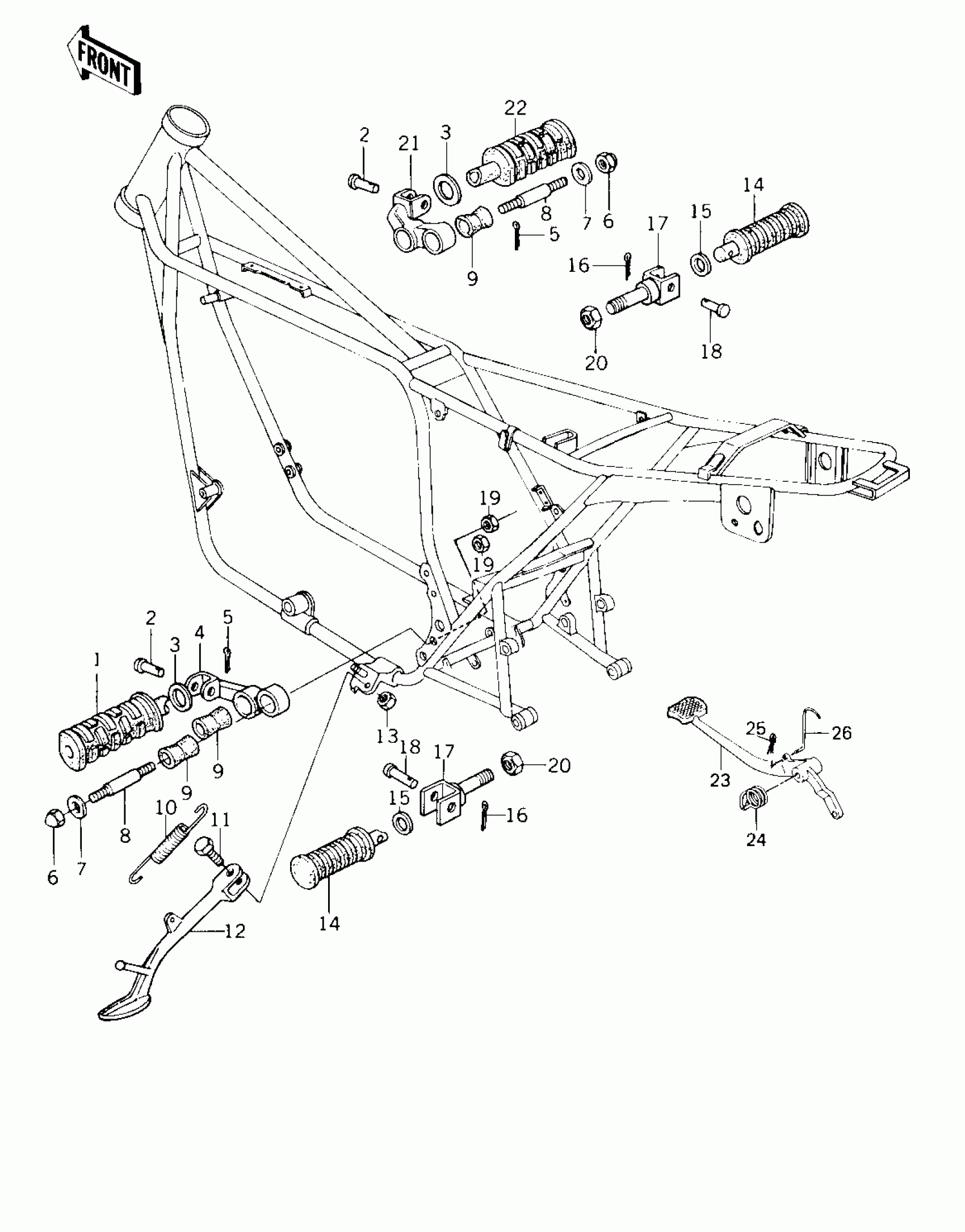

Find the part on the Footrests/stand/brake Pedal diagram for your 1976 Kawasaki LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki LTD Footrests/stand/brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR-FOOTREST,L.H

34028-011

1
Out of stock

2

PIN,8X31

92043-080

1
Out of stock

3

WASHER,25X36X2.3

92022-250

1
Out of stock

4

BRACKET,FOOTREST,L.H

34003-036

1
Out of stock

5

PIN COTTER 2.5X16

550D2516

1
Out of stock

6

NUT,CAP AND LOCK,8MM

92019-013

1
Out of stock

7

CAP,FOOTRESTBAR

92102-010

1
Out of stock

8

STUD,FOOTREST BAR FI

92004-048

1
Out of stock

9

DAMPER RUBBER,FOOTRST

92075-140

1
Out of stock

10

SPRING,STAND

34025-005

1
Out of stock

11

BOLT,SIDE STAND

92003-079

1
Out of stock

12

STAND-SIDE

34024-065

1
Out of stock

13

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

14

RUBBER,FOOTREST

92076-027

1
Out of stock

15

WASHER-PLAIN (OPT)

92022-199

1
Out of stock

16

PIN-COTTER,2.0X12

550D2012

1
Out of stock

17

BRACKET,REAR FOOTREST

33028-011

1
Out of stock

18

PIN,6X28

92043-1464

1
Out of stock

19

NUT-HEX-FINE,10MM

315B1000

1
Out of stock

20

NUT-HEX-FINE

315B1200

1
Out of stock

21

BRACKET,FOOTREST,R.H

34003-037

1
Out of stock

22

BAR-FOOTREST,R.H

34028-012

1
Out of stock

23

PEDAL,BRAKE

43001-073

1
Out of stock

24

SPRING,BRAKE PEDAL

43005-039

1
Out of stock

25

PIN COTTER 1.6X10

550D1610

1
Out of stock

26

HOOK,BRK LAMP SW SPR

27012-010

1
Out of stock
