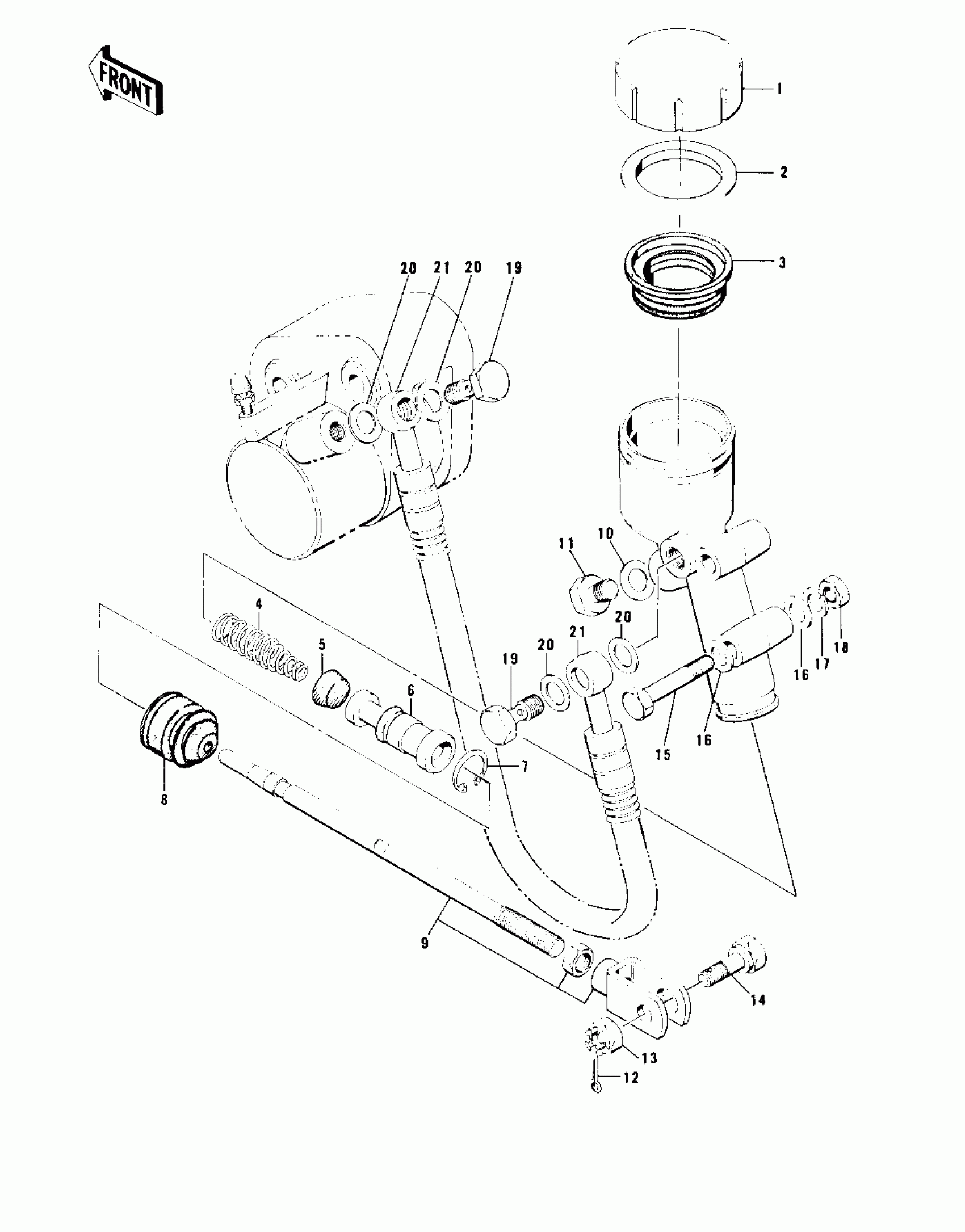

Kawasaki LTD REAR MASTER CYLINDER Diagram

#

Description
Price

1-11

CYLINDER ASSY,MASTER

43015-036

$264.94

1

CAP,OIL CUP

43026-003

Unavailable

2

PLATE-MASTER CYLINDE

43027-001

Unavailable

3

DIAPHRAGM

43028-003

Unavailable

4

SPRING ASSY, RETURN

43018-002

$40.22

5

CUP, PRIMARY

43019-002

$23.11

6

PISTON ASSY

43072-004

$86.25

7

CIRCLIP-TYPE-C,20MM

481J2000

$7.58

8

BOOTS

43024-002

Unavailable

9

ROD,BRAKE

43010-022

$67.29

10

'O'RING

43079-002

Unavailable

11

BOLT

43070-003

Unavailable

12

PIN-COTTER,2.0X20

550D2020

Unavailable

13

NUT CASTLE

321B0800

Unavailable

14

BOLT,MASTER CYL ROD

92003-210

$3.15

15

BOLT,10X45

92001-1182

Unavailable

16

WASHER PLAIN 8MM

410B0800

Unavailable

17

WASHER SPRING 8MM

461F0800

Unavailable

18

NUT-HEX-SMALL,8MM

317B0800

Unavailable

19

BOLT,OIL,L=23

92002-1888

$4.15

20

WASHER,10.5X15X1.5

43067-001

$1.57

21

HOSE,REAR BRAKE

43059-030

Unavailable
