Description

Price

34003

HOLDER-STEP,FR,LH

34003-1099

$82.60

34003A

HOLDER-STEP,FR,RH

34003-1117

$82.60

34003B

HOLDER-STEP,RR

34029-008

$28.84

34028

STEP,RR,LH

34028-1009

$35.18

34028A

STEP,RR,RH

34028-1010

$35.18

34028B

STEP,FR,LH

34028-1028

Unavailable

34028C

STEP,FR,RH

34028-1029

Unavailable

92015

NUT,FLANGED,10MM

92015-1428

$5.00

92022

WASHER,22.5X30X2.6

92022-181

Unavailable

92022A

WASHER,25X36X2.3

92022-250

$5.00

92043

PIN,6X28

92043-079

$8.10

92043A

PIN,8X35.5

92043-115

$9.51

92092

BUSHING,MUFFLER FITT

92092-010

$16.18

130

BOLT-FLANGED

130G1225

$7.20

550

PIN-COTTER,2.0X12

550D2012

$1.11

550A

PIN-COTTER,2.5X15

550D2515

$0.47

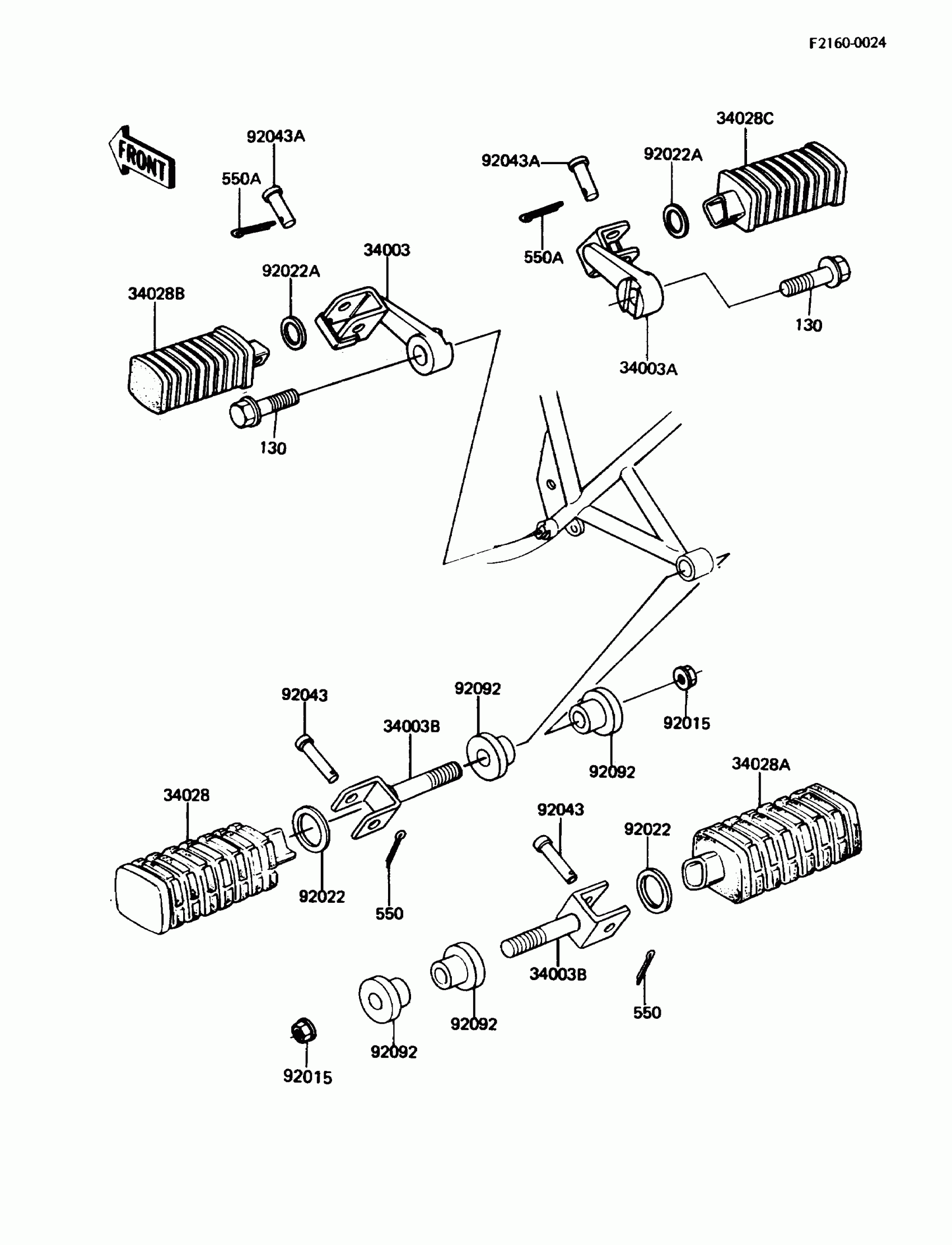

Kawasaki LTD Footrests Diagram

HOLDER-STEP,FR,LH

HOLDER-STEP,FR,RH

HOLDER-STEP,RR

STEP,RR,LH

STEP,RR,RH

STEP,FR,LH

STEP,FR,RH

NUT,FLANGED,10MM

WASHER,22.5X30X2.6

WASHER,25X36X2.3

PIN,6X28

PIN,8X35.5

BUSHING,MUFFLER FITT

BOLT-FLANGED

PIN-COTTER,2.0X12

PIN-COTTER,2.5X15
